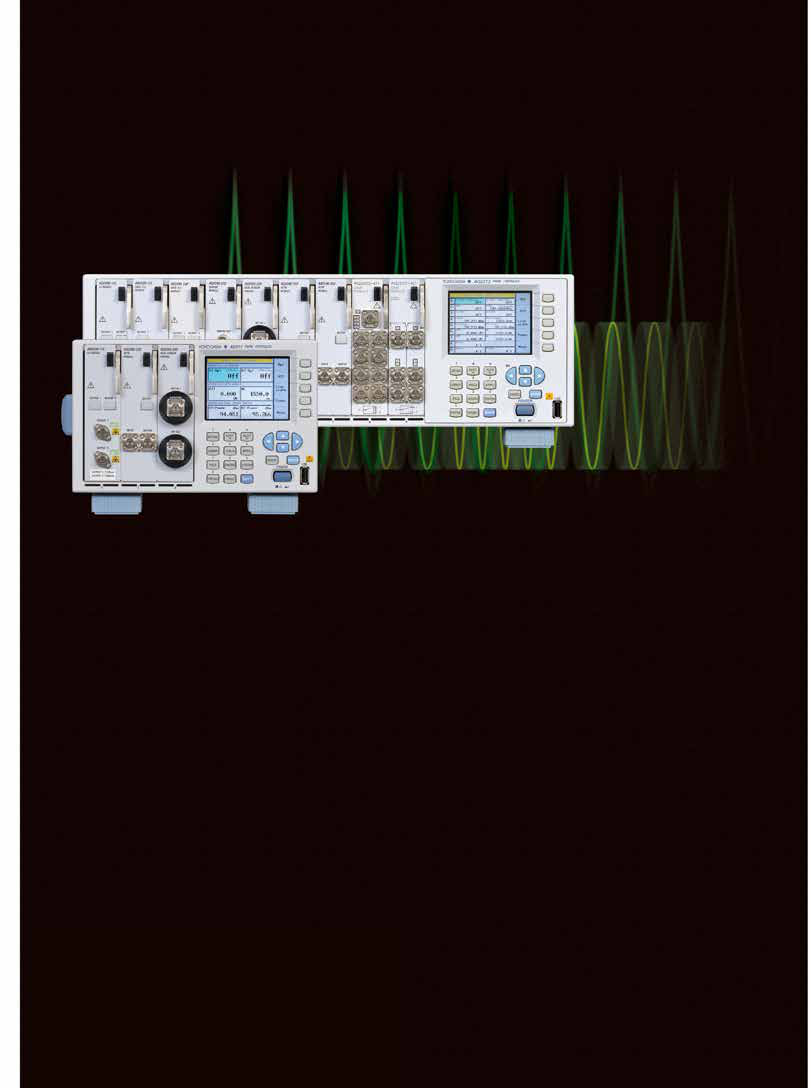

AQ2200 Series
The AQ2200 Series is a versatile measurement system designed for evaluating optical components and optical transmission systems. It offers various measurement modules, including light sources, optical power meters, optical attenuators, and optical switches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) AQ2200-421 1x2 | ≤1.4 |
| Insertion Loss (dB) AQ2200-421 2x2 | ≤1.8 |
| Insertion Loss (dB) AQ2200-411 1x4 | ≤1.8 |
| Insertion Loss (dB) AQ2200-411 1x8 | ≤2.0 |
| Insertion Loss (dB) AQ2200-412 1x16 | ≤2.0 |
| Optical Isolation (dB) AQ2200-421 1x2 | ≥45 |
| Optical Isolation (dB) AQ2200-421 2x2 | ≥50 |
| Optical Isolation (dB) AQ2200-411 1x4 | ≥50 |
| Optical Isolation (dB) AQ2200-411 1x8 | ≥50 |
| Optical Isolation (dB) AQ2200-412 1x16 | ≥50 |
| Fiber Type AQ2200-421 | SMF/MMF |
| Fiber Type AQ2200-411 | SMF/MMF |
| Fiber Type AQ2200-412 | SMF/MMF |
| Optical Power Measurement Range AQ2200-212 | 800-1700nm |
| Optical Power Measurement Range AQ2200-222 | 800-1700nm |
| Optical Power Measurement Range AQ2200-215 | 700-1660nm |
| Optical Power Measurement Range AQ2200-232 | 800-1700nm |
| Optical Power Measurement Range AQ2200-242 | 400-1100nm |
| Optical Power Measurement Accuracy AQ2200-212 | ±2.5% |
| Optical Power Measurement Accuracy AQ2200-222 | ±2.5% |
| Optical Power Measurement Accuracy AQ2200-215 | ±3% |
| Optical Power Measurement Accuracy AQ2200-232 | ±1.8% |
| Optical Power Measurement Accuracy AQ2200-242 | ±2.5% |
| Optical Power Measurement Resolution AQ2200-212 | 0.002dB |
| Optical Power Measurement Resolution AQ2200-222 | 0.002dB |
| Optical Power Measurement Resolution AQ2200-215 | 0.003dB |
| Optical Power Measurement Resolution AQ2200-232 | 0.025dB |
| Optical Power Measurement Resolution AQ2200-242 | 0.04dB |
| Light Source Wavelength Range AQ2200-112 | 1310nm, 1550nm, 1625nm, 1650nm |
| Light Source Wavelength Range AQ2200-131 | 196.25-191.50THz |
| Light Source Wavelength Range AQ2200-132 | 195.90-186.35THz |

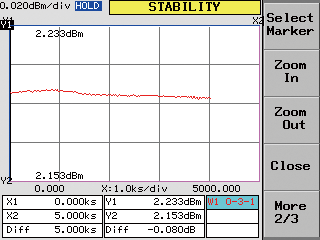

| Light Source Power Stability AQ2200-112 | ±0.005dB |
| Light Source Power Stability AQ2200-131 | ±0.3GHz |
| Light Source Power Stability AQ2200-132 | ±0.3GHz |
| Light Source Output Power AQ2200-112 | +10dBm |
| Light Source Output Power AQ2200-131 | +15dBm |
| Light Source Output Power AQ2200-132 | +15dBm |
| Optical Attenuation Range AQ2200-312 | 0-60dB |
| Optical Attenuation Range AQ2200-332 | 0-45dB |
| Optical Attenuation Accuracy AQ2200-312 | ±0.1dB |
| Optical Attenuation Accuracy AQ2200-332 | ±0.1dB |
