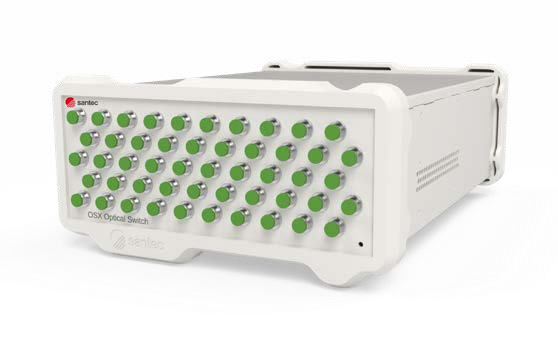

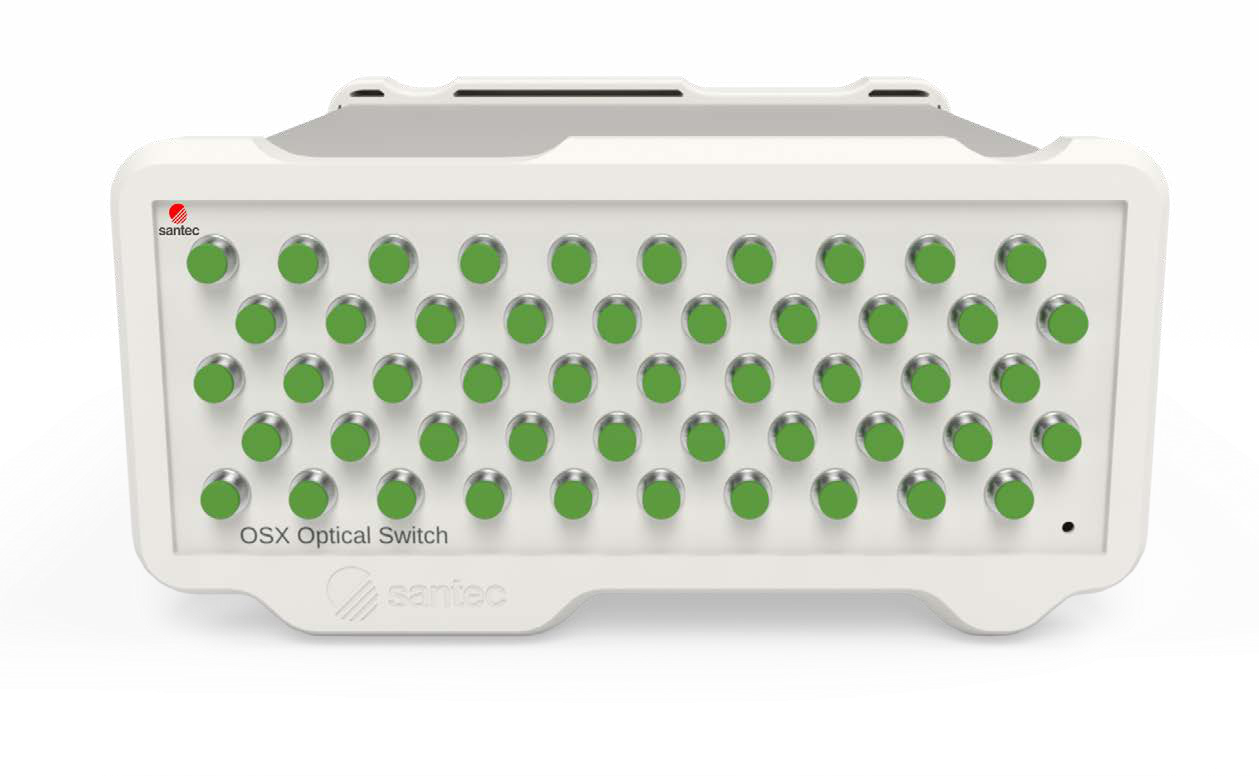

OSX-150 MEMS Optical Switch

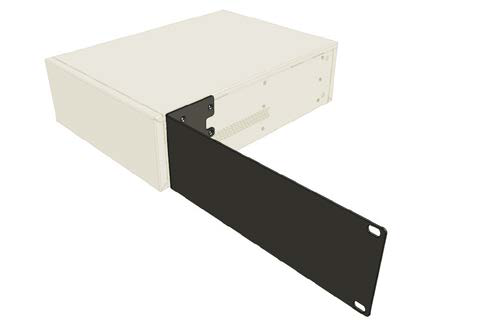

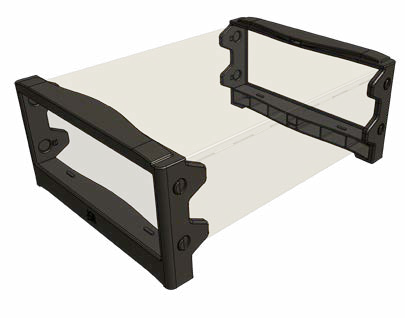

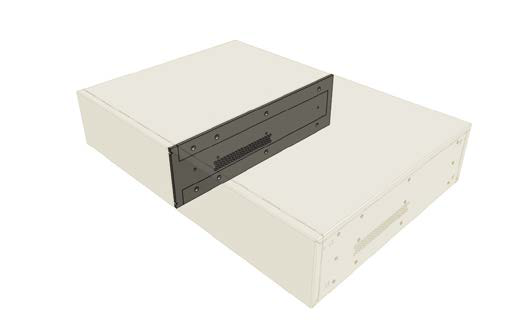

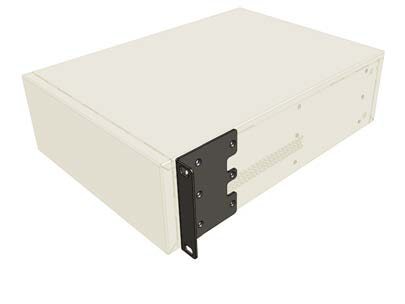

The OSX-150 Optical Switch features the latest in MEMS technology for high-speed applications. With excellent repeatability and low loss, the OSX-150 is ideally suited for automation applications where switching time needs to be minimized or space is at a premium. Available in 9 μm single-mode fiber, custom configurations and path routings are available upon request. The switch can be controlled through USB or Ethernet and the front panel bulkheads are fitted with FC, SC or LC connector types. Optional accessories include 2U rack short ears, 2U rack long ear filler plates, 2U chassis connector plates and 2U rubber bezels. Each unit ships with an AC power cord and a test report.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | Single-mode, 9/125 |
| Wavelength Range (nm) | 1250 to 1670 |
| Channel Count (1xN) | <4 / <16 / <24 / <36 |
| Insertion Loss (dB) 1xN<4 | <1.0 |
| Insertion Loss (dB) 1xN<16 | <1.2 |
| Insertion Loss (dB) 1xN<24 | <1.5 |
| Insertion Loss (dB) 1xN<36 | <2.0 |
| Backreflection (dB) | <-50 |
| PDL (dB) | <0.1 |
| Repeatability (dB) | ±0.01 |
| Crosstalk (dB) | <-50 |
| Maximum Input Power (dBm) | 27 |
| Switch Life | No wear out |
| Switching Time (ms) | <10 |
| Remote Interface | USB or Ethernet |
| Display | Optional 5" touch screen |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (VA) | 60 maximum |
| Max Channel Count with 5" Touchscreen, FC (1H/2H/2F) | -/12/36 |
| Max Channel Count with 5" Touchscreen, SC duplex (1H/2H/2F) | N/A/18/36 |
| Max Channel Count with 5" Touchscreen, LC quad (1H/2H/2F) | -/36/36 |
| Max Channel Count without Display, FC (1H/2H/2F) | 18/36/36 |
| Max Channel Count without Display, SC duplex (1H/2H/2F) | 18/36/36 |
| Max Channel Count without Display, LC quad (1H/2H/2F) | 36/36/36 |
| Unit Dimension W x H x D (cm) 1H | 22.5 x 4.5 x 32.5 |
| Unit Dimension W x H x D (cm) 2H | 22.5 x 9 x 32.5 |
| Unit Dimension W x H x D (cm) 2F | 43.5 x 9 x 32.5 |
| Unit Weight (kg) 1H | 6 |
| Unit Weight (kg) 2H | 8 |
| Unit Weight (kg) 2F | 12 |
| Shipping Box Dimensions W x H x D (cm) 1H | 36.5 x 39 x 53 |
| Shipping Box Dimensions W x H x D (cm) 2H | 36.5 x 39 x 53 |
| Shipping Box Dimensions W x H x D (cm) 2F | 36.5 x 36 x 53 |
| Volumetric Weight (kg) 1H | 15 |
| Volumetric Weight (kg) 2H | 15 |
| Volumetric Weight (kg) 2F | 13 |
| Operating Temperature (°C) | 0 to 55 |
| Storage Temperature (°C) | -40 to 70 |
| Humidity (non-condensing) | Maximum 80% RH at 40°C |
| Outputs | 2/4/8/12/24/36 |
| Connector Type | FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC |
| Chassis Size | 1H (1U half rack), 2H (2U half rack), 2F (2U full rack) |
| Connector Position | Front panel bulkhead / front pigtails / rear pigtails |
| Notes | Excluding connectors; at 1310 ±10 and 1550 nm, add 0.5dB over full wavelength range; repeatability at constant temperature; zero switching time when the signal stabilizes within ±0.02dB |
