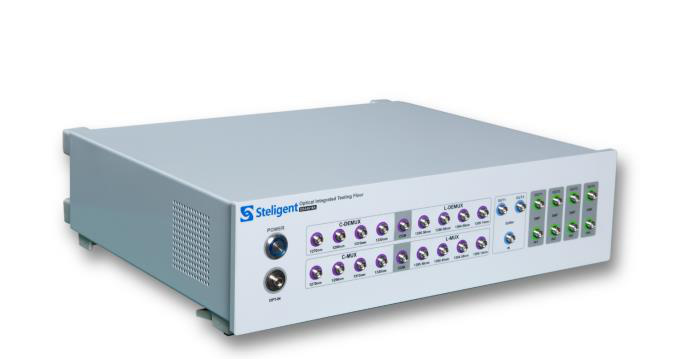

OSA4616A Optical Integrated Testing Floor
The OSA4616A is a high-performance, cost-effective optical integrated testing floor designed for 200G/400G TOSA/ROSA components R&D, manufacturing environments, and field installations. It features precision variable attenuators, embedded data processing, and remote control capabilities via USB interface, making it ideal for characterizing high precision, repeatability, and production testing of AOC and electro-optical modules.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (H×W×D) | 88.9mm×426mm×350mm |
| Weight | Approx. 20kg |
| Recommended Recalibration Period | 24month |
| Operating Temperature | +0°C to +70°C |
| Operating Humidity | 15% to 95%, non-condensing |
| Altitude | 2000m |
| Warm-up Time | 10minutes |
| Interfaces | USB interfaces |
| Power Consumption | AC90-250V, 50-60Hz, 20Wmax |
Applications
Key Features
