ODMS-3 Optical Density Spectrometer
Optical Spectrum Analyzers

ODMS-3 Optical Density Spectrometer

Supplier
Gzbiaoqi
Part Number
ODMS-3
Category
Optical Spectrum Analyzers
Origin
China

The ODMS-3 optical density spectrometer can quickly measure the optical density value of sample coatings, with a measurement density range up to OD6. The device can quickly measure the OD value at a specific single wavelength or single band, and can also perform transmittance measurement on optical elements, and features rapid measurement of spectral transmittance for small-aperture samples, with a minimum aperture of 1mm. It features high-precision measurement, high-sensitivity adjustment, fast response, and simple operation. It is mainly used for measuring the optical density of ink layers on mobile phones and display panels, and the transmittance of small-hole ink.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The ODMS-3 optical density spectrometer can quickly measure the optical density value of sample coatings, with a measurement density range up to OD6. The device can quickly measure the OD value at a specific single wavelength or single band, and can also perform transmittance measurement on optical elements, and features rapid measurement of spectral transmittance for small-aperture samples, with a minimum aperture of 1mm. It features high-precision measurement, high-sensitivity adjustment, fast response, and simple operation. It is mainly used for measuring the optical density of ink layers on mobile phones and display panels, and the transmittance of small-hole ink.

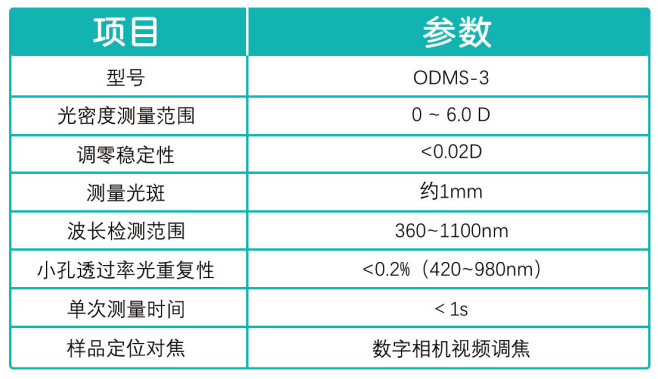

Specifications

ParameterValue
Optical Density Measurement Range0~6.0 D
Zeroing Stability<0.02D
Measurement SpotApprox. 1 mm
Wavelength detection range360~1100 nm
Small-Aperture Transmittance Repeatability [420~980nm]<0.2 %(420~980 nm)
Single Measurement Time<1 s
Sample Positioning and FocusingDigital camera video focusing

Key Features

1. Maximum density measurement range up to 6 OD; 2. Can simultaneously measure optical density in the UV and VIS regions; 3. Integrates optical density and small-aperture transmittance measurement; 4. Fast instrument response, instant measurement results; 5. Supports measurement of small-aperture samples ≥1mm; 6. Uses digital video focus positioning for accurate measurement of small areas.
