ADMS Angle-Resolved Spectrometer (ADMS-VIS)

Supplier

Gzbiaoqi

Part Number

ADMS-VIS

Overview

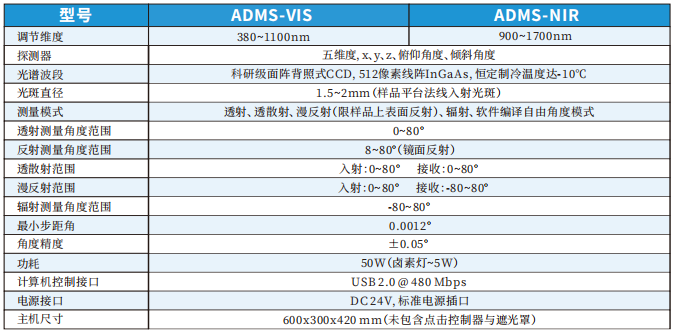

Specifications

Parameter	Value
Spectral Band	380~1100 nm
Adjustment Dimensions	Five dimensions, x, y, z, pitch angle, tilt angle
Detector [Constant cooling temperature down to -10°C]	Research-grade area-array back-illuminated CCD, 512-pixel linear-array InGaAs, constant cooling temperature down to -10 °C
Spot Diameter [Normal-incidence spot on sample platform]	1.5~2 mm (normal-incidence spot on sample platform)
Measurement Mode	Transmission, transmission scattering, diffuse reflection (limited to reflection from the upper surface of the sample), radiation, software-compiled free-angle mode
Transmission Measurement Angle Range	0~80 °
Reflection Measurement Angle Range [Specular Reflection]	8~80 ° (specular reflection)
Transmission Scattering Range	Incidence: 0~80 °;Reception: 0~80 °
Diffuse Reflection Range	Incidence: 0~80 °;Reception: -80~80 °
Radiation Measurement Angle Range	-80~80 °
Minimum Step Angle	0.0012 °
Angle Accuracy	±0.05 °
Power Consumption	50 W (halogen lamp ~5 W)
Computer Control Interface [480 Mbps]	USB2.0@480 Mbps
Power Interface	DC24V, standard power socket
Main unit dimensions [Excluding click controller and light shield]	600 mm x300 mm x420 mm (excluding click controller and light shield)

Key Features

1. Full-angle measurement;;2. Ultra-wide spectral range spectral measurement and analysis;;3. Multiple measurement modes;;4. High-precision intelligent motor adjustment;;5. Freely compiled measurement, automatic rotating batch measurement;;6. Multi-dimensional fine adjustment of sample x, y, z, pitch, tilt;;7. Good expandability: the instrument can add an external laser interface and can be loaded with optical components, enriching the measurement content.

Datasheet

Please provide your email to download the datasheet.

Your name

Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

Gzbiaoqi

View Supplier →

Guangzhou Biaoqi Optoelectronics Technology Development Co., Ltd. was founded in 2005 and is an enterprise founded by leading entrepreneurial talents in Guangzhou Development District. It is a national high-tech enterprise and a national specialized and sophisticated "little giant" enterprise focusing on spectral rapid detection system integration and instrument development. The company integrates design, R&D, manufacturing, sales, and after-sales service, with spectral rapid detection and analysis technology as its core. Through high-speed acquisition, processing, and algorithm analysis of spectral data, it provides rapid, non-destructive, online, fully automatic detection equipment and high-end quality inspection and analysis solutions for various industries. Biaoqi Optoelectronics has established the Guangdong Provincial Engineering Technology Research Center for Rapid Spectral Measurement. Its products cover many fields such as optical component inspection, semiconductors, new energy vehicles, environmental monitoring, solar photovoltaics, new materials, biology, optoelectronics, and chemicals. Relying on strong independent R&D capabilities and independent demonstrative diversified operational advantages, Biaoqi Optoelectronics has achieved rapid development in recent years and is a leader in the domestic spectral rapid detection application industry. It has obtained numerous qualifications and honors, including national specialized and sophisticated "little giant" enterprise, national high-tech enterprise, Guangdong Province specialized and sophisticated enterprise, Guangdong Province intellectual property demonstration enterprise, and Guangzhou Development District gazelle enterprise. Under the guidance of its core corporate values of "prudent thinking, earnest practice, innovation, and win-win", Biaoqi Optoelectronics continuously accumulates experience, builds a domestic independent brand, and customizes spectral detection application solutions for customers, developing spectral rapid detection and analysis instruments suitable for different application fields. These include the optical component inspection industry: optical component spectral sorting instruments, reflectance spectral analyzers, transmittance spectral analyzers, etc.; the jewelry identification industry: UV-visible spectral analyzers (jewelry detectors), jewelry luminescence imaging analyzers, etc.; and the scientific research field: quantum efficiency spectral analysis systems, portable Raman spectral analyzers, photoluminescence spectral analyzers, etc. Biaoqi Optoelectronics' non-destructive rapid spectral analyzers have significant advantages, featuring high efficiency, speed, and accuracy, which can help users greatly improve detection efficiency and assist the high-quality development of application industries. At the same time, Biaoqi Optoelectronics is the South China general agent for Ocean Optics, the inventor of micro fiber optic spectrometers, an internationally renowned enterprise. With the rapid development of science and technology, Biaoqi Optoelectronics keeps pace with technological progress and the development of the times, forging ahead on the road of rapid spectral detection, striving for perfection.
