OSA4615A Optical Integrated Testing Floor

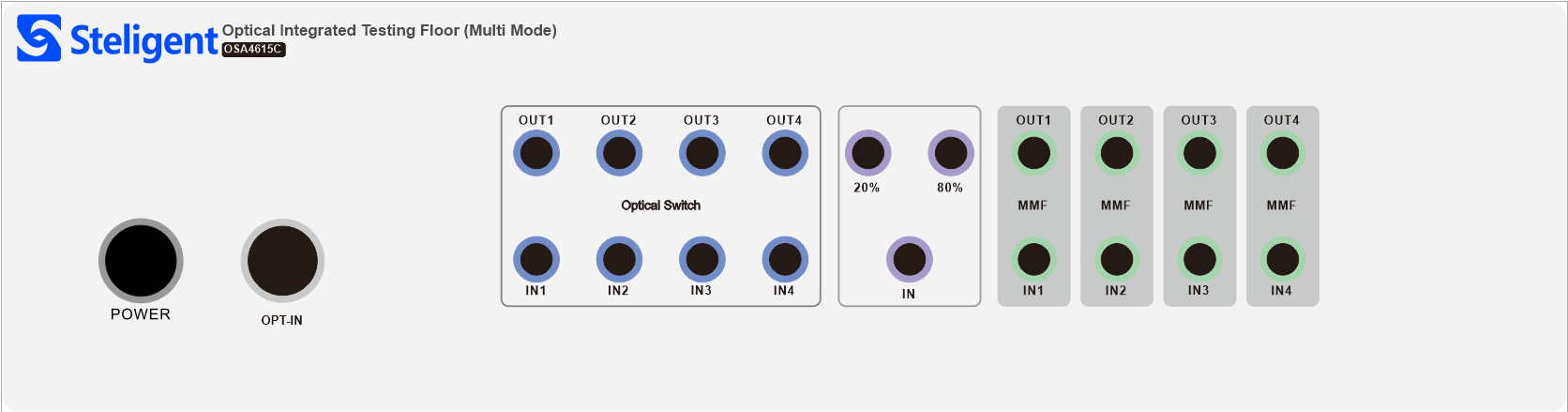

The OSA4615A Optical Integrated Testing Floor is a high-performance, cost-effective solution designed for testing TOSA/ROSA components in R&D and manufacturing environments, as well as field installations. It features a 4×4 multi-mode optical switch, 4 channels MMF optical attenuator, and a 20/80 multi-mode optical splitter, providing precise and repeatable measurements.
Save to Favorites

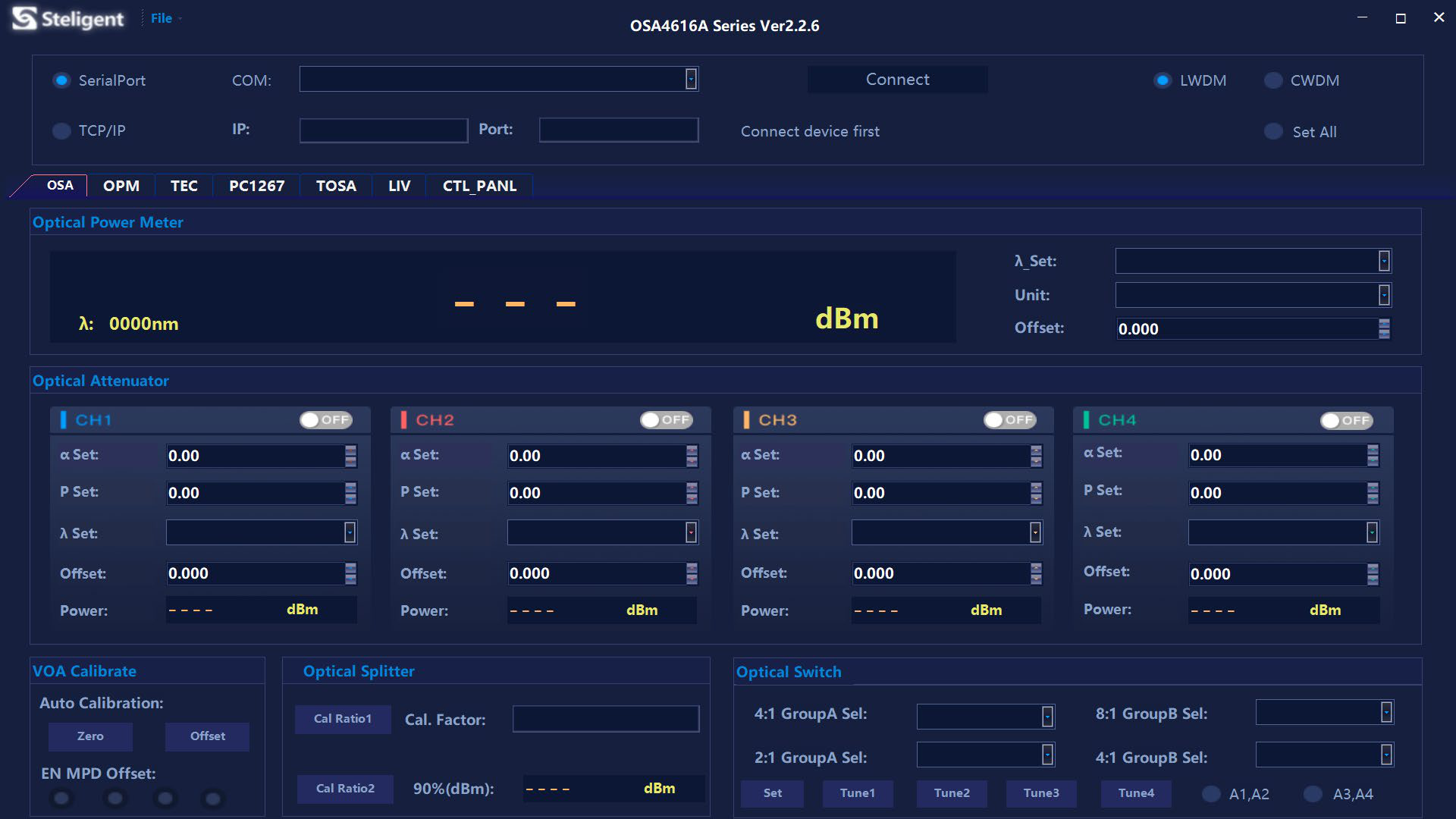

Overview
Specifications
| Parameter | Value |
|---|---|
| Switching Channel | 4×4 |
| Wavelength Range (nm) | 850 |
| Test Wavelength (nm) | 850/980 |
| Insertion Loss (dB) | ≤8.4/2.0 |
| Repeatability (dB) | ±0.1 max.(MM) |
| Return Loss (dB) | -20 max.(MM) |
| Cross Talk (dB) | ≥50 |
| Wavelength Dependent Loss (dB) | ≤0.25 |
| Polarization Dependent Loss (dB) | ≤0.2 |
| Temperature Dependent Loss (dB) | ≤0.25 |
| Switching Time (ms) | ≤10 |
| Optical Power Handling (mW) | ≤500 |
| Power Consumption (uW) | 100 |
| Durability (Cycles) | 1 Billion Min. |
| Operating Temperature (°C) | 0~+50 |
| Storage Temperature (°C) | -20~+65 |
| Calibrated Wavelength (nm) | 850,980,1310,1490,1550,1610 |
| Type of Detector | InGaAs |
| Measuring Range (dBm) | +5~75 |
| Uncertainty | ±3% |
| Measuring Unit | dB/dBm/xW |
| Display Resolution | 0.01/0.001 |
| Working Temperature (°C) | -20~+70 |
| Splitting Ratio | 20:80 |
| Excess Loss (dB) | 1.0 typ., 1.5 max. |
| Directivity (dB) | ≥35 |
| Attenuation Range (dB) | 0~40 |
| Tuning Resolution (dB) | 0.1 max. |
| Tuning Speed (ms) | 3500 max. |
| Flatness (dB) | ±0.1 max. |
| Absolute Accuracy (dB) | ±0.2 max.(MM) |
| Optical Power (mW) | 300 max. |
