Inline near-infrared analyzer

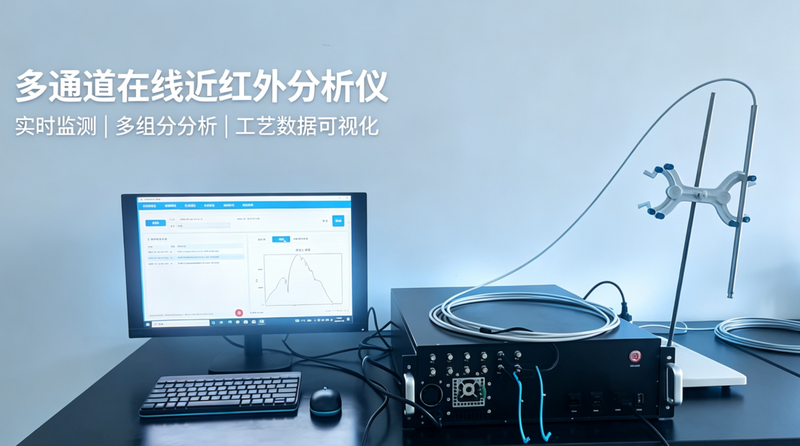

The Jianzhi® online near-infrared analyzer provides rapid, nondestructive qualitative and quantitative sample analysis. Advanced optical components and an integrated cooled near-infrared spectrometer deliver high sensitivity, high signal-to-noise ratio and broad spectral coverage. In chemical production, it analyzes key reaction components, including raw materials, products and intermediates, in real time to support process control and improve product quality.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 技术原理 | Near-infrared spectroscopy |
| 测量方式 | Transflectance probe; immersion testing |
| 检测通道数 | Single channel and6 channels as standard; other channel counts customizable |
| 检测灵敏度 | Sensitivity limit 0.1% |

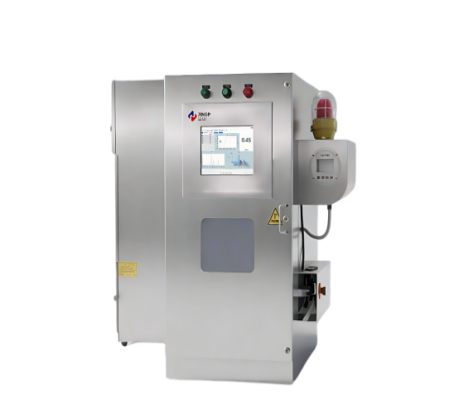

| Equipment安装方式 | Chassis installation:485 wide*165mm high*525mm deep; explosion-proof cabinet installation:800mm deep×900mm wide×1300mm high |
| 探头安装方式 | Flange mounting |
| 用电要求 | Rated voltage:220V AC; supply frequency:50~60 Hz; rated power 3000W |
| 使用温度 | Chassis installation: 5~35°; explosion-proof cabinet installation: -20~50° |
| 通讯方式 | RS485 and RJ45 Ethernet ports with the ModBus protocol; compatible with multiple types of industrial control systems and able to return results to the control system |
| 防爆柜防爆等级 | ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db |
| 相对湿度 | 0~90%RH |
| Equipment功率 | 3000 W (max) 300 W (typical running) |
| 预热时间 | ＜60 min |
