Miniature spectrometer Optical Spectrum Analyzer
Based on MEMS tunable filter technology,Mini Optical Spectrum Analyzer (OSA) has the reliable repeatability and stability for optical spectrum grabbing.Compact size and USB interface is particularly suitable for laboratory applications.
Save to Favorites
Overview

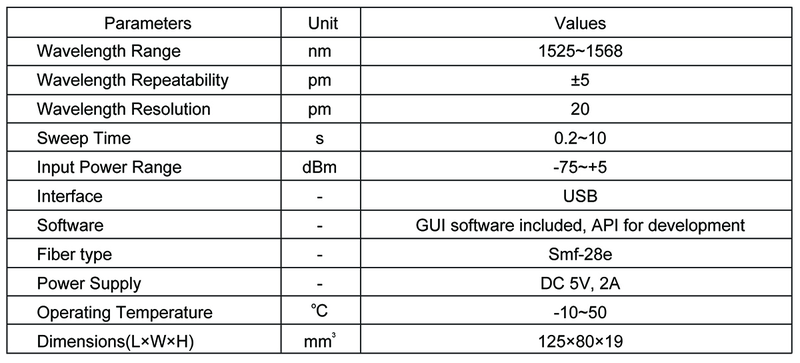

Specifications
| Parameter | Value |
|---|---|
| 波长范围 | 1525~1568 nm |
| 波长重复定位精度 | ±5 pm |
| 波长分辨率 | 20 pm |
| 扫描时间 | 0.2~10 s |
| 输入功率范围 | -75~+5 dBm |
| 接口 | USB |
| 软 Items | GUI software included,API for development |
| 光纤类型 | Smf-28e |
| 电源 | DC5V,2A |
| 工作温度 | -10~50 °C |
| 外形尺寸(L×W×H) | 125x80x19 |
