Inline near-infrared analyzer NI2010PAT

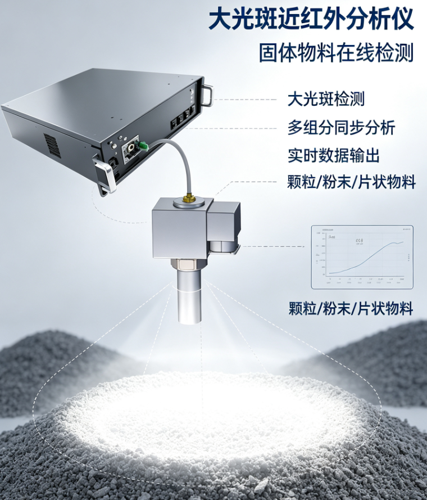

The Jianzhi® NI2010PAT online near-infrared analyzer serves chemical, pharmaceutical, polymer and other process industries. Using overtone and combination-band absorption of hydrogen-containing groups such as C–H, N–H and O–H, together with chemometric calibration models, it provides in-situ, continuous, nondestructive quantitative analysis of material composition. A large-spot diffuse-reflectance probe of ≥20 mm and an integrated cooled near-infrared spectrometer provide high sensitivity and signal-to-noise ratio. It is designed for 7×24-hour chemical-plant operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 检测Attachment | Large-spot diffuse-reflection probe |
| 通道 | Single/dual channel as standard; expandable to a maximum of 8 channels |
| 检测原理 | Near-infrared diffuse-reflectance/transflectance spectra + chemometric model |
| 光谱范围 | 900 ~ 1700 nm （900 ~ 2500 nm optional ） |
| 光谱仪 | Cooled InGaAs array (256/512 pixels); fixed grating, no moving parts |
| 响应时间 | ms-level spectral response; fastest result output ≤0.5 s |
| 大光斑探头-光斑直径 | ≥20 mm; covers more material for greater representativeness |
| 大光斑探头-探头材质 | 316L stainless steel probe; sapphire optical window |
| 大光斑探头-安装方式 | Can be installed at a flanged viewing window, a conveying pipe or above a screw conveyor |
| 大光斑探头-光源 | Pluggable light source with a lifetime>18000 hours; replacement can be completed in10 minutes |
| 检出限 | Below0.1% (depending on the metric and material) |
| 工作温度 | -10 ℃ ~ 60 ℃ |
| 防护等级 | ≥ IP65 |
| 防爆等级 | Ex db eb ib pzc IIC T4 Gc |
| 数据通讯 | 4-20 mA, Modbus485/232 and OPC UA; interfaces with DCS / MES / LIMS |
| 软 ItemsFunction | Online monitoring, spectrum acquisition, trend display and model research |
