4x25G ROSA EVB Series
The 4x25G ROSA EVB Series is a cost-effective and precise testing system designed for evaluating 4x25G ROSA components. It includes a main controller and evaluation board, enabling flexible and efficient testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

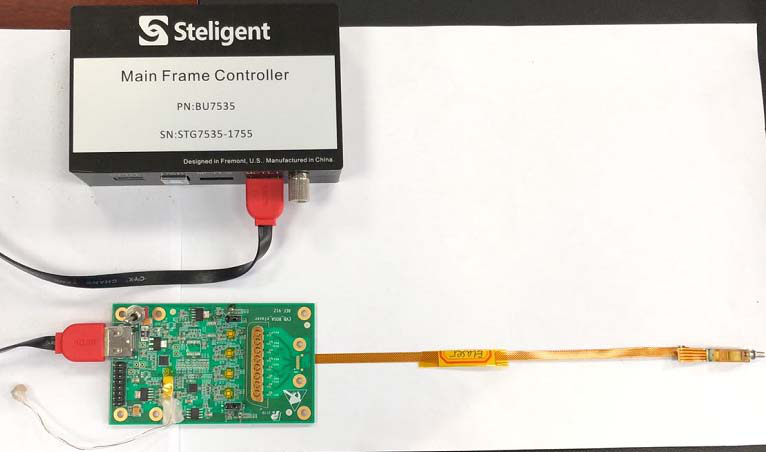

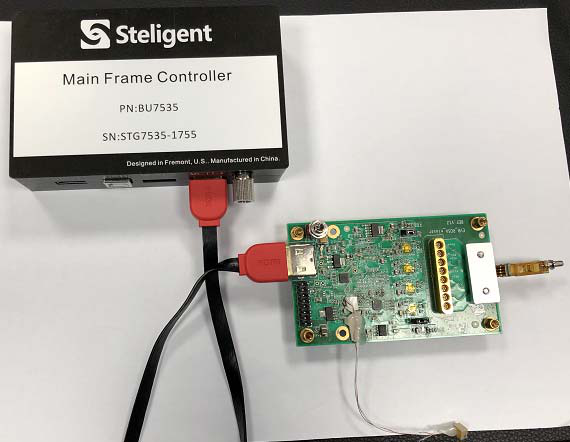

| Main Frame Model | BU7535 |

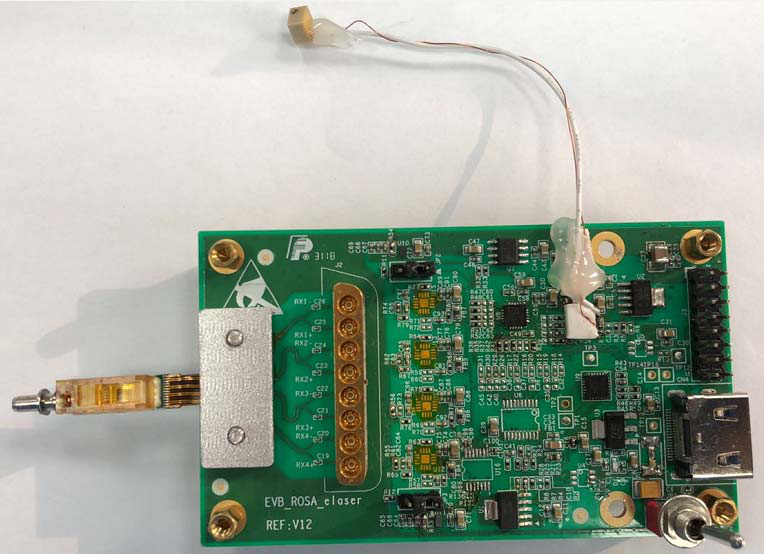

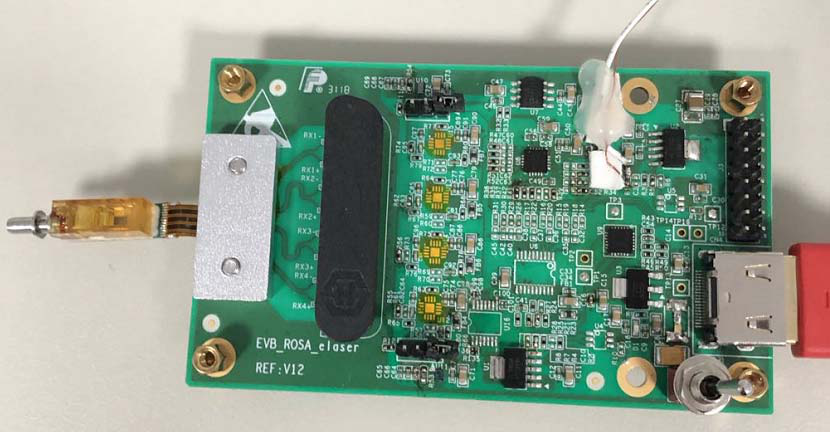

| ROSA Evaluation Board Model | EVB_ROSA_Elaser V12 |
| Voltage Adjustment Range | 1.2V-4.0V |
| ROSA Voltage | 3.3V (TIA Only), 1.8V (TIA+CDR) |
| Current Detection Resistance | R53: 0.25Ohm/%1, R54: 2.7Ohm/%1 |
| USB Interface | USB2.0 |
| RF Bandwidth | 40GHz |
| Maximum Voltage | 15V |
| Maximum Current | 8A |

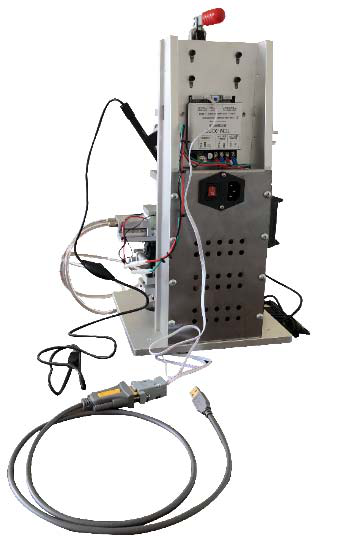

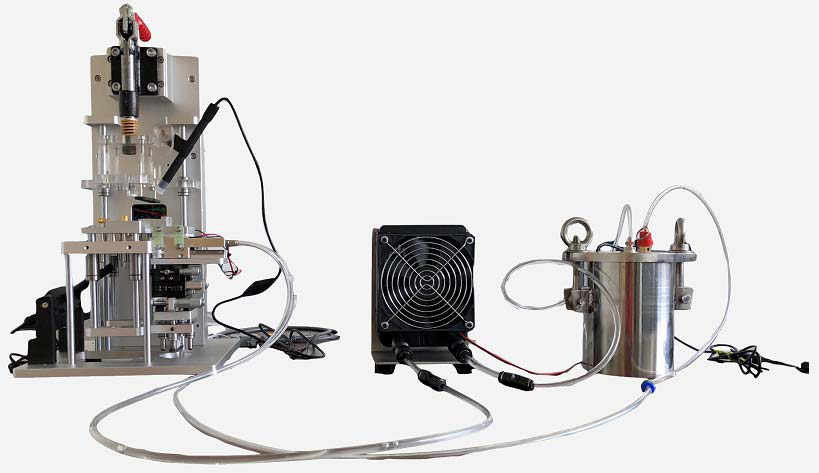

| Water Cooling System | Internal circulation with inlet and outlet |

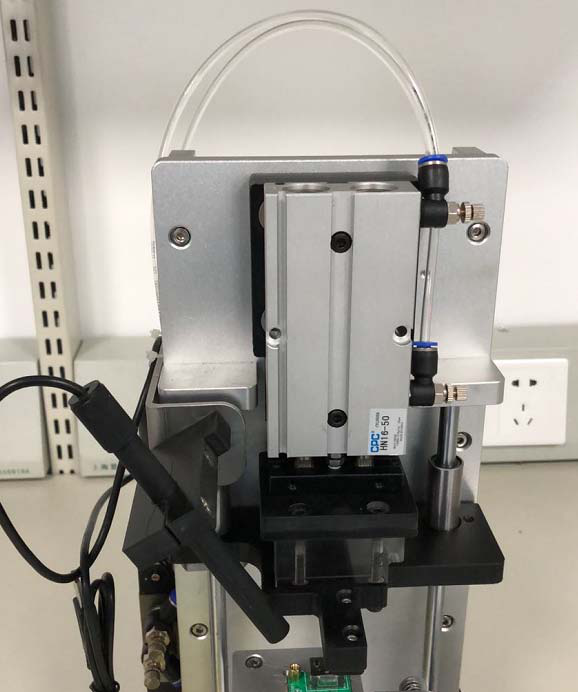

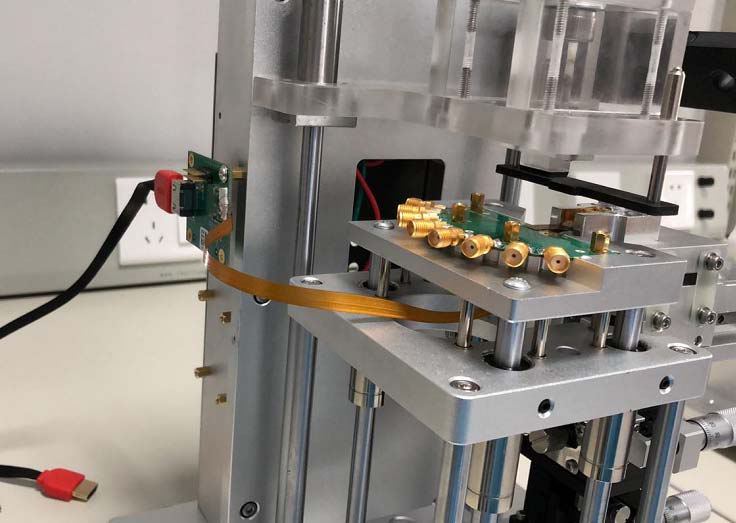

| Pressure Head Material | Soft rubber block |
| ROSA RSSI/I2C Multiplexed PIN | RSSI3/SCL, RSSI2/SDA |

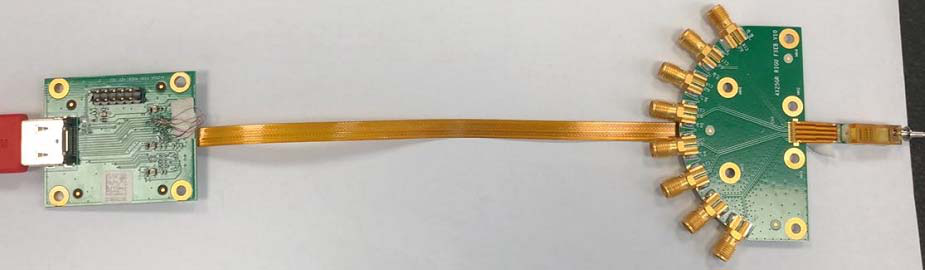

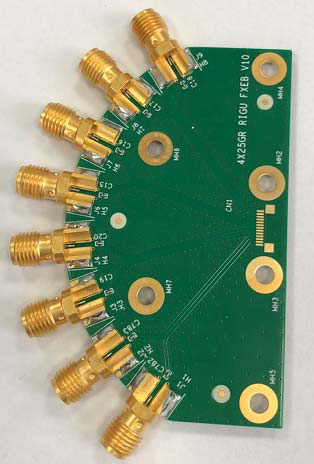

| 1x8 RF Connector | 4 differential channel outputs |
