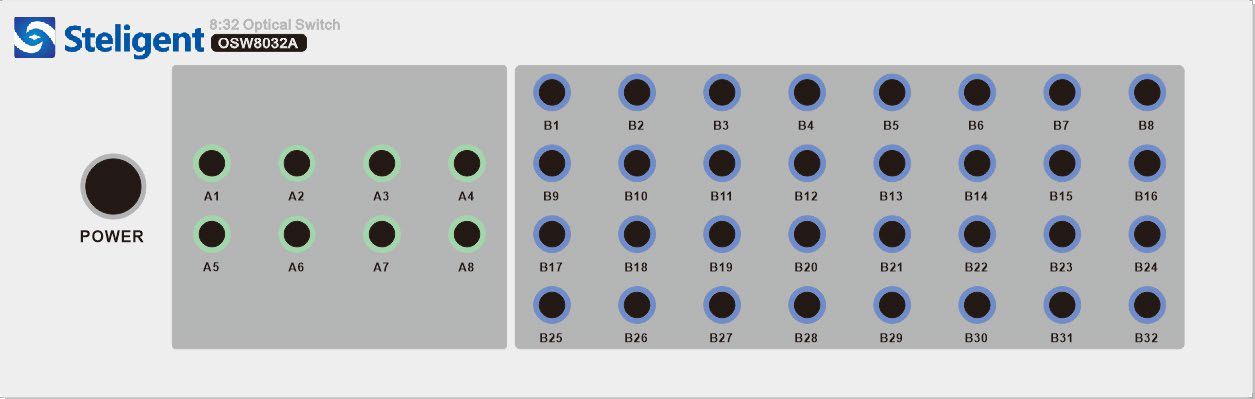

OSW8032A Optical Integrated Testing Floor
The OSW8032A Optical Integrated Testing Floor is a high-performance, cost-effective optical switch designed for TOSA/ROSA components R&D, manufacturing environments, and field installations. It offers precise and repeatable optical channel switching with remote control capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Switching Channel | 8x32 |
| Wavelength Range (nm) | 1270~1650 |
| Insertion Loss (dB) | ≤3.1 |
| Repeatability (dB) | ≤±0.1 |
| Return Loss (dB) | ≥40 |
| Cross Talk (dB) | ≥50 |
| Wavelength Dependent Loss (dB) | ≤0.6 |
| Polarization Dependent Loss (dB) | ≤0.5 |
| Temperature Dependent Loss (dB) | ≤0.6 |
| Switching Time (ms) | ≤30 |
| Optical Power Handling (mW) | ≤500 |
| Power Consumption (uW) | 100 |
| Durability (Cycles) | 1 Billion Min. |
| Operating Temperature (°C) | -5~+70 |
| Storage Temperature (°C) | -40~+85 |
| Relative Humidity (%) | 5~95 |
