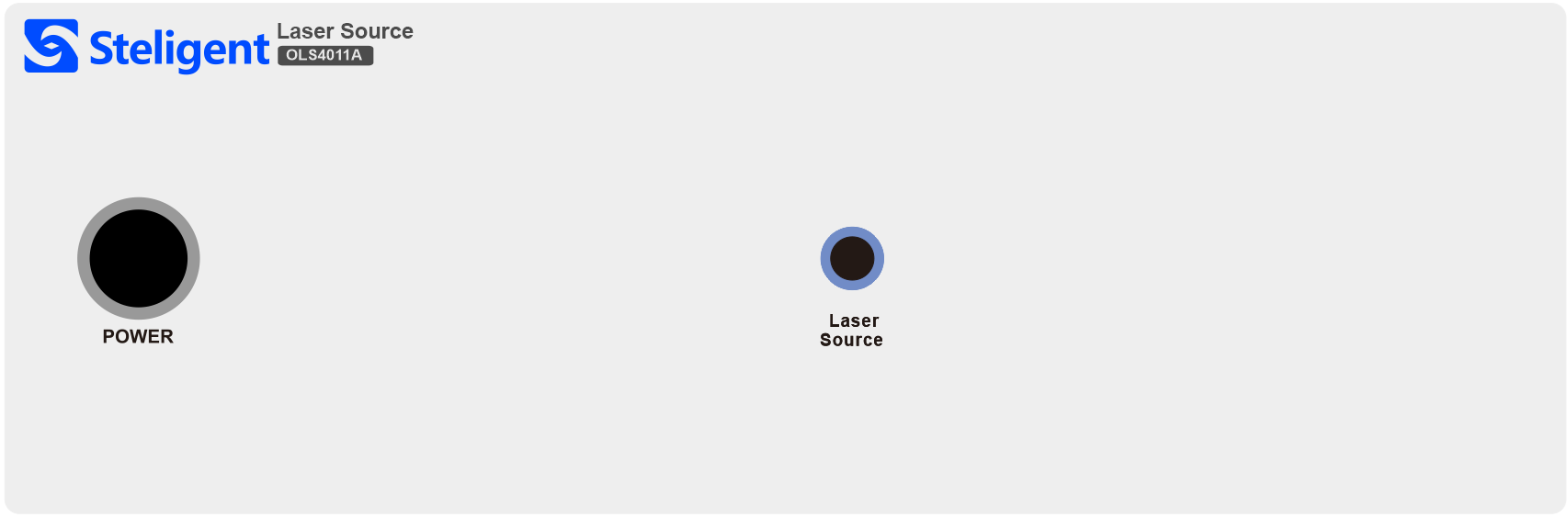

OLS4011A Optical Integrated Machine
The OLS4011A Optical Integrated Machine is a high-performance device designed for optical module testing, verification, and analysis. It integrates a laser source and multiple optical modules to provide efficient and accurate testing, making it ideal for large-scale production environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Optical Output Power | 6.0-12.0mW |
| Optical Isolation | 35dB |
| Wavelength Temperature Coefficient | 0.08-0.12nm/°C |
| Monitor Current | 50-1500μA |
| Thermistor Resistance | 9.5-10.5kΩ |
| Thermistor B-Value | 3950K |
| Operating Case Temperature | -5°C-70°C |
| Storage Temperature | -40°C-85°C |
| Power Supply | 110-240V |
| Optical Connector | FC/UPC |
Applications
Key Features
Datasheet
