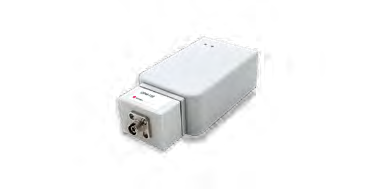

OPM-110 USB Optical Power Meter
The OPM-110 is a standalone USB optical power meter designed for precise measurement of absolute power and insertion loss. It is ideal for optical alignment, signal monitoring, and R&D applications, featuring a compact design and USB-powered operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) 1mm InGaAs | 850 to 1650 |
| Wavelength Range (nm) 2mm InGaAs | 850 to 1650 |
| Wavelength Range (nm) 3mm InGaAs | 850 to 1650 |
| Wavelength Range (nm) 19mm InGaAs | 400 to 1100 |
| Wavelength Range (nm) 3mm Silicon | 400 to 1100 |
| Power Range (dBm) 1mm InGaAs | -65 to +10 |
| Power Range (dBm) 2mm InGaAs | -65 to +10 |
| Power Range (dBm) 3mm InGaAs | -65 to +10 |
| Power Range (dBm) 19mm InGaAs | -45 to +10 |
| Power Range (dBm) 3mm Silicon | -45 to +10 |
| Detector type | InGaAs |
| Detector type | Silicon |
| Power Resolution (dB) | 0.001 |
| Linearity (dB) | ±0.006 (0 to 10 dBm) |
| Sampling Time | 50ms |
| Remote Interface | USB |
| Input Voltage | 5VDC |
| Power Consumption (W) | 0.5 maximum |
| Max Detector Count | 5 to 10 |
| Operating Temperature (°C) | 5 to 40 |
| Humidity (non-condensing) | Maximum 95% RH from 5 to 40°C |
