Optical Multi-Meter
A compact and versatile optical multi-meter designed for precise optical power measurement and testing.
Save to Favorites
Overview
Specifications

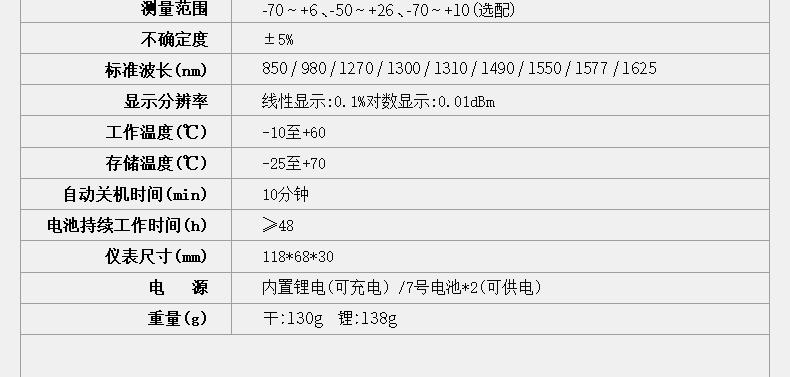

| Parameter | Value |
|---|---|
| Wavelength Range | 800-1700 |
| Connector | FC/SC/ST |
| Detector Type | InGaAs |
| Measurement Range | -70~+6, -50~+26, -70~+10 (optional) |
| Uncertainty | ±5% |
| Standard Wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625 |
| Display Resolution | Linear display: 0.1%, Numerical display: 0.01dBm |
| Operating Temperature | -10~60°C |
| Storage Temperature | -25~70°C |
| Auto Shutdown Time | 10min |
| Battery Life | ≥48h |
| Instrument Dimensions | 118×68×30mm |
| Power Supply | Built-in lithium battery (rechargeable) / 2 AAA batteries |
| Weight | Dry: 130g, With battery: 138g |
