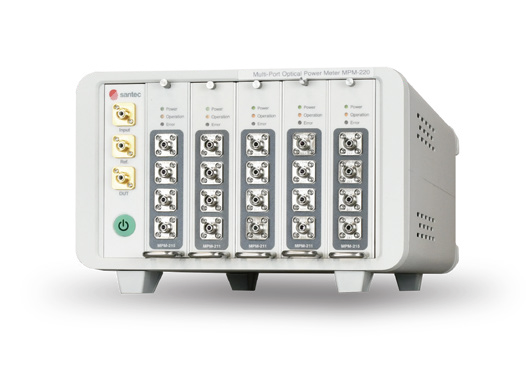

MPM-220 Multi-Channel Optical Power Meter
The MPM-220 is a high-performance multi-channel optical power meter designed for precise measurement of optical power across multiple channels. It supports up to 20 channels simultaneously, with high accuracy and sensitivity, making it ideal for advanced optical testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1250-1680nm |
| Power Dynamic Range MPM-211/212/217 | -80 to +10dBm |
| Power Dynamic Range MPM-215 | -70 to +5dBm |
| Current Dynamic Range MPM-213 | -70 to +10dBmA |
| Dynamic Range at Fixed Gain | 50dB |
| Maximum Optical Power | +16dBm |
| Maximum Optical Power MPM-213 | +10dBmA |
| Uncertainty | ±5% |
| Power Resolution | 0.001dB |
| Insertion Loss | ≤0.005dB |
| Trigger Input | TTL (3.3V) |
| Trigger Output | TTL (3.3V) |
| Interface | GP-IB, Ethernet |
| Operating Temperature | 10-40°C |
| Storage Temperature | -20-80°C |
| Dimensions | 220×385×130mm |
| Module Dimensions | 30.3×183.5×114.8mm |
