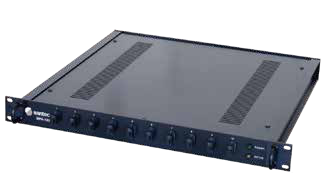

MPA-100 Multi-Photo Detector Array
The MPA-100 is a highly integrated rack model of a multi-channel photo detector array. It supports up to 80 channels and is designed for optical power testing in data communication, CATV, and telecommunication systems. It features high-speed sampling rates and wide wavelength range, making it suitable for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of optical input ports | 82 |
| Optical connector type | MMF |
| Optical connector type | SMF |
| Optical input connector | MPO/MTP |
| Photodetector type | InGaAs photodiode |
| Optical input power range (dBm) | -60 to 10 |
| Operating Wavelength Range (nm) | 1260 to 1650 |
| Optical connector | MPO |
| Optical connector | MTP |
| Sampling rate (kHz) | 10 |
| Trigger signal | USB |
| Power Supply Voltage (V) | 100-240 |
| Power Consumption (W) | 10 |
| Dimensions (mm) | 482x44x350 |
| Weight (kg) | 4.4 |
