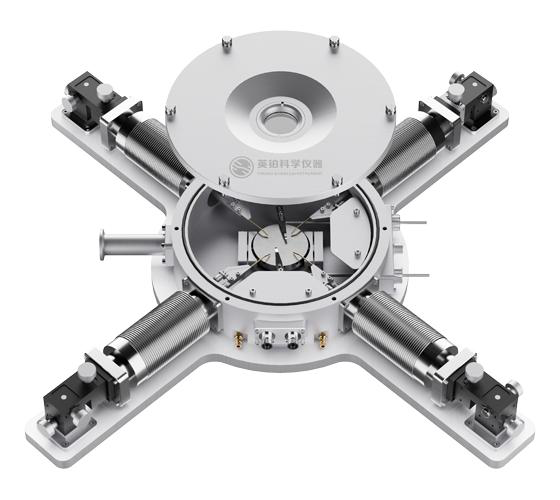

YB-VC100-LN-H-P4ED
YB-VC100-LN-H-P4ED is a high-precision temperature control and optical measurement system designed for scientific research and industrial applications. It offers advanced cooling and heating methods, precise temperature control, and versatile optical and electrical features.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cooling and Heating Method | 液氮致冷,电阻加热 |
| Temperature Control Range | -190~400℃ (600℃气密) |
| Temperature Stability | ±0.1℃ |
| Temperature Resolution | 0.1℃ |
| Heating and Cooling Rate | 0~50℃/min (可定点/程序段控温) |
| Temperature Control Method | PID |
| Temperature Sensor | PT100 |
| Optical Path | 反射光路,可升级为透射光路 |
| Window Material | 石英玻璃 |
| Window Size | Φ30mm |
| Objective Working Distance | 15mm (具体以最终方案为准) |
| Light Transmission Hole | 默认None透光孔,可升级透光孔 |
| Window Defrost | 负温下吹气除霜 |
| Probe | 可调节探针x4,手动定位 |
| Probe Interface | BNC接口x4 |
| Sample Stage Potential | 默认电悬浮,可电接地 |
| Sample Stage Size | Φ25mm |
| Sample Stage Material | 银质 |
| External Dimensions | Φ200mmx60mm (可根据客户需求调整)/外腔尺寸430x430x60mm |
| Sample Chamber Height | 15mm |
| XYZ Displacement Stroke | ±6.5mm |
| Probe Displacement Accuracy | 1μm |
| Basic Configuration | 外置调节探针转接台x1,温度控制单元x1,致冷控制单元x1 (低温配置),液氮罐x1,温控模块x1,循环水系统x1 (高温配置),连续降温挡干 |
| Other Configuration | 电脑主机/安装支架/真空系统/三向BNC/定制温控Attachment |
