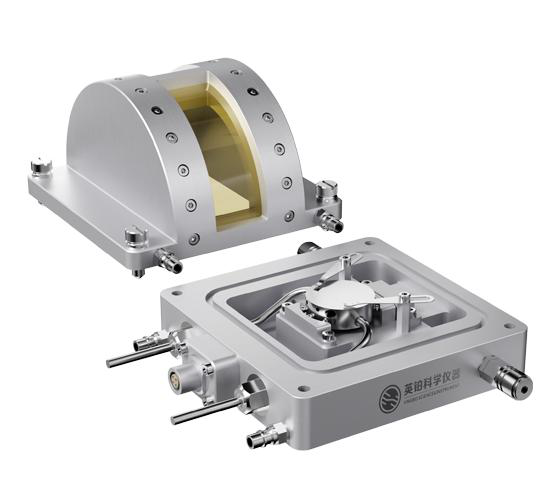

CH600-190-XV & H1200-XV 温控模块
The CH600-190-XV and H1200-XV temperature control modules are designed for precise temperature regulation in scientific applications, offering advanced features such as PID control and compatibility with X-ray diffraction systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cooling Method CH600-190-XV | 液氮致冷,电阻加热 |
| Cooling Method H1200-XV | 电阻加热 |
| Temperature Control Range CH600-190-XV | -190~600°C |
| Temperature Control Range H1200-XV | RT~1500°C |
| Temperature Stability CH600-190-XV | ±0.1°C (<600°C), ±1°C (>600°C) |
| Temperature Stability H1200-XV | ±1°C |
| Temperature Resolution | 0.1°C |
| Heating/Cooling Rate | 0~50°C/min (可定点/程序段控温) |
| Temperature Control Method | PID |
| Temperature Sensor CH600-190-XV | PT100 |
| Temperature Sensor H1200-XV | 热电偶 |
| Optical Path | 反射 |
| X-ray Film CH600-190-XV | Kapton膜 |
| Sample Stage Size CH600-190-XV | 23×23mm |
| Sample Stage Size H1200-XV | 12×12mm |
| Sample Stage Material CH600-190-XV | 银质 |
| Sample Stage Material H1200-XV | 陶瓷 |
| Dimensions CH600-190-XV | 100×100×73mm |
| Dimensions H1200-XV | 真空 |
| Shell Cooling | 循环水 |
