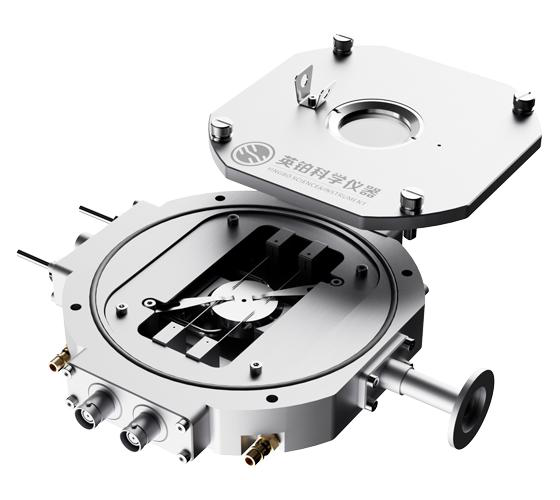

YB-VC100-LN-H & YB-VC100-LN-H-P4
YB-VC100-LN-H and YB-VC100-LN-H-P4 are advanced temperature control modules designed for precise optical and electrical measurements, featuring liquid nitrogen cooling and electric heating.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cooling Method | 液氮致冷,电阻加热 |
| Temperature Range | -190~600°C |
| Temperature Stability | ±0.1°C |
| Temperature Resolution | 0.1°C |
| Heating/Cooling Rate | 0~50°C/min (可定点/程序段控温) |
| Temperature Control Method | PID |
| Temperature Sensor | PT100 |
| Optical Path | 反射光路,可升级为透射光路 |
| Window Material | 石英玻璃 |
| Window Size | Φ25mm |
| Objective Working Distance | 6mm |
| Light Transmission Hole | Φ2mm |
| Window Defrost | 负温下吹气除霜 |
| Probe | 微型探针x4,手动定位 |
| Probe Interface | BNC接口x4 |
| Sample Stage Potential | 默认电悬空,可选电接地 |
| Sample Stage Size | Φ25mm |
| Sample Stage Material | 银质 |
| Dimensions | Φ110×30mm (YB-VC100-LN-H), Φ115×30mm (YB-VC100-LN-H-P4) |
| Sample Chamber Height | 7mm |
| Chamber | 气密腔室 (可选真空腔室) |
| Shell Cooling | 恒温水冷 |
| System Components | 探针冷却盒x1,温度控制器x1,数字温度计x4,低冷却温度x4,温度控制软 Itemsx1,低温样品台x1,温控软 Itemsx1,连接管路若干 |
