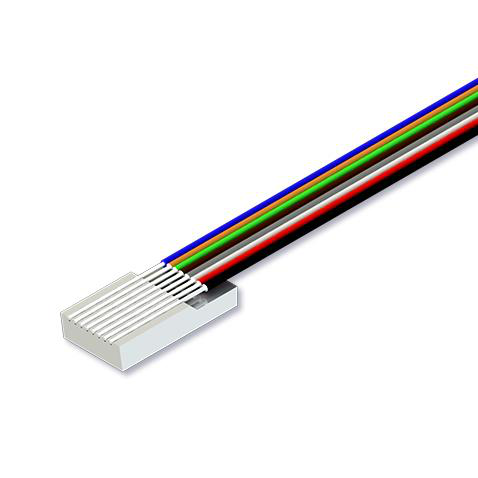

Lidless FA
To avoid chip damage caused by FA lid scraping and reduce the size of the fiber array, HYC offers Lidless FA products. These products feature precise fiber positioning and high stability, with an angle range of 0°-45° and a length range of 50-2500μm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Pitch 2CH | 127,250, customizable |
| Fiber Pitch 4CH | 127,250, customizable |
| Fiber Pitch 8CH | 127,250, customizable |
| Fiber Pitch 12CH | 127,250, customizable |
| Fiber Pitch 24CH | 127,250, customizable |
| Pitch Error 2CH | <0.3 |
| Pitch Error 4CH | <0.5 |
| Pitch Error 8CH | <0.5 |
| Pitch Error 12CH | <0.8 |
| Pitch Error 24CH | <1.0 |
| Fiber Type | Single mode, polarization-maintaining |
| Fiber Protrusion | 50-2500 |
| FA Thickness/Width | 0.5 |
| Operating Temperature | -5-70 |
