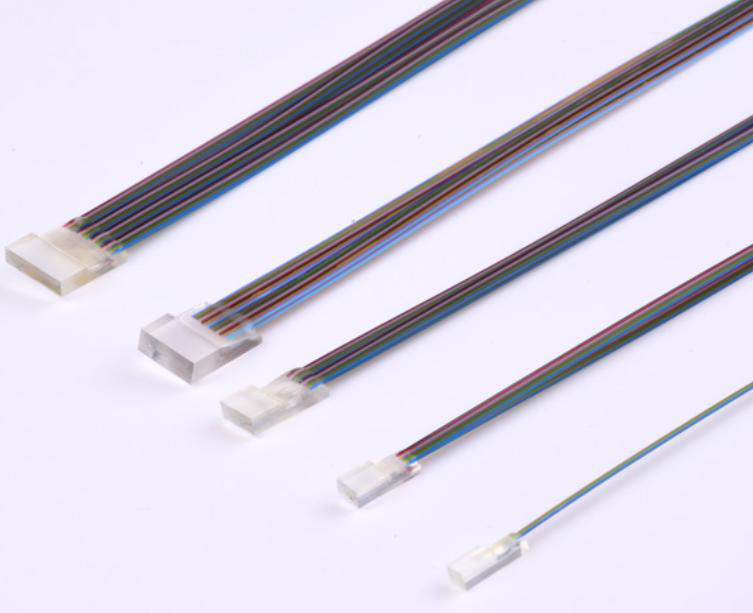

Fiber Array (FA)
HYC's Fiber Array (FA) offers multiple options, including fiber arrays with different specifications, end-face angles, and more. It is widely used in planar lightwave circuits (PLC), arrayed waveguide gratings (AWG), optical switches (OXC), and MEMS systems. The product is manufactured using high-quality materials and advanced processes to ensure optimal performance in various optical environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count | 2, 4, 8, 16, 32, 48, 64 or customized |
| Fiber Pitch | 2CH, 4CH, 8CH: 250±0.5; 8CH, 16CH, 32CH, 48CH, 64CH: 127±0.5 |
| Insertion Loss | ≤0.15 |
| Return Loss | ≥55 |
| Polishing Angle | 8±0.3 |
| Operating Temperature | -40~+85 |
| Fiber Type | Corning G657A2 or customer-specified |
| Fiber Composition Type | 2条单芯带状纤, 1条单芯带状纤, 2条四芯带状纤, 1条八芯带状纤, 2条八芯带状纤, 4条八芯带状纤, 8条八芯带状纤 |

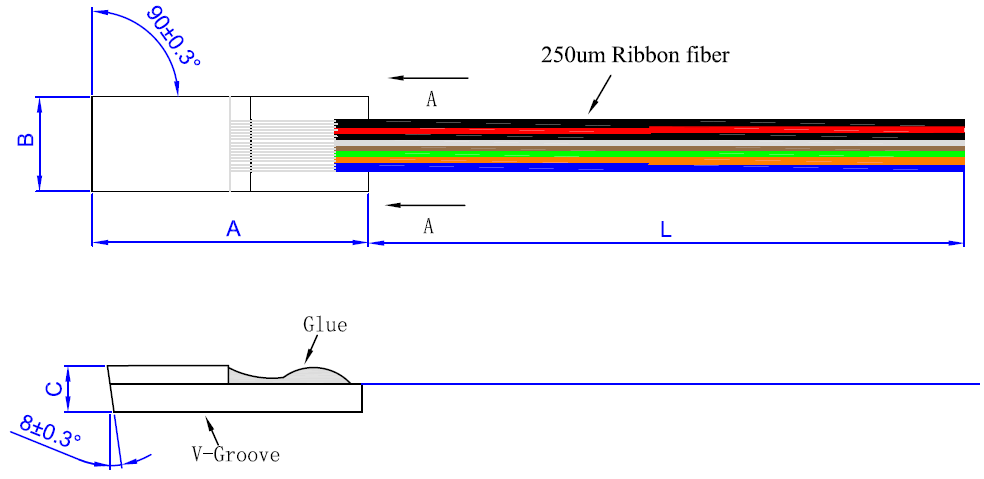

| A(mm) | 10±0.2, 12±0.2 |
| B(mm) | 2.5±0.05, 5.7±0.05, 9.8±0.1 |
| C(mm) | 2.5±0.05 |
| L(m) | 1.5 or 2.5 |
| Fiber Color | Transparent |
| Fiber Color | Blue |
| Fiber Color | Orange |
| Fiber Color | Green |
| Fiber Color | Brown |
| Fiber Color | Gray |
| Fiber Color | White |
| Fiber Color | Red |
| Fiber Color | Black |
| Remarks | Customer-specified |
