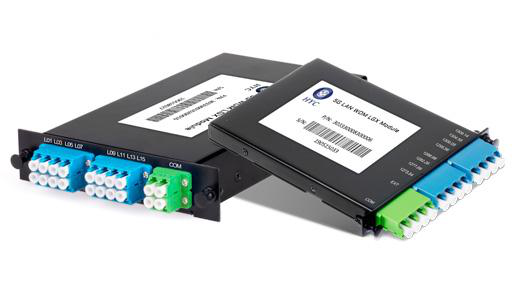

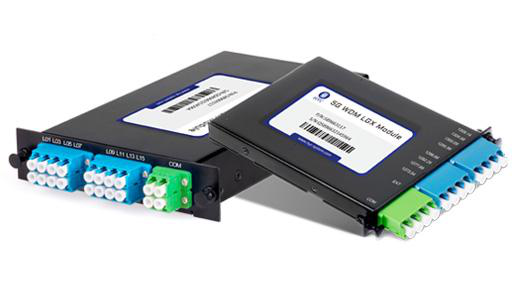

5G WDM LGX Module
The HYC 5G WDM LGX module is a type of wavelength division multiplexing technology based on TFF (thin-film filter). It adopts O-band zero dispersion zone and supports 50GHz and 100GHz channel spacing. It features low insertion loss, high stability, and excellent environmental adaptability, making it suitable for applications in central office terminals (COT) and remote terminals (RT) in 5G networks. It can also be used for 4G extension terminals (EXT) and OTDR testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Count COT | 8+EXT |
| Channel Count RT | 16+EXT |
| Operating Wavelength (nm) | 1260-1360&1400-1620 |
| Channel Spacing (GHz) | 50/100 |
| Extension Port Wavelength (nm) | 1400-1620nm |
| Channel Insertion Loss (dB) COT | WDM:≤1.8 EXT:≤0.9dB |
| Channel Insertion Loss (dB) RT | WDM:≤2.8 EXT:≤0.9dB |
| Isolation (dB) | ≥25dB |
| Non-Passband Isolation (dB) | ≥40dB |
| Extension Port Isolation (dB) | ≥30dB |
| Return Loss (dB) | ≥45dB |
| Directivity (dB) | ≥50dB |
| Wavelength Temperature Drift (nm) | ≤0.5nm |
| Operating Temperature (°C) | -40~+85°C |
