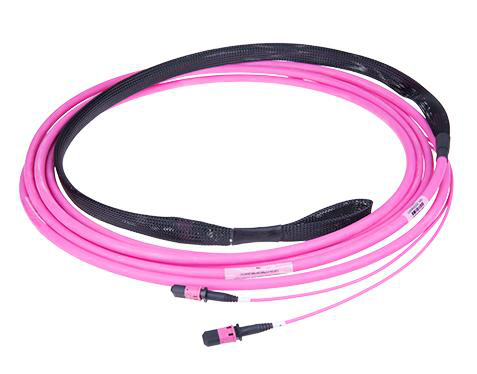

MPO Pre-terminated Trunk Branch Cable
MPO pre-terminated trunk branch cable connects two ends with MPO connectors, offering 24 to 288-core fiber connections. It features a compact and protective design, effectively preventing fiber damage during installation. The cable uses high-quality fiber optic materials, ensuring high transmission performance. It is suitable for backbone networks, data centers requiring high density, fast deployment, and high performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) SM 8F,12F | ≤0.35dB |
| Insertion Loss (dB) SM 24F | ≤0.5dB |
| Insertion Loss (dB) MM 8F,12F,16F | ≤0.35dB |
| Insertion Loss (dB) MM 24F,32F | ≤0.7dB |
| Return Loss (dB) SM | ≥55dB |
| Return Loss (dB) MM | ≥20dB |
| Operating Temperature | -25°C~+70°C |
| Fiber Count | 24F-288F |
| Applicable Fiber | OS2/OM1/OM2/OM3/OM4/OM5 |
Applications
Key Features
Datasheet
