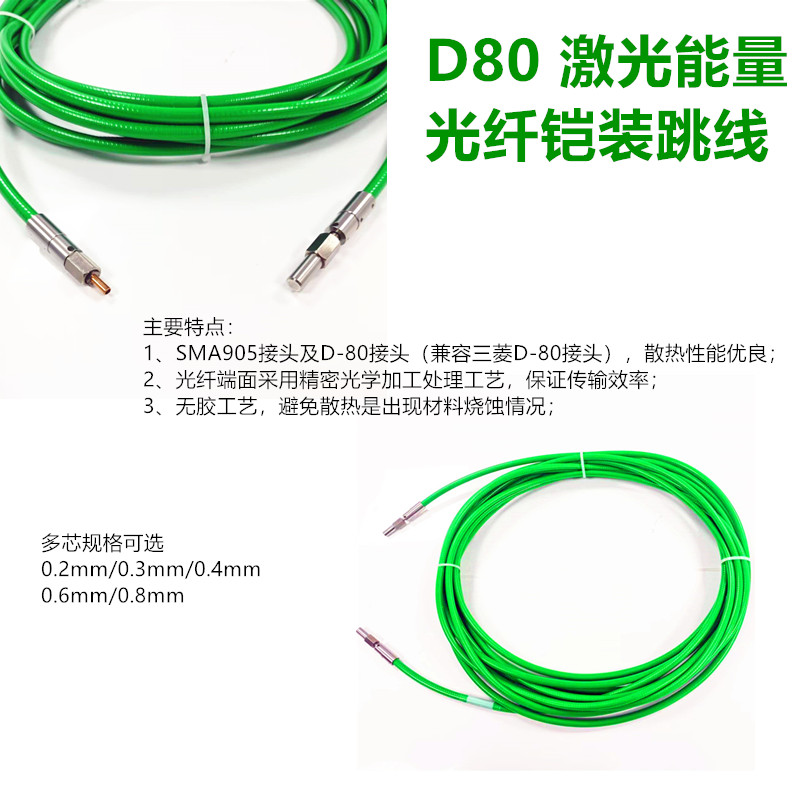

D80 Armored fiber patch cord for laser energy delivery
Save to Favorites
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
TO Pigtailed laser 82020114
Optical Networking Accessories
Optoxuhai
探测气体: CO 波长: 1567 出光功率: 10mW+
Compared with coaxial pigtail-packaged lasers, the coaxial package enables customers to reduce system size and is commonly used in open-path and portable sensing solutions. Xuhai Optoelectronics' TO packages have a built-in TEC and currently come in two forms: TO with a focusing lens, and TO with a flat window tilted by eight degrees. A version without a TEC is still under development.
-
Mode-field adapter MFA
Optical Networking Accessories
Szsbksgdkjyxgs
信号波长 [端口配置: 1x1 / 信号输入光纤: 6/125 / 信号输出光纤: 10/125]: 1030~1080 or 1450~1600 信号波长 [端口配置: 1x1 / 信号输入光纤: 10/125 / 信号输出光纤: 20/125]: 1030~1080 or 1450~1600 信号波长 [端口配置: 1x1 / 信号输入光纤: 10/125 / 信号输出光纤: 25/250]: 1030~1080 or 1450~1600
A mode-field adapter (MFA) changes the optical properties of a fiber to match the fiber being spliced, reducing splice loss. This can be achieved in either of two ways: tapering a larger core to match a smaller core, or expanding a smaller core by heating before or during splicing.
-
FC/UPC Bare fiber adapter
Optical Networking Accessories
Szsbksgdkjyxgs
芯径: 125/126/127um 芯部同心度: <1.0 插芯外径: 2.5mm
The bare-fiber adapter is a simple aid for fiber testing. Its core and through-hole contain no epoxy or medium. Bare fiber is easy to insert, remove and reuse, with low insertion loss. It is well suited to emergency fiber repairs and temporary connections.
-
Fiber energy-delivery patch cord
Optical Networking Accessories
Xalzdz
纤芯直径 [光纤类型 几何尺寸 涂覆层材料 适用波长 均可 客户定制 / 包层直径（μm）：125 / 涂覆层直径（μm）：245]: 105 μm 纤芯直径 [光纤类型 几何尺寸 涂覆层材料 适用波长 均可 客户定制 / 包层直径（μm）：220 / 涂覆层直径（μm）：320]: 200 μm 纤芯直径 [光纤类型 几何尺寸 涂覆层材料 适用波长 均可 客户定制 / 包层直径（μm）：440 / 涂覆层直径（μm）：560]: 400 μm
Laser power-delivery patch cords use precision SMA905 connectors, protective stainless-steel flexible tubing, high-quality ferrules and repeatedly polished end faces. Large-core power fibers in various specifications meet custom requirements for delivering energy from semiconductor lasers/modules and solid-state lasers of different powers.
