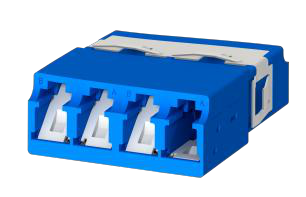

LC Adapter with Inner Shutter
Designed to ensure stable transmission performance and protection in modern optical networks, HYC's LC adapter with inner shutter offers reliable optical connection and dust prevention. It is available in single-mode and multimode options, with duplex and quad configurations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss SM/PC | <0.2dB |
| Insertion Loss SM/APC | <0.2dB |
| Insertion Loss MM/PC | <0.2dB |
| Retention Force | 100-300g |
| Repeatability | <0.2dB(500times) |
| Temperature Range | -40°C~+85°C |
Applications
Key Features
Datasheet
Supplier Information
