1x9 Un-equal Mini PLC

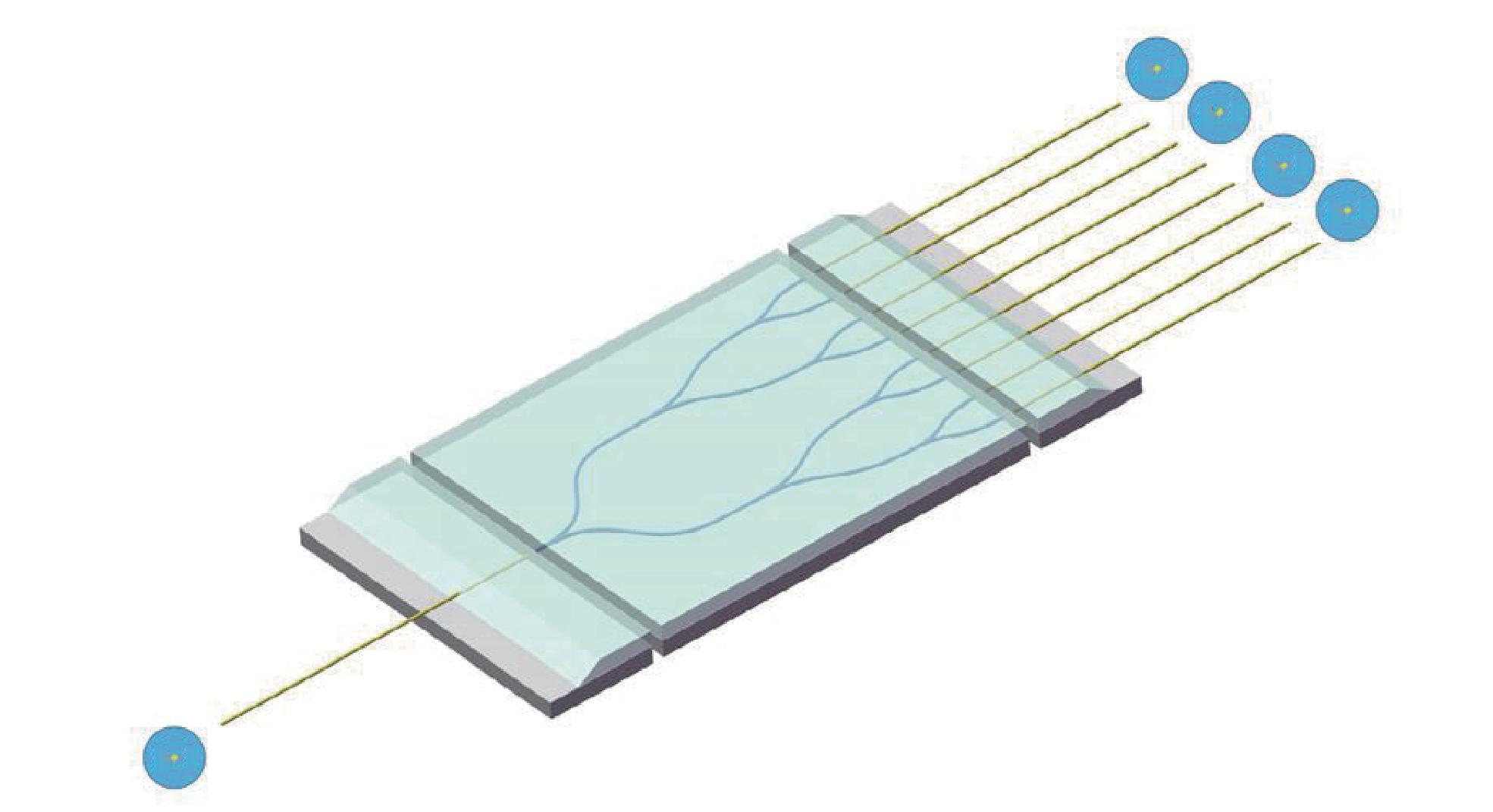

The 1x9 Un-equal Mini PLC is a type of optical power management device that utilizes silica optical waveguide technology to distribute optical signals from the Central Office (CO) to multiple premise locations. It features a compact size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A or as customized |
| Insertion Loss (dB) 1x3 | 6 |
| Insertion Loss (dB) 1x6 | 9.4 |
| Insertion Loss (dB) 1x9 (70%:3.75%) | 2.2/16.3 |
| Insertion Loss (dB) 1x12 | 12 |
| Insertion Loss (dB) 1x24 | 16 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| PDL (Max.) | 0.2 (1x3), 0.3 (1x6, 1x9, 1x12, 1x24) |
| Uniformity (Max.) | 0.6 (1x3), 0.8 (1x6, 1x9), 1.0 (1x12), 1.5 (1x24) |
| Wavelength Dependent Loss (dB) | ≤0.3 |
| TDL (Max.) | 0.5 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
| Bare Fiber Dimensions (mm) | 50x7x4 (1x3, 1x6), 60x7x4 (1x9), 55x7x4 (1x12, 1x24) |
| 900μm Fiber Dimensions (mm) | 55x7x4 (1x3, 1x6, 1x9, 1x12, 1x24) |
| ABS Box Dimensions (mm) | 100x80x10 (1x3, 1x6), 120x80x18 (1x9, 1x12, 1x24) |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Monolithic Multi-Mode Coupler
Fiber Optic Couplers
HycSystem
Operating Wavelength (nm) 1x2 MMC: 850 or 1310, others on request Operating Bandwidth (nm) 1x2 MMC: ±40 Typical Excess Loss (dB) Grade P 1x2 MMC: ≤0.4
Monolithic Multi-Mode Coupler (MMC) is designed for multimode fiber LAN systems, offering low insertion loss and high reliability.
-
PLC Splitter
Fiber Optic Couplers
HycSystem
Insertion Loss (dB) 1x2: ≤4.0 Insertion Loss (dB) 1x4: ≤7.4 Insertion Loss (dB) 1x8: ≤10.5
PLC Splitter is a compact and reliable optical device designed for splitting optical signals in fiber optic networks.
-
OMUX4142A Series Optical Multiplexer & Demultiplexer
Fiber Optic Couplers
Steligent
Channel Center Wavelength LAN WDM: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm Channel Center Wavelength CWDM: 1270nm, 1290nm, 1310nm, 1330nm Channel No.: 4
OMUX4142A series optical multiplexer and demultiplexer is designed for optical module testing, verification, and analysis. It integrates LAN WDM and CWDM MUX/DEMUX, offering simplicity, high efficiency, and precision.
-
OSP1219A Series Optical Splitter
Fiber Optic Couplers
Steligent
Operating Wavelength: 1310nm, 1550nm Wavelength Bandwidth: ±40nm Additional Loss (dB): ≤0.7
The OSP1219A series optical splitter is designed for precise optical testing, verification, and analysis. It integrates 12 channels of 10/90 optical splitting, offering high efficiency and accuracy for large-scale production testing.
-
Optical Splitter
Fiber Optic Couplers
Hoyatek
