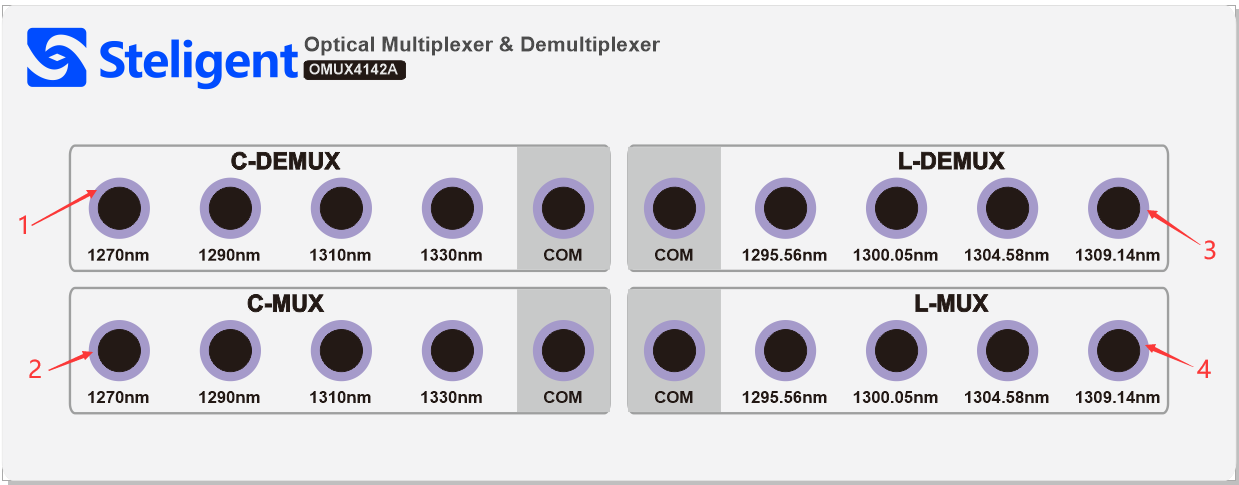

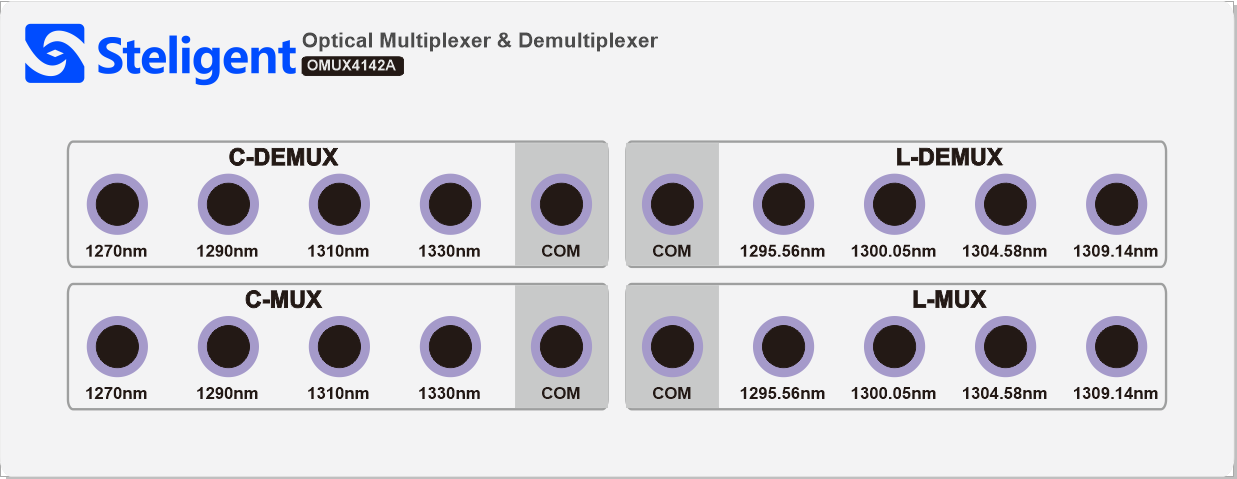

OMUX4142A Series Optical Multiplexer & Demultiplexer
OMUX4142A series optical multiplexer and demultiplexer is designed for optical module testing, verification, and analysis. It integrates LAN WDM and CWDM MUX/DEMUX, offering simplicity, high efficiency, and precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Channel Center Wavelength LAN WDM | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm |
| Channel Center Wavelength CWDM | 1270nm, 1290nm, 1310nm, 1330nm |
| Channel No. | 4 |
| Insertion Loss (dB) | ≤1.8 |
| Adjacent Channel Isolation (dB) | LAN WDM: ≥25, CWDM: ≥30 |
| Non-adjacent Channel Isolation (dB) | LAN WDM: ≥35, CWDM: ≥40 |
| PDL (dB) | LAN WDM: ≤0.3, CWDM: ≤0.1 |
| Polarization Mode Dispersion (ps) | LAN WDM: ≤0.2, CWDM: ≤0.1 |
| Directivity (dB) | ≥50 |
| Return Loss (dB) | ≥45 |
| Optical Power (mW) | LAN WDM: ≤500, CWDM: ≤300 |
| Operating Temperature (°C) | 0~+70 |
| Storage Temperature (°C) | -40~+85 |
