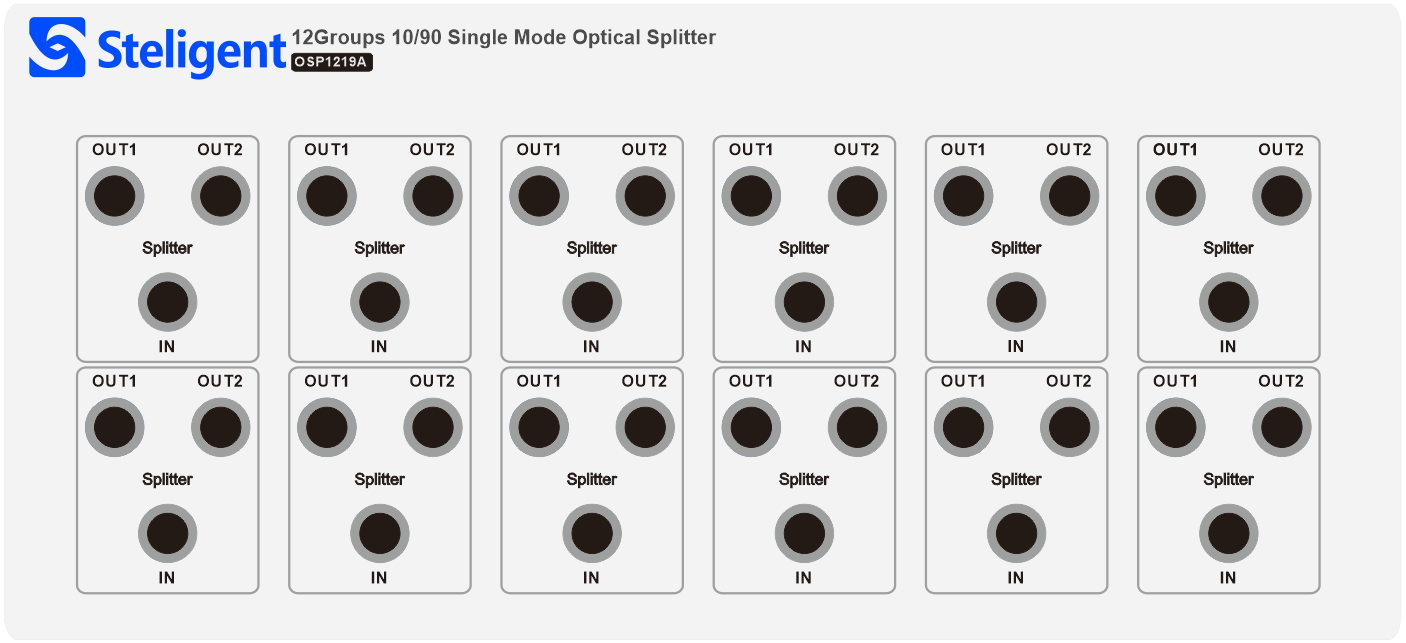

OSP1219A Series Optical Splitter
The OSP1219A series optical splitter is designed for precise optical testing, verification, and analysis. It integrates 12 channels of 10/90 optical splitting, offering high efficiency and accuracy for large-scale production testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1310nm, 1550nm |
| Wavelength Bandwidth | ±40nm |
| Additional Loss (dB) | ≤0.7 |
| Splitting Ratio | 10/90 |
| Insertion Loss (dB) | ≤11.4/0.75 |
| PDL (dB) | ≤0.15 |
| Directivity (dB) | ≥50 |
| Fiber Type | Coming single mode, SMF-28 |
| Operating Temperature (°C) | -20~+70 |
| Storage Temperature (°C) | -40~+85 |
Applications
Key Features
Datasheet
