Optical Lenses
High-quality optical lenses designed for precision light manipulation and imaging applications.
Save to Favorites
Overview
Specifications

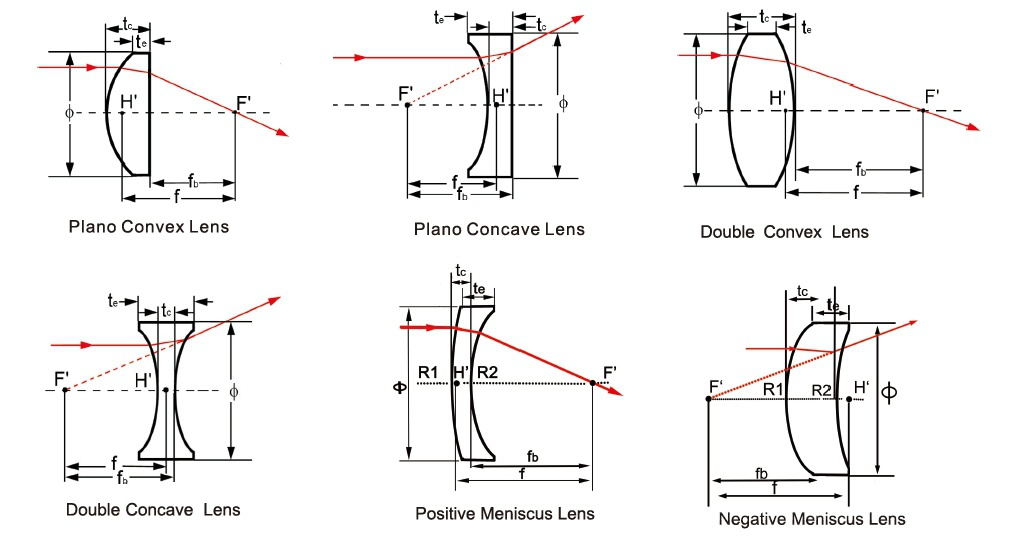

| Parameter | Value |
|---|---|
| Lens Type | Plano Convex |
| Lens Type | Plano Concave |
| Lens Type | Double Convex |
| Lens Type | Double Concave |
| Lens Type | Positive Meniscus |
| Lens Type | Negative Meniscus |
| Focal Length | Varies by lens type |
| Radius of curvature | R1, R2 (Varies by lens type) |
| Thickness | tc, te (Varies by lens type) |
| Optical Center | H' (Varies by lens type) |
| Optical Focus | F' (Varies by lens type) |
