4×3G-SDI Optical Extender

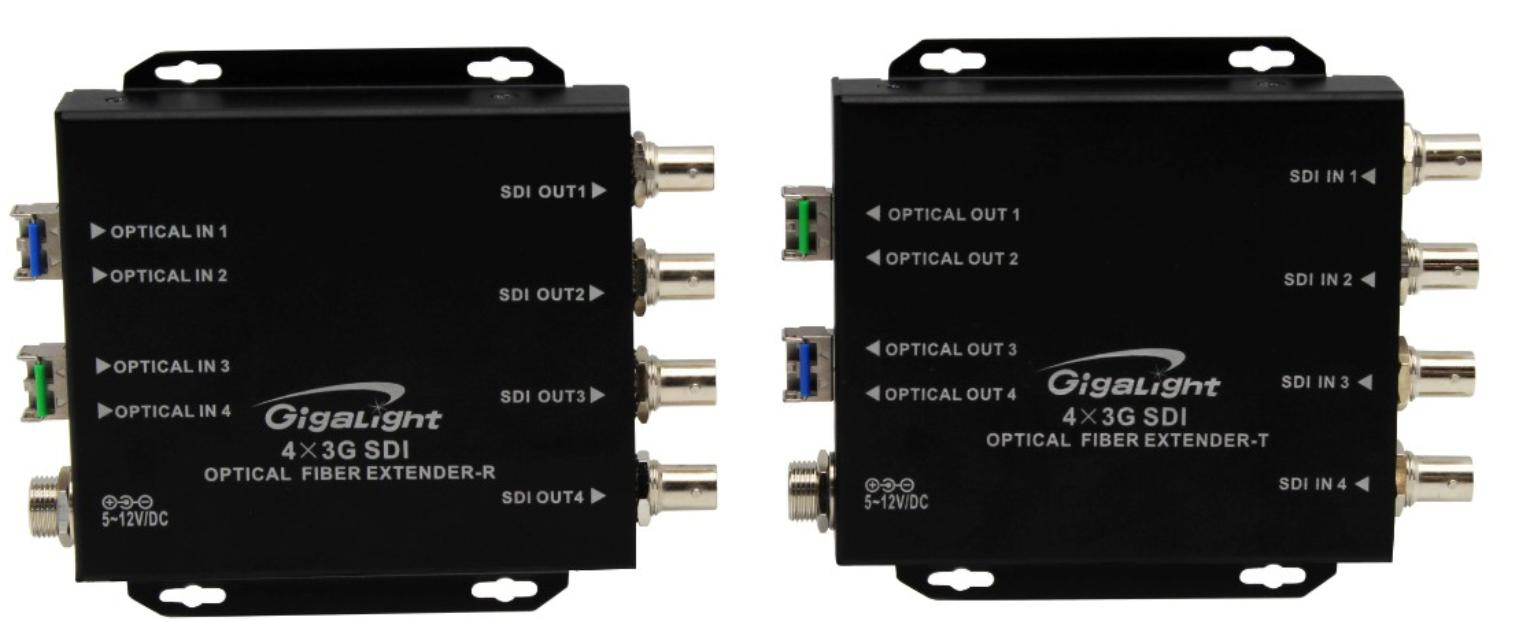

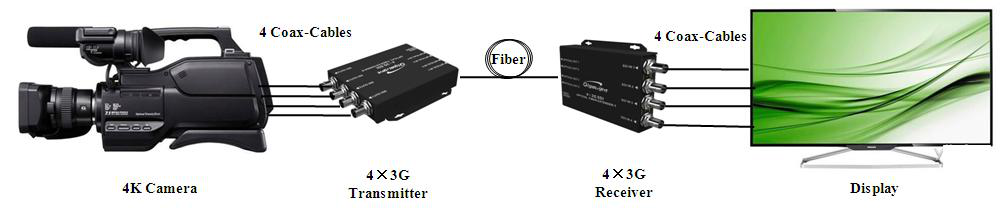

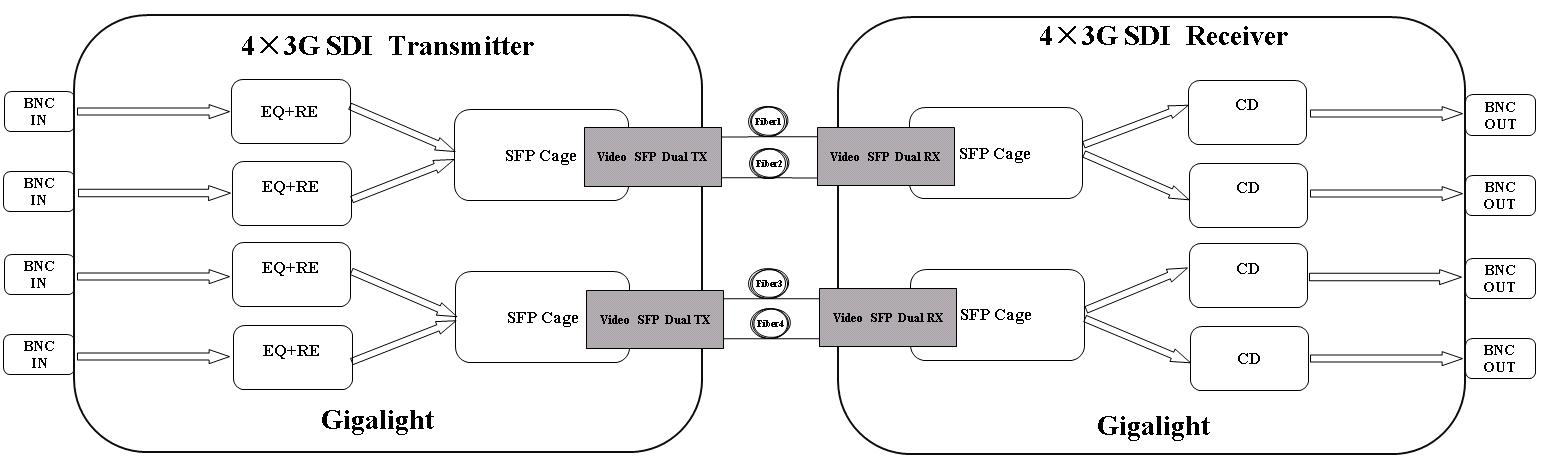

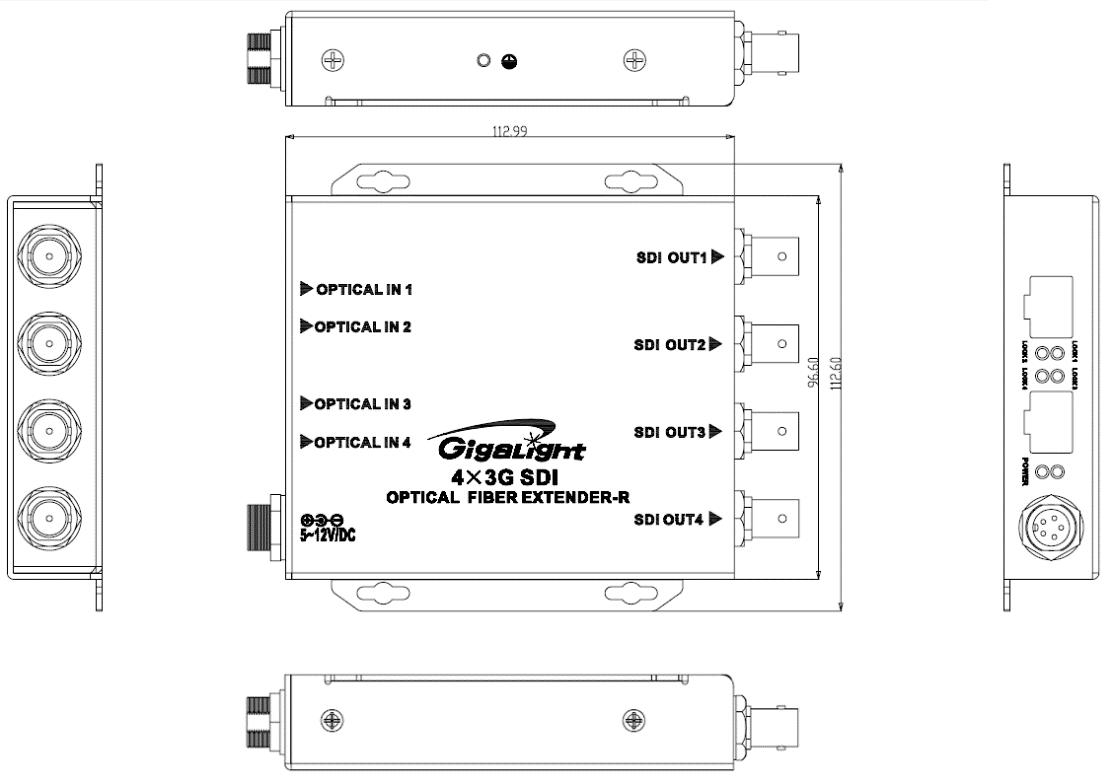

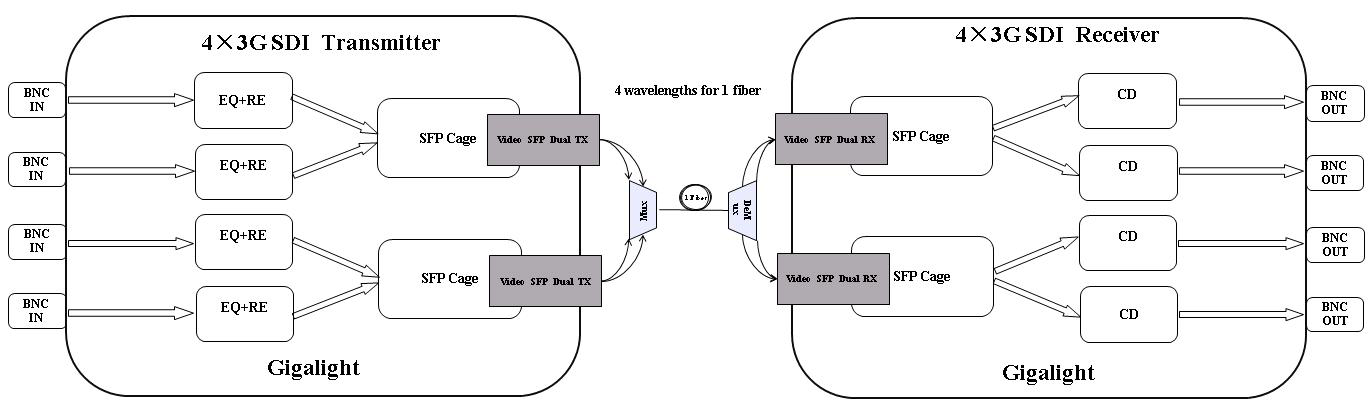

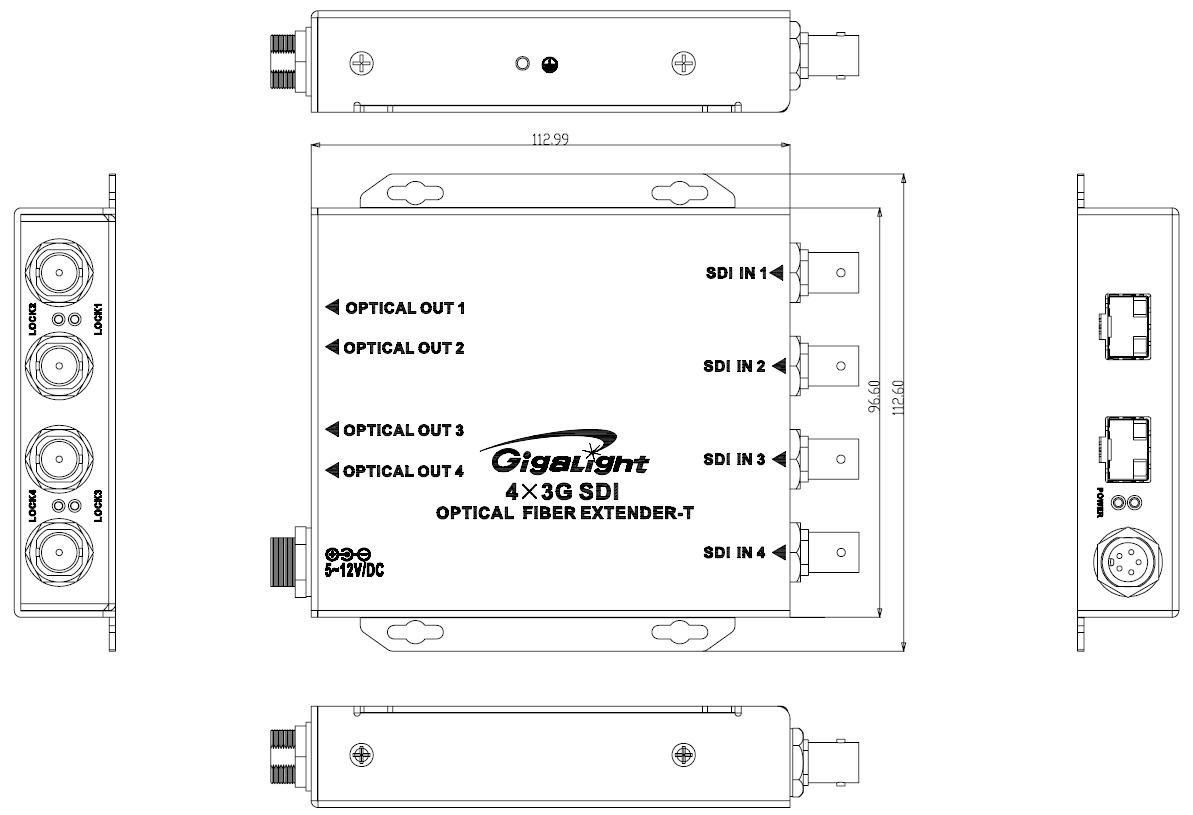

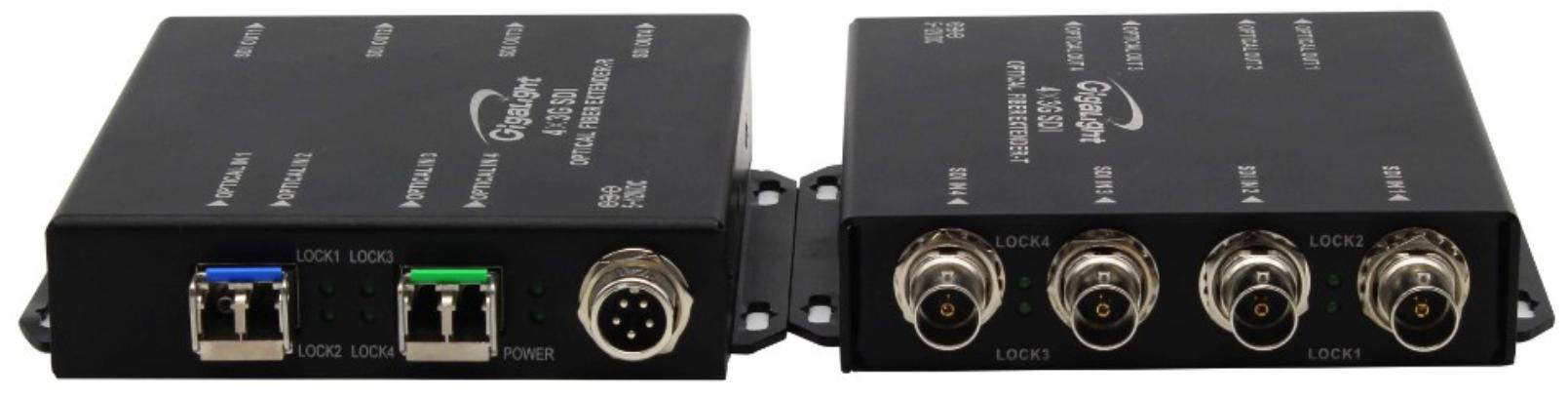

The GIGALIGHT 4×3G SDI Extender is a type of SDI extender for 4K used to extend the transmission distance between SDI Source and Sink devices. The transmission distance can be up to 80km or more, supporting high-quality video transmission over fiber optics.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -10~70°C |
| Operating Humidity | 5~80% |
| Supply Voltage | -0.5~6V |
| Operation Voltage | 4.5~5.5V |
| Operation Temperature | 0~45°C |
| Supply Current | TBD |
| Channel Numbers | Four lanes, SDI signal input/output |
| Interface for Cable | Standard BNC |
| Impedance 1 | 75Ω for single end |
| Interface for Module | SFP Connector |
| Impedance 2 | 100Ω for differential pair |
| 3G-SDI Data Rate | 2.97Gbps (SMPTE-424) |
| HD-SDI Data Rate | 1.485Gbps (SMPTE-292) |
| SD-SDI Data Rate | 270Mbps (DVB-ASI) |
| Input Swing | 600~1000mV |
| Auto Equalizer | 100m for Belden 1694A |
| Rise/Fall Time | <135ps |
| LED Indication | Power Indicator |
| LED Indication | SDI Signal Indicator |
| Each Channel Skew | <10ns |
| Overshoot | <10% |
| Output Swing | 800mV |
| Output Jitter | <0.2UI for 10Hz |
| Return Loss | >15dB |
| Cable Driver | Belden 1694A for recommend |
