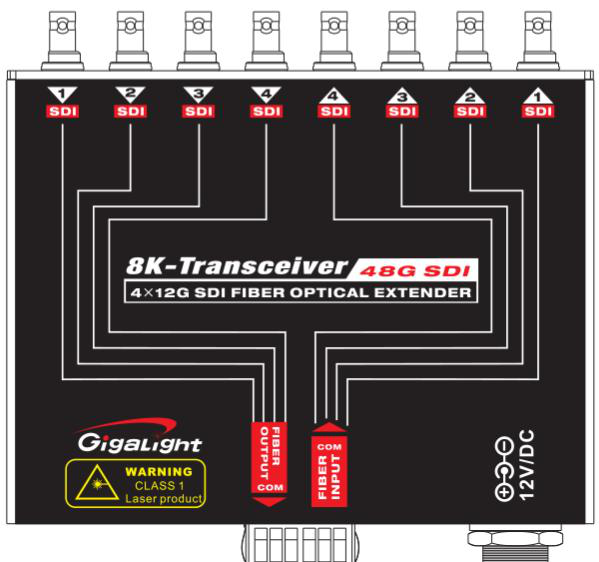

4 x 12G Mini SDI Optical Fiber Extender

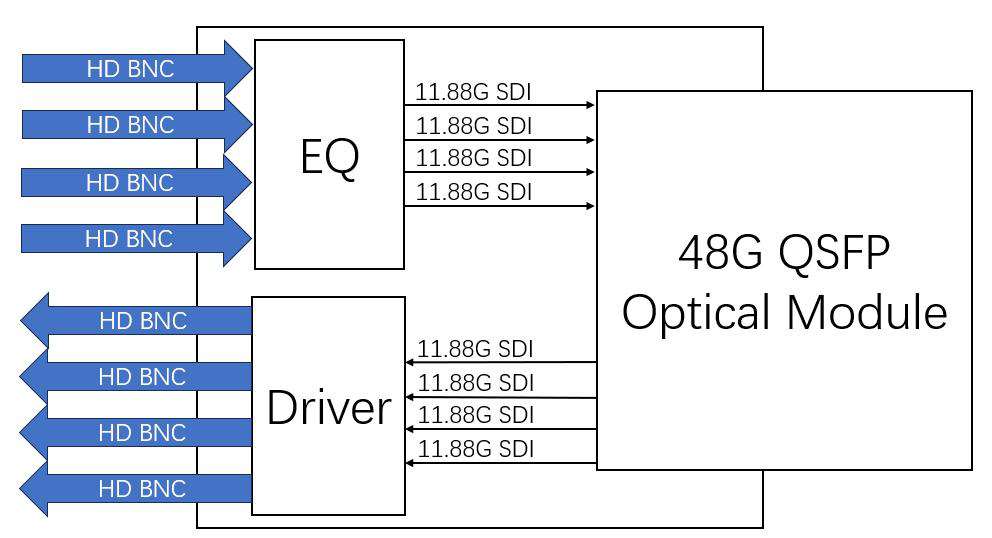

The G-SDI-E-4*12G-TRA enables the transmission of four independent lanes of 12G SDI signals over long distances, up to 20km, with data rates ranging from 125Mbps to 11.88Gbps. It supports various formats including MADI, DVB-ASI, SD-SDI, HD-SDI, 3G-SDI, and 6G UHD-SDI, ensuring compatibility with multiple applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supported Format SMPTE ST 2082-1 | 11.88Gbps |
| Supported Format SMPTE ST 2081-1 | 5.94Gbps |
| Supported Format SMPTE ST 424 | 2.97Gbps |
| Supported Format SMPTE ST 292 | 1.485Gbps |
| Supported Format SMPTE ST 259 | 360Mb/s |
| Supported Format DVB-ASI | 270Mb/s |
| Supported Format MADI | 125Mb/s |
| Co-axial Cable Equalizer Transmission Distance at 11.88Gbps | 70m, <0.2UI output jitter |
| Co-axial Cable Equalizer Transmission Distance at 5.94Gbps | 90m, <0.15UI output jitter |
| Co-axial Cable Equalizer Transmission Distance at 2.97Gbps | 180m, <0.1UI output jitter |
| Co-axial Cable Equalizer Transmission Distance at 1.485Gbps | 240m, <0.1UI output jitter |
| Co-axial Cable Equalizer Transmission Distance at 270Mb/s | 300m, <0.1UI output jitter |
| Operating Case Temperature Range | -10 to +70°C |
| Storage Temperature | -50 to +125°C |
| Power Supply Voltage | 5-12V |
| Operating Humidity | 5-85% non-cond |

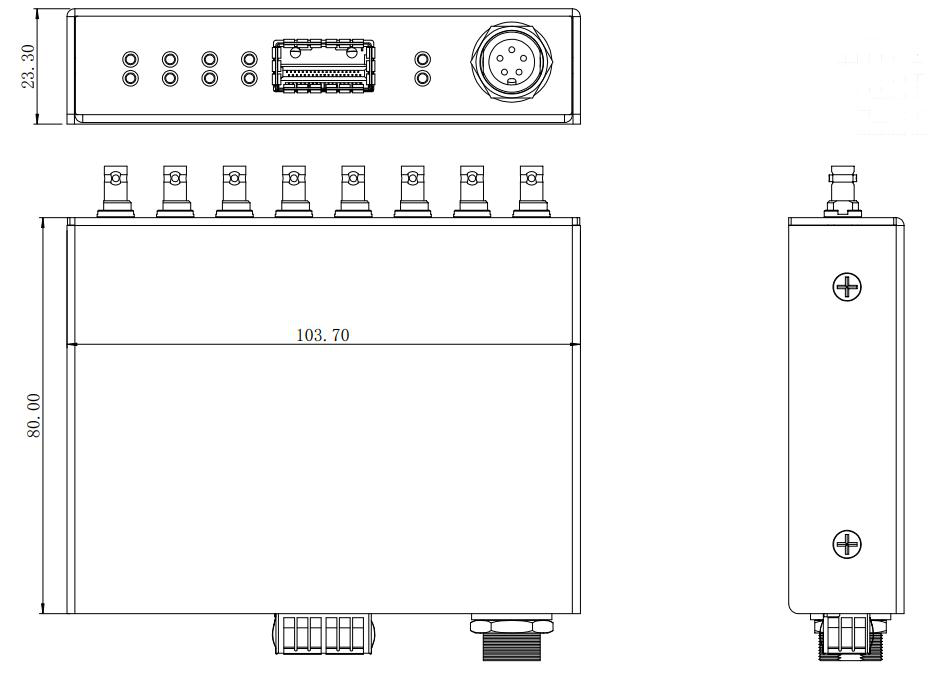

| Physical Dimensions | 103.7(W)x80(D)x23.3(H)mm |
| Wavelength | 1270nm/1290nm/1310nm/1330nm |
| Jitter | <2.0UI@10Hz, <0.3UI@100KHz |
| Output Swing | 800mV (+/-10%) |
| Overshoot | <10% |
| Rise/Fall Time at 3G-SDI | <135ps |
| Rise/Fall Time at 6G UHD-SDI | <80ps |
| Rise/Fall Time at 12G UHD-SDI | <45ps |
| Return Loss at 3GHz | >10dB |
| Return Loss at 6GHz | >7dB |
| Return Loss at 12GHz | >4dB |
