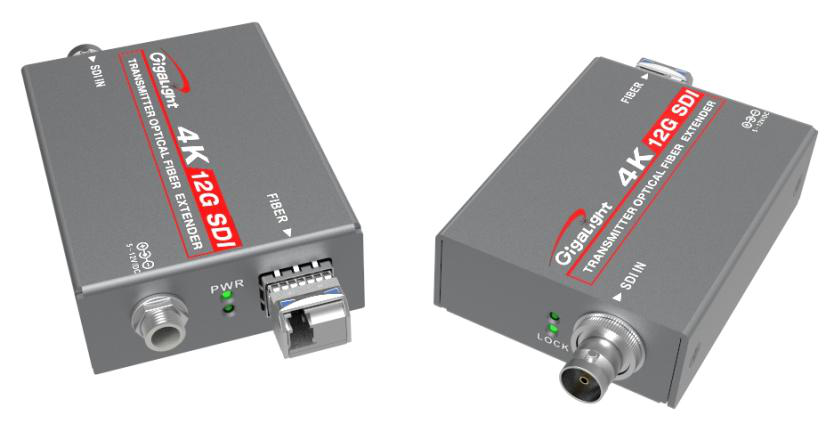

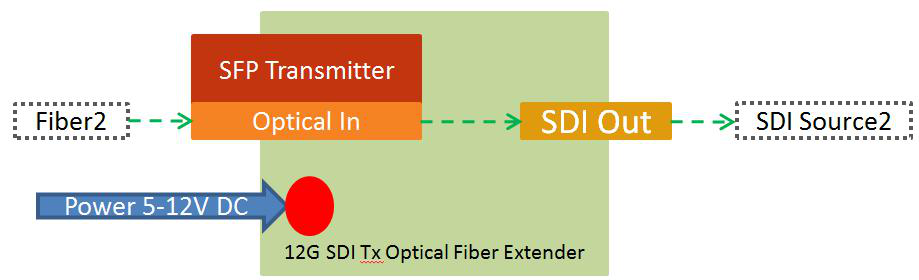

12G-SDI Optical Fiber Extender G-SDI-E-1*12G-Tx
The 12G-SDI optical fiber extender enables long-distance transmission of 12G SDI signals independently. It supports backward compatibility with MADI, DVB-ASI, SD-SDI, HD-SDI, 3G-SDI, and 6G UHD-SDI formats, with a maximum transmission distance of 80km at 3G-SDI and 20km at 12G-SDI.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Input Rate Detection | SD, HD, 3G, 6G, 12G |
| Transmission Distance | 80km (@3G SDI SFP transmitter), 20km (@12G SDI SFP transmitter) |
| Supported Format | SMPTE ST 2082-1 (11.88Gbps), SMPTE ST 2081-1 (5.94Gbps), SMPTE ST 424 (2.97Gbps), SMPTE ST 292-1 (1.485Gbps), SMPTE ST 259 (270Mbps), DVB-ASI (270Mbps), MADI (125Mbps) |
| Co-axial Cable Equalizer Embedded in Transmitter | 70m at 11.88Gbps: <0.2UI output jitter, 90m at 5.94Gbps: <0.15UI output jitter, 180m at 2.97Gbps: <0.1UI output jitter, 240m at 1.485Gbps: <0.1UI output jitter, 300m at 270Mbps: <0.1UI output jitter |
| Operating Temperature Range | -10°C to +70°C |
| Power Supply | 5-12V DC |
| Storage Temperature | -20°C to +105°C |
| Power Supply Voltage | 4.5V to 24V |
| Power Supply Current (without transceivers) | 150mA to 200mA |

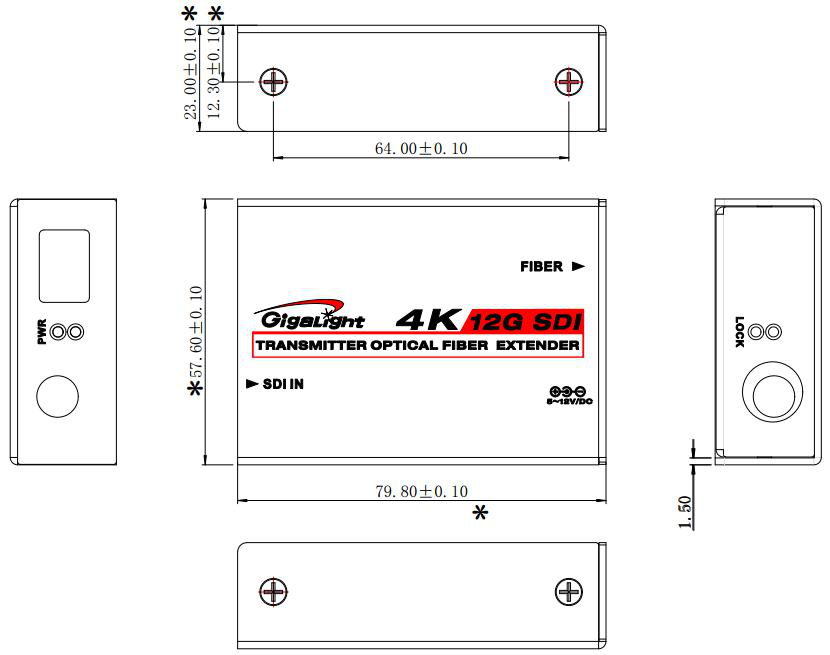

| Physical Dimensions | 79.8(W)x57.6(D)x23(H) mm |
| Weight | 80g |
| Wavelength | 1270nm/1290nm/1310nm/1330nm |
| Output Swing | 800mV (+/-10%) |
| Overshoot | <10% |
| Rise/Fall Time | <135ps @3G-SDI, <80ps @6G UHD-SDI, <45ps @12G UHD-SDI |
| Return Loss | >15dB @1.5GHz, >10dB @3GHz, >7dB @6GHz, >4dB @12GHz |
| Jitter | <2.0UI @10Hz, <0.3UI @100KHz |
