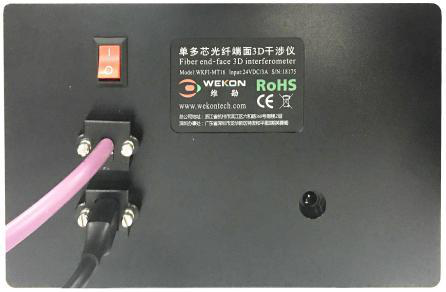

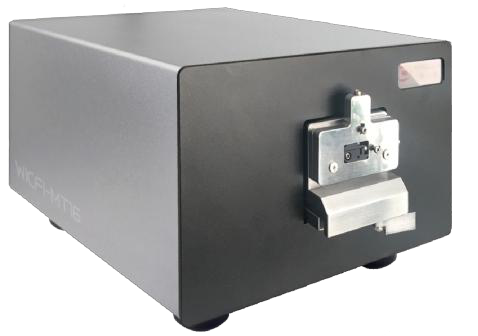

FA Fiber Endface Interferometer

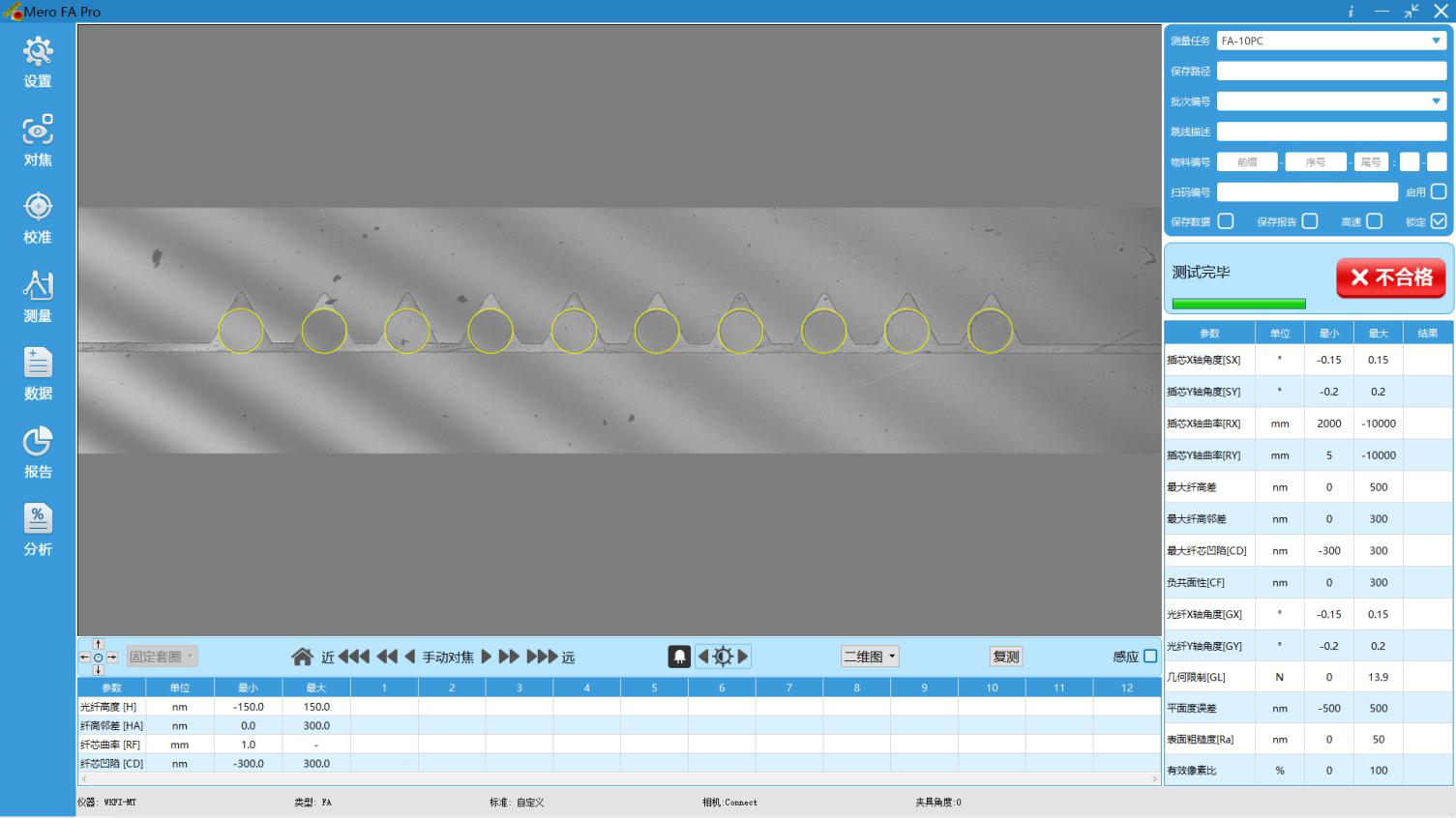

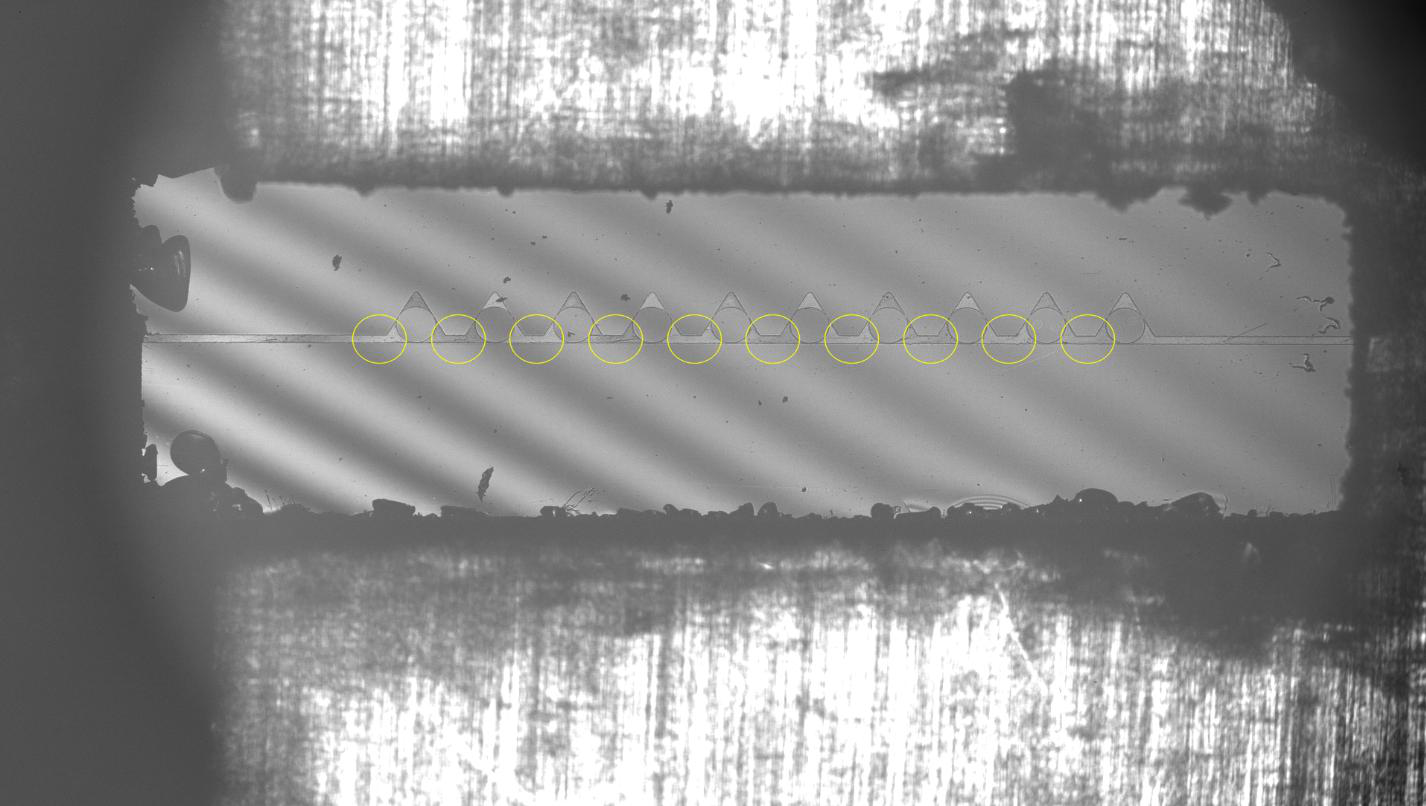

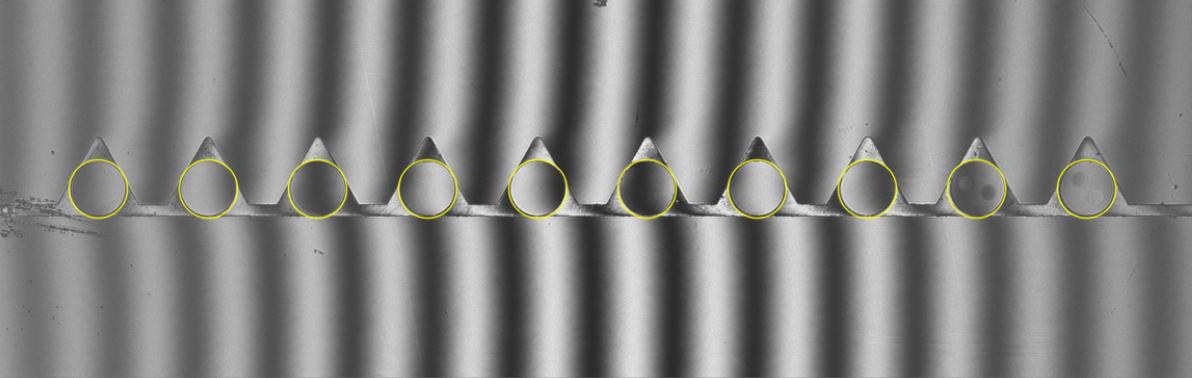

This product is a high-precision non-contact FA fiber connector endface interferometer. It uses white light and red light interference to restore the original endface three-dimensional topography and calculate technical parameters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CPU | Intel i3 |
| Memory | 8GB |
| USB Ports | 1 USB2.0 port, 1 USB3.0 port |
| Display Resolution | 1920*1080 |
| Operating System | Windows10 |
| Power Input | AC100-240V |
| Power Output | DC24V/1.67A |
| Operating Temperature | 16-26°C |
| Operating Humidity | 30-60% |
| Insertion Loss | ≤4.0 |
| Fiber Diameter | 126um |
| Fiber Bending | 250um |
| Fiber Cutting Angle | 0-12° |
| Fiber Endface | Flatness ≤0.02° |
| Fiber Endface Angle | ≤0.2° |
| Fiber Endface Roughness | ≤0.02um |
| Fiber Endface Curve | ≤0.02um |
| Fiber Endface Deviation | ≤0.02um |
Applications
Key Features
Datasheet
