Ribbon Tester

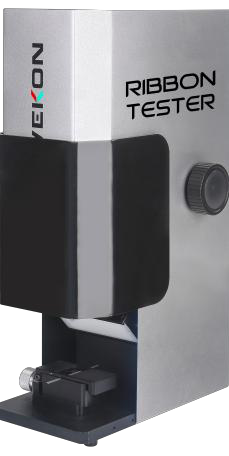

The Ribbon Tester is designed to ensure the correct color sequence of optical fiber ribbons during production. It uses high-resolution imaging and advanced image processing technology to identify and verify the color sequence, ensuring the quality of optical fiber ribbons, reducing labor intensity, and improving production efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Focus Adjustment Wheel | Adjusts the height of the imaging system to display clear images of the fiber ribbon. |
| Light Source | Provides stable and uniform light for imaging. Input: AC100-240V/50-60Hz, Output: 24VDC/1A, DC plug specification: 5.5*2.1. |
| Fiber Support | Used to stabilize the placement of optical fibers and provide a clean background for imaging. |
| USB2.0 Data Cable | Connects the ribbon tester to the computer for image transmission. |
| Background Board | Ensures a clean background for imaging. Available in black and white options. |
