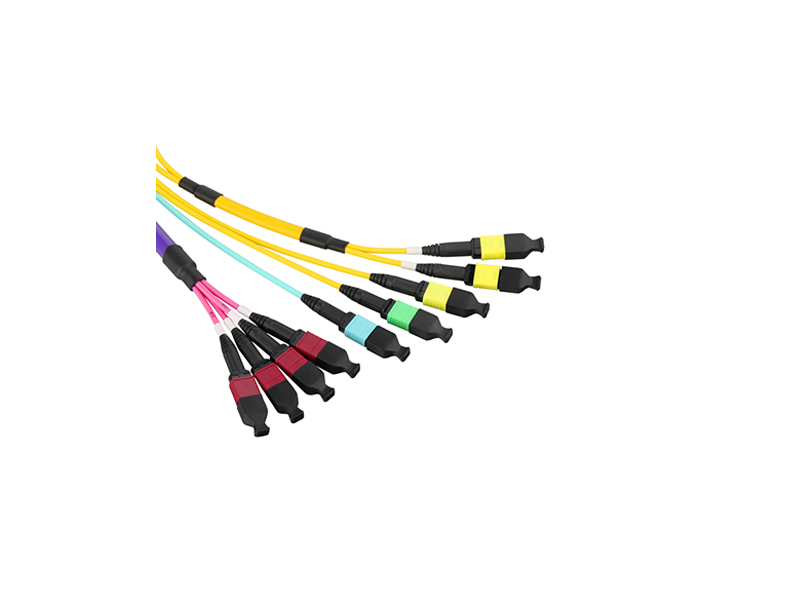

MPO Fiber Optic Patch Cable
MPO fiber optic patch cables are designed for high-density fiber optic networks, offering reliable and efficient connectivity solutions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Connector Type | MPO |
| Fiber Type | Single-mode, Multimode |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥60dB |
| Operating Temperature | -40°C to +85°C |
| Tensile Strength | ≥100N |
| Fiber Count | 12, 24, 48 fibers |
Applications
Key Features
Datasheet
