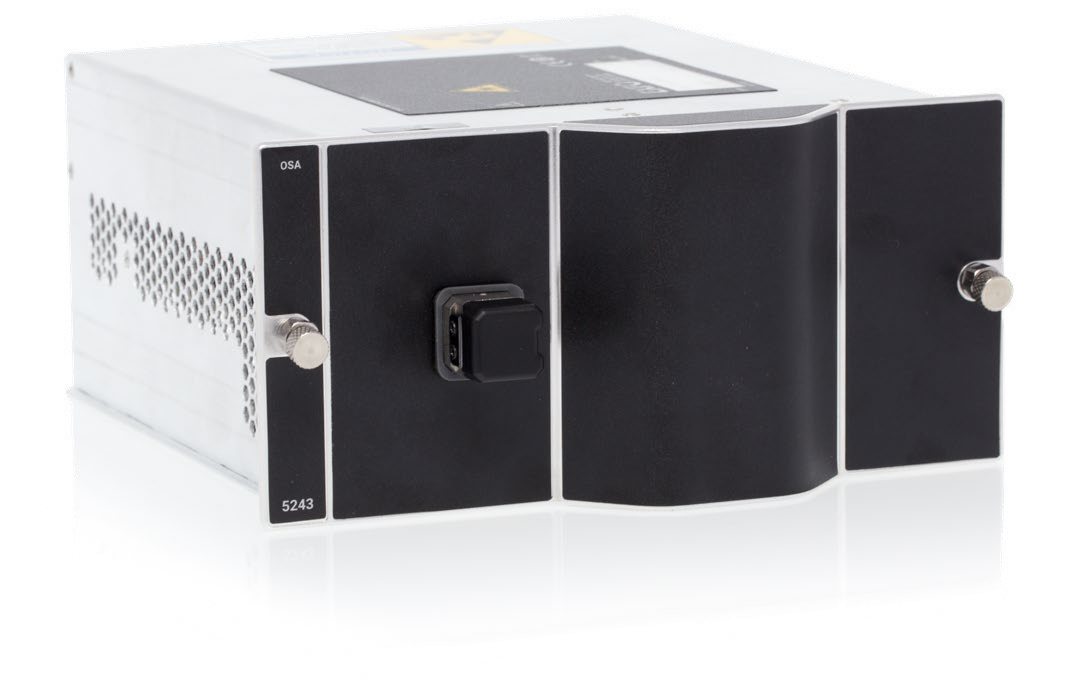

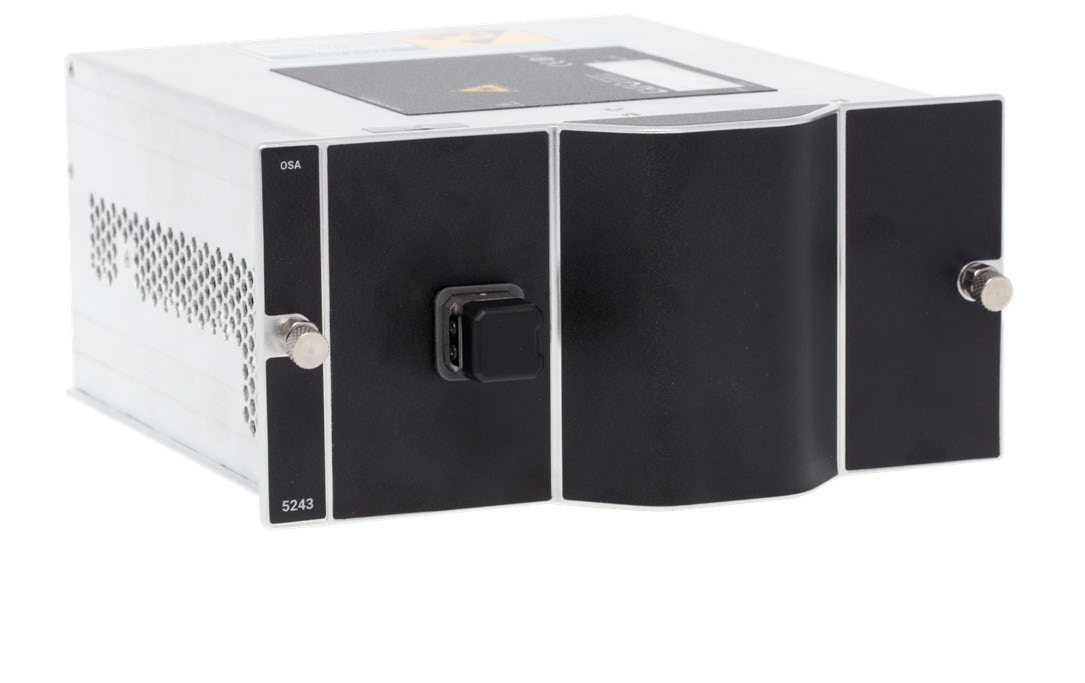

FTBx-5243-HWA
The FTBx-5243-HWA is a high wavelength accuracy optical spectrum analyzer designed for DWDM, CWDM, and DWDM over CWDM networks. It offers best-in-class wavelength accuracy and is ideal for transceiver testing, manufacturing, and DWDM analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) | 1250 to 1650 |

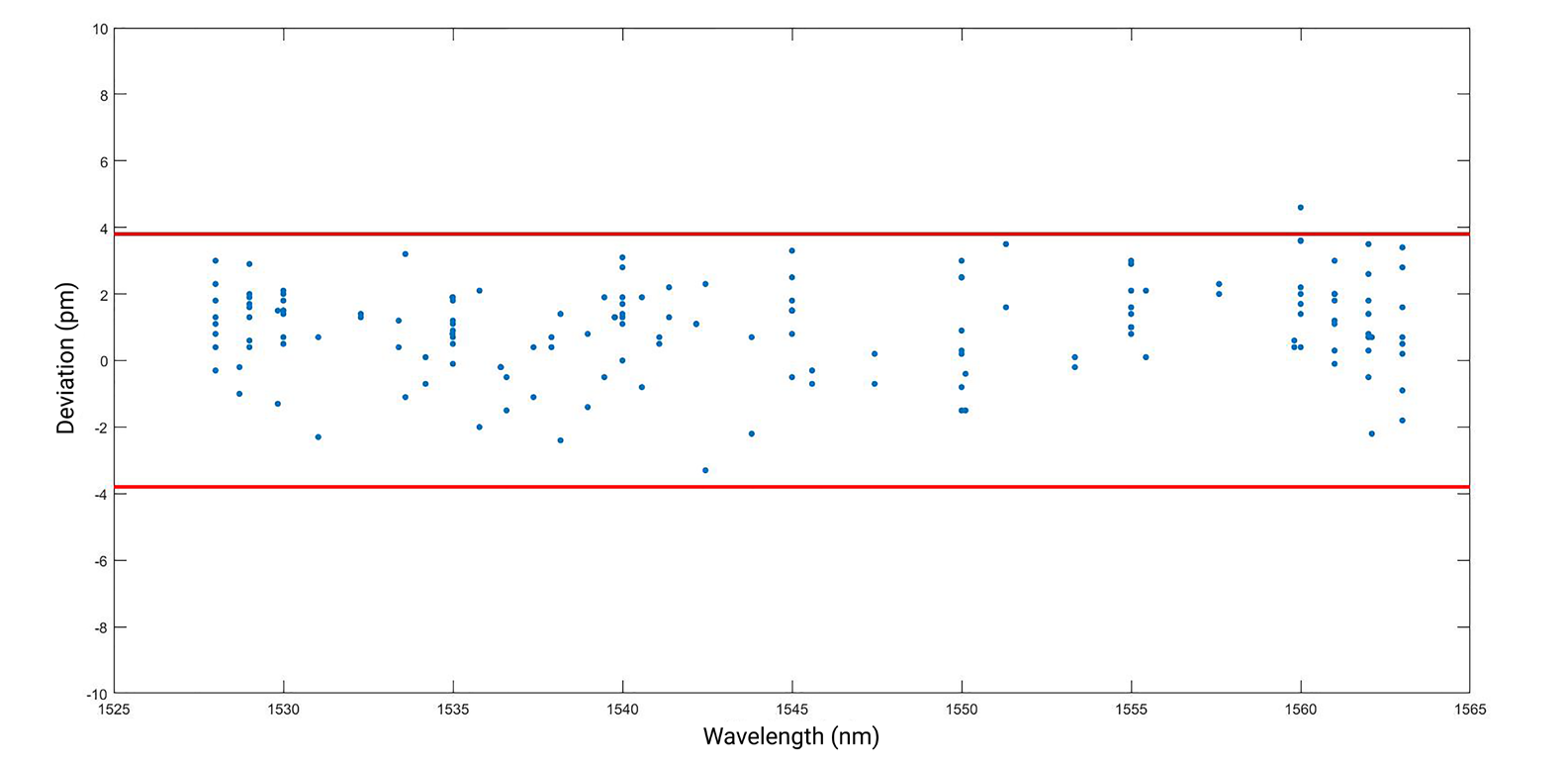

| Wavelength Uncertainty (pm) | ±10, ±25, ±4, ±10 |
| Reference | Internal gas cell |
| Resolution Bandwidth (FWHM) (nm) | 0.05 |
| Wavelength Linearity (nm) | ±0.003 |
| Wavelength Repeatability (nm) | <0.001 |
| Dynamic range (dBm) | -80 to 18 |
| Maximum Total Safe Power (dBm) | 23 |
| Power Uncertainty (dB) | ±0.5 |
| Power Repeatability (dB) | ±0.02 |
| ORL (dB) | >=40 |
| Measurement Time (s) | <1 |
| Optical Rejection Ratio at 1550 nm (dB) | 40 typical at 0.2 nm (25 GHz), 45 typical at 0.4 nm (50 GHz) |
| Channel Spacing (GHz) | 12.5 to 200 GHz, CWDM |
| PDL at 1550 nm (dB) | <0.06 |
| Modulation Formats | Any, including all coherent/Pol-Mux formats like DP-QPSK, DP-BPSK, DP-8-QAM, DP-16-QAM, DP-64-QAM |
| Data Signals | Up to 400 Gbit/s |
| Size (H x W x D) | 75mm x 159mm x 185mm |
| Weight | 1.4kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 50°C |
| Relative Humidity | <95% non-condensing |
| Connectors | EI (EXFO UPC universal interface), EA (EXFO APC universal interface) |
