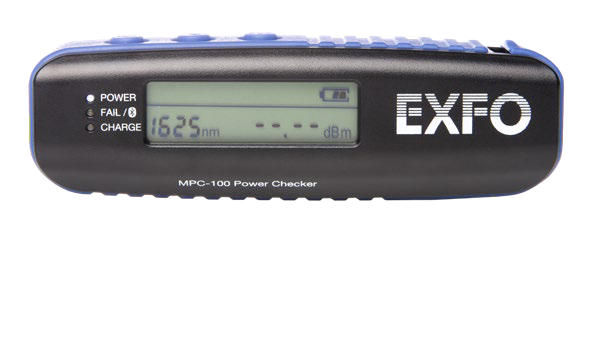

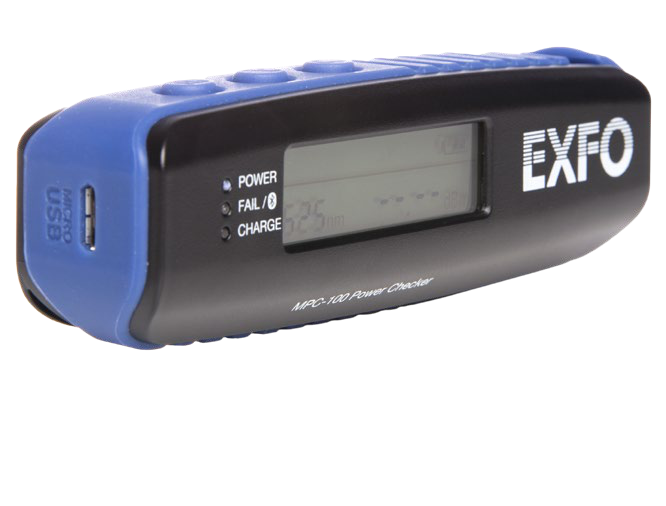

MPC-100 Optical Power Checker

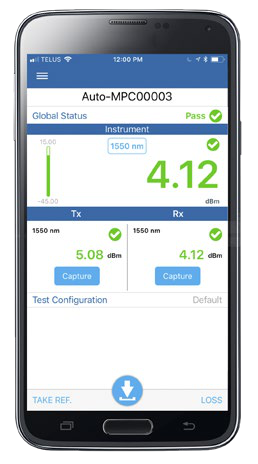

The MPC-100 Optical Power Checker is a compact and portable device designed for optical power measurement. It offers wireless connectivity via Bluetooth and is compatible with Android and iOS devices, making it ideal for field testing and data management.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (nm) MPC-103 | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Wavelength Range (nm) MPC-103X | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| Range (dBm) MPC-103 | -60 to 10 |
| Range (dBm) MPC-103X | -45 to 23 |
| Uncertainty (dB) | ±0.5 |
| Resolution (dB) | 0.01 |

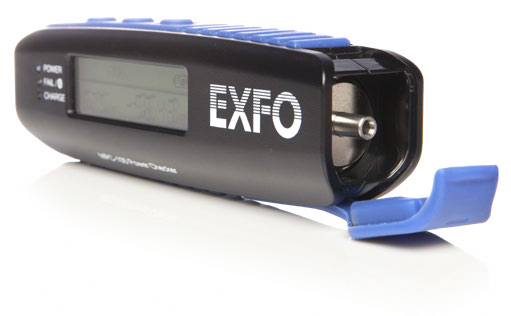

| Adapter Type | Standard: universal 2.50mm; Optional: universal adapter for 1.25mm |
| Bluetooth Version | 4.0 BLE (4m) |
| Smart Device OS Compatibility | Android 5.1 and above, iOS 9.3 and above |
| Battery Autonomy | 3h continuous |
| Storage Capacity | 100 measurements internal (virtually unlimited via smart device and cloud) |
| Size (HxWxD) | 32mm x 102mm x 24mm |
| Weight | 70g (0.15lb) |
