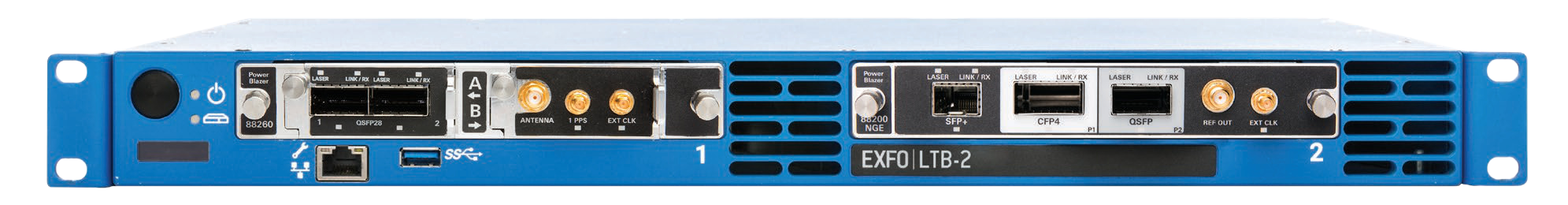

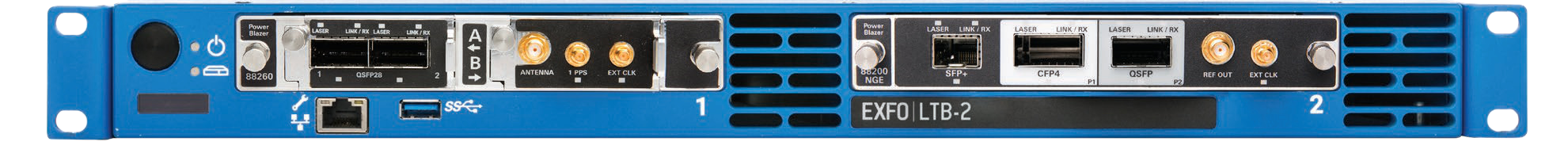

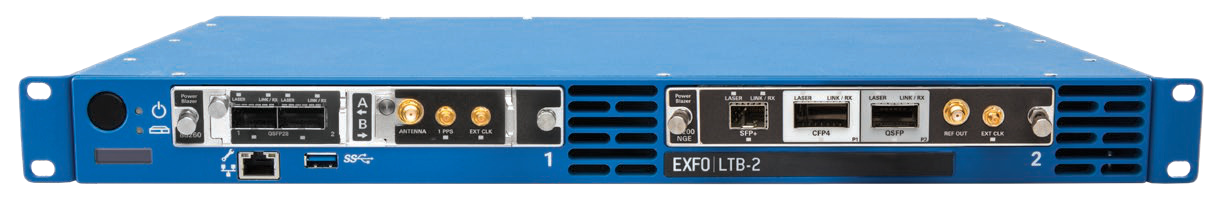

LTB-2 Rackmount Platform
The LTB-2 is a powerful, scalable, two-slot modular rackmount platform designed for optical and multiservice testing in central office/headend environments, data centers, DCI's, and labs/manufacturers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mainframe | Quad-core Intel processor/16GB RAM/Windows 10 |
| Interfaces | 3 x RJ45 LAN 10/100/1000Mbit/s, 6 x USB3.0 port |
| Storage | 256GB SSD |
| Power Supply | Dual -48V input, 10A |
| Dimensions | 44mm x 482mm x 262mm (1¾in x 19in x 10⅜in) |
| Weight | 4.9kg (11lb) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
Applications
Key Features
Datasheet
