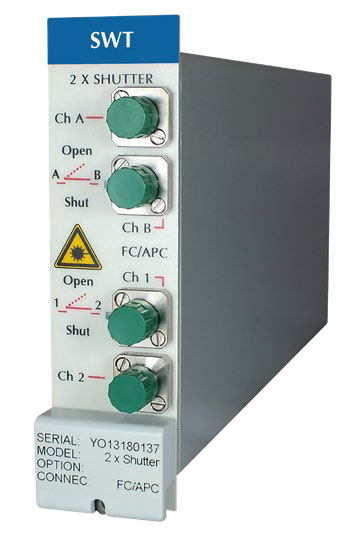

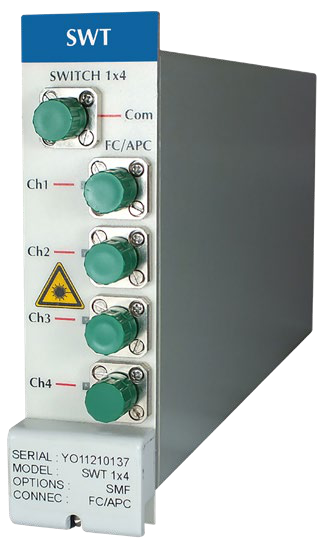

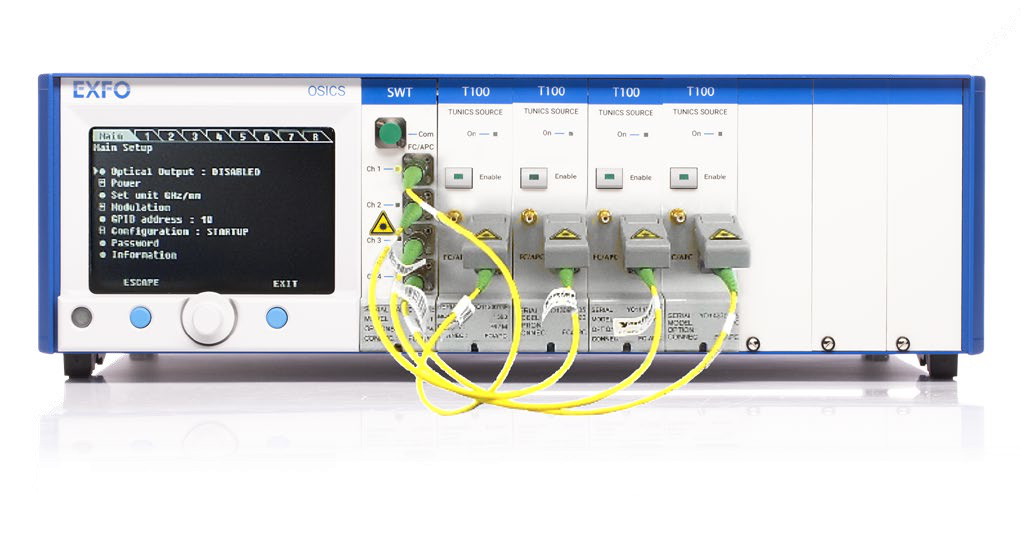

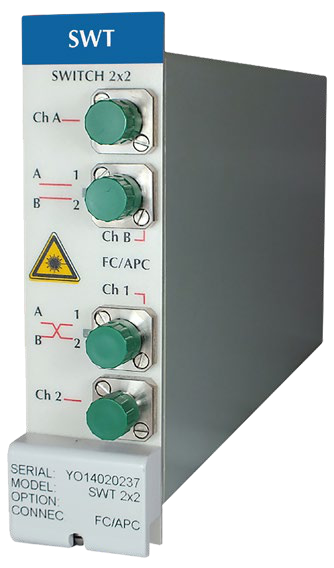

OSICS SWT Optical Switches and Shutters
The OSICS SWT is a full suite of fiber optic switch and shutter modules based on optical prism technology, designed for automating test setups and reducing measurement uncertainties in laboratory and manufacturing environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) SMF 1x1 Shutter | ≤1 |
| Insertion Loss (dB) SMF 2x(1x1) Shutter | ≤1 |
| Insertion Loss (dB) SMF 1x2 Switch | ≤1 |
| Insertion Loss (dB) SMF 1x4 Switch | ≤1 |
| Insertion Loss (dB) SMF 2x2 Switch | ≤1 |
| Insertion Loss (dB) PMF 1x1 Shutter | ≤1.5 |
| Insertion Loss (dB) PMF 2x(1x1) Shutter | ≤1.5 |
| Insertion Loss (dB) PMF 1x2 Switch | ≤1.5 |
| Insertion Loss (dB) PMF 1x4 Switch | ≤1.5 |
| Insertion Loss (dB) PMF 2x2 Switch | ≤1.5 |
| Polarization-Dependent Loss (dB) SMF | ≤0.1 |
| Polarization-Dependent Loss (dB) PMF | N/A |
| Polarization Extinction Ratio (dB) SMF | N/A |
| Polarization Extinction Ratio (dB) PMF | ≥20 |
| Repeatability (dB) SMF | ≤0.005 |
| Repeatability (dB) PMF | ≤0.01 |
| Return Loss (dB) SMF | ≥55 |
| Return Loss (dB) PMF | ≥55 |
| Crosstalk (dB) SMF | ≥55 |
| Crosstalk (dB) PMF | ≥55 |
| Switching Time | <30ms |
| On/Off Ratio (dB) 1x1 Shutter | ≥80 |
| On/Off Ratio (dB) 2x(1x1) Shutter | ≥65 |
| Spectral Range (nm) SMF | 1260-1630 |
| Spectral Range (nm) PMF | 1480-1630, 1240-1510 |
| Connector Type | FC/APC narrow key |
| Input/Output Fiber Type | SMF-28 fiber, PM15 or PM13 |
| Synchronization | OUT: ≤50ms TTL pulses |
| Power Monitoring | No |
| Dimensions (HxWxD) | 128mmx35mmx230mm |
| Weight | 1kg |
| Temperature range | 15°C to 35°C |
