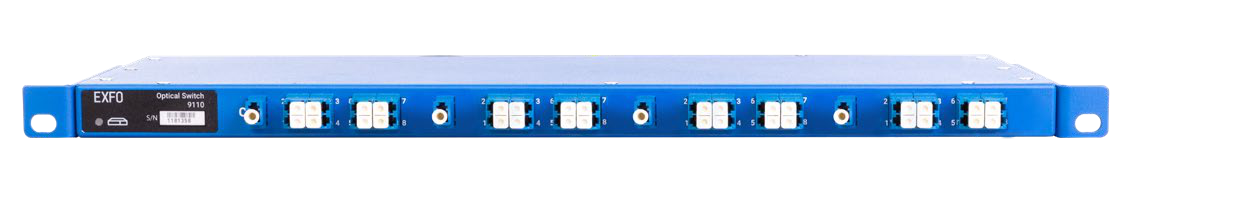

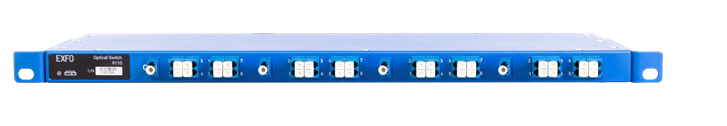

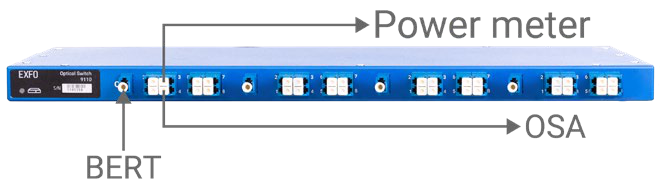

LTBe-9110 MEMS Optical Switch
The LTBe-9110 MEMS Optical Switch is a high-performance fiber-to-fiber switching solution designed for demanding manufacturing applications. It offers precise and repeatable switching with a compact design and long product lifespan.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x4 | 0.9 |
| Insertion Loss (dB) 1x8 | 1.2 |
| Operating Wavelength (nm) | 1240 to 1680 |
| Repeatability (dB) | ±0.02 |
| Backreflection (dB) | -50 |
| Crosstalk (dB) 1x4 | 50 |
| Crosstalk (dB) 1x8 | 60 |
| Polarization-Dependent Loss (dB) | 0.15 |
| Switching Time (ms) | <30 |
| Fiber Type | Singlemode 9/125 μm |
| Input Power (Damage Threshold) (dBm) | 27 |
| Size (HxWxD) | 22mmx440mmx203mm |
| Switch Life | 1 billion (10^9) cycles minimum |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Maximum Relative Humidity | 80% non-condensing at 40°C |

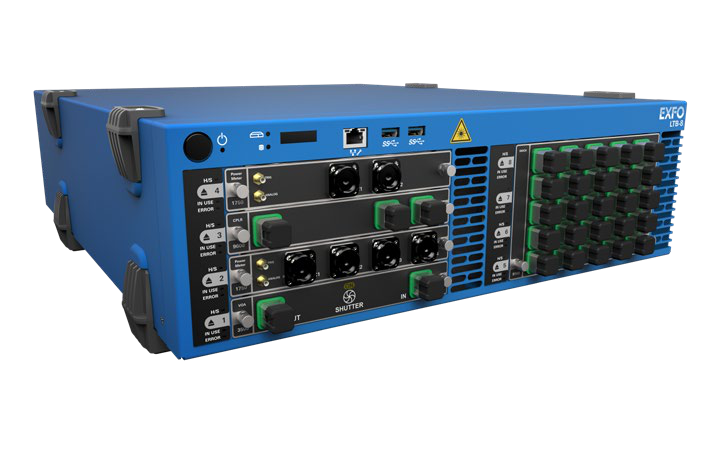

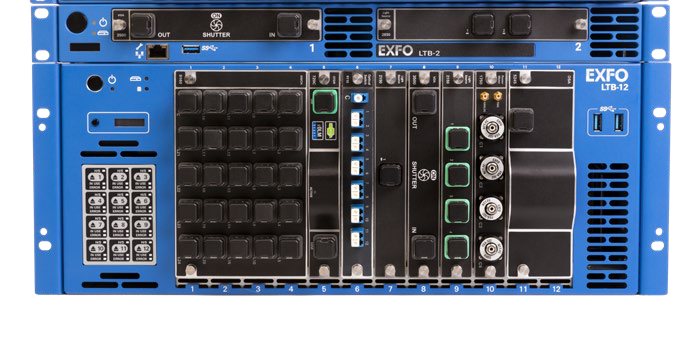

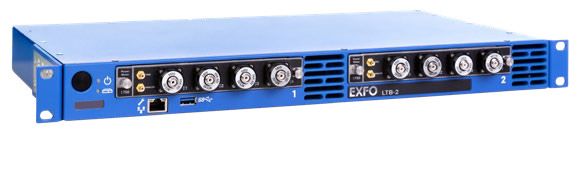

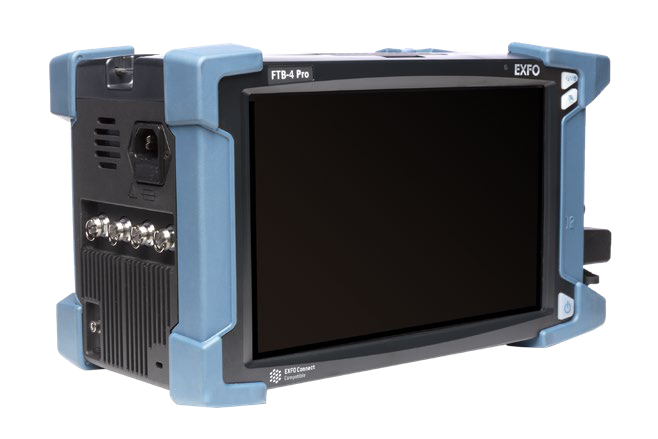

| Operation | Via LTB and FTB platform services: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232 |
| Instrument Drivers | IVI drivers |
| Instrument Drivers | SCPI commands and REST API |
| Remote Control | USB cable |
| Remote Control | user guide |
| Remote Control | rackmount bracket and test report |
Applications
Key Features
Datasheet
