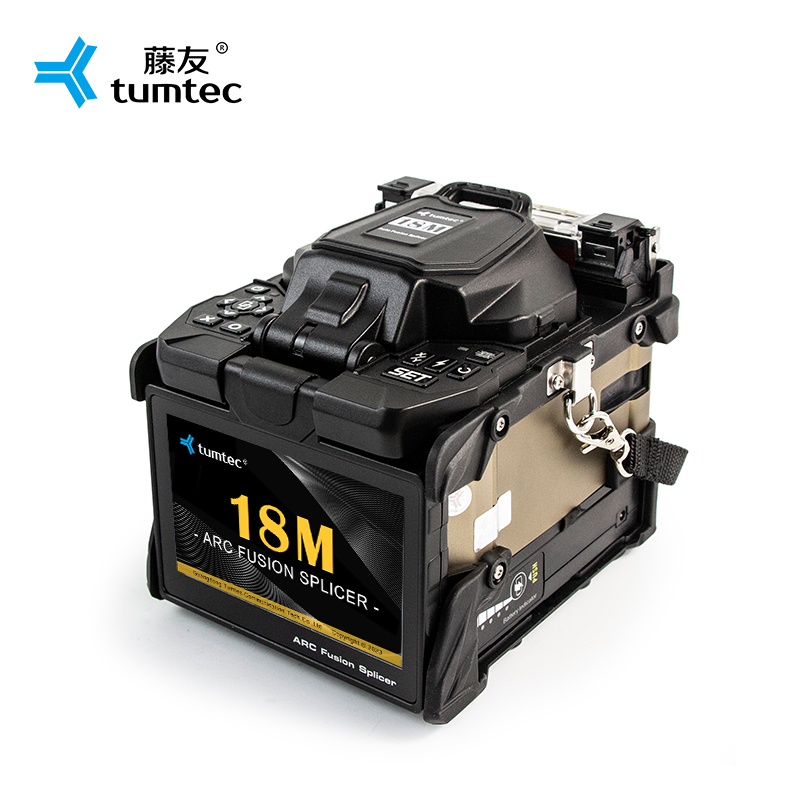

18M Optical Fiber Fusion Splicer
The Tumtec 18M Optical Fiber Fusion Splicer is a high-precision device designed for efficient and reliable fiber optic splicing. It features advanced alignment technology, robust environmental adaptability, and user-friendly operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber Type | SM(ITU-TG.652), MM(ITU-TG.651), DS(ITU-TG.653), NZ/NZDS(ITU-TG.655), BI(ITU-TG.657) |
| Applicable Fiber Diameter | 0.25–3.0mm Indoor Cable |
| Fiber Cladding and Coating Diameter | Φ0.125–1mm/Φ8–16mm |
| Fiber Cutting Angle | ≤0.5° |
| Average Splicing Loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
| Return Loss | ≥60dB |
| Illumination | 3 high-power LED lights |
| Splicing Mode | SM FAST mode; 6 types |
| Splicing Speed | 6s |
| Heating Mode | Preheat 14 types, store 100 types |
| Heating Speed | 20–60s |
| Heating Cycles | ≥280 |
| Tensile Test | 1.5–2.0N |
| Fiber Magnification and Display | X,Y,X/Y magnification 400x |
| Power Input | AC100–240V, DC12–15V |
| Battery Capacity | 6800mAh |
| Operation Mode | Touch screen operation |
| Battery Life | 3000 cycles |
| Data Interface | Mini USB 2.0 |
| Fiber Alignment | Core alignment |
| Fiber Alignment | cladding alignment |
| Main Unit Dimensions | 140×165×160mm (W×L×H) |
| Operating Conditions | 0–5000m, relative humidity ≤95%, -10–50°C, 15m/s wind speed |
| Storage Conditions | -40–80°C, relative humidity ≤95%, 20–30°C battery storage |
| Weight | 2245g (including battery) |
