FiberView Benchtop Digital Microscope FV-3100
The FV-3100 (FiberView) is Lightel's benchtop digital microscope for inspecting and capturing images of large-core fibers. The large 1400μm x 1000μm field of view can inspect fibers up to 1mm, and digital zoom can be used for extra detail. When it is important to see a larger area of a connector, FiberView can also be used for 125μm fibers.
Save to Favorites
Overview

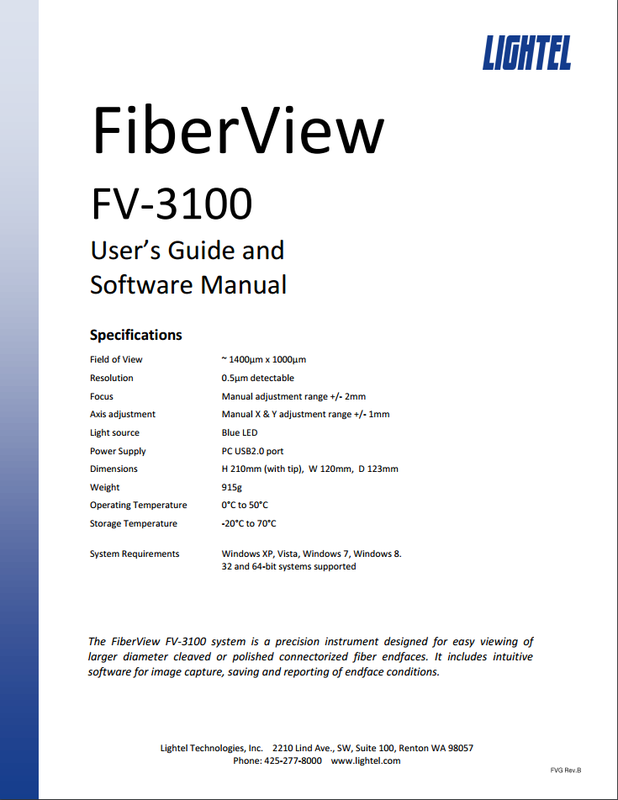

Specifications
| Parameter | Value |
|---|---|
| Field of View | ~ 1400 µm x 1000 µm |
| Resolution | 0.5 µm detectable |
| Focus | Manual adjustment range ±2 mm |
| Axis Adjustment | Manual X & Y adjustment range ±1 mm |
| Light source | Blue LED |
| Power supply | PC USB2.0 port |
| Dimensions | H 210 mm (with tip), W 120 mm, D 123 mm |
| Weight | 915 g |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| System Requirements | Windows XP, Vista, Windows 7, Windows 8 |
| (FiberView software) | 32 and 64-bit systems supported |
