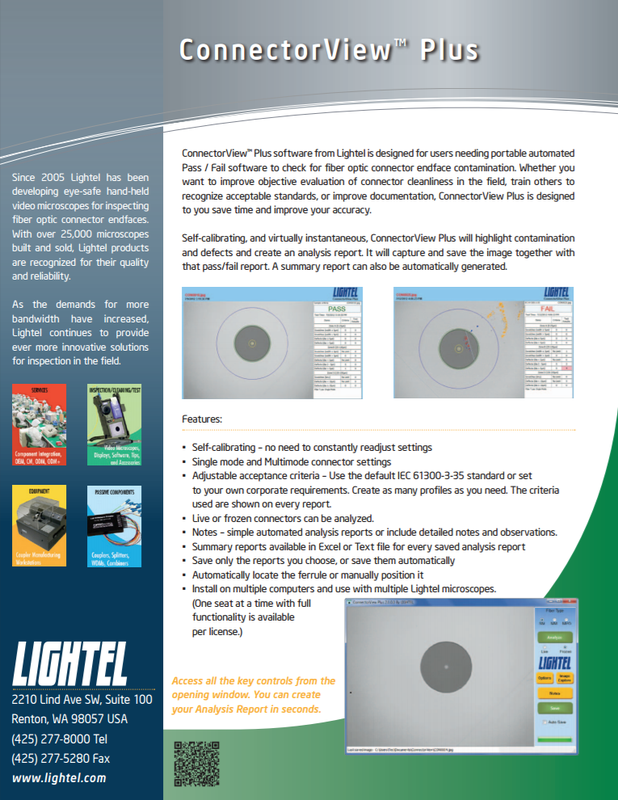

CONNECTORVIEW PLUS Software

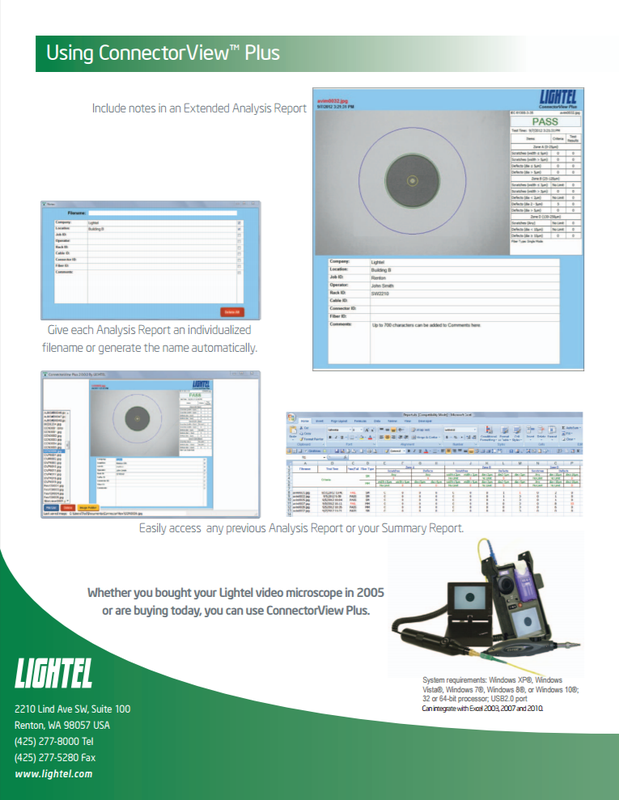

ConnectorView™ Plus software from Lightel is designed for users who need portable automatic pass/fail software to inspect fiber connector end-face contamination. Whether you want to improve the objective assessment of field connector cleanliness, train others to recognize acceptable standards, or improve documentation, ConnectorView Plus is designed to save you time and improve accuracy. Auto-calibrating and nearly instantaneous, ConnectorView Plus will highlight contamination and defects and create analysis reports. It will capture and save images along with the pass/fail report. Summary reports can also be generated automatically. ConnectorView Plus v2 offers a brand-new, easier-to-use interface and adds other new features. It is available as a free upgrade for existing ConnectorView Plus users.
Save to Favorites
Overview
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
FiberView Benchtop Digital Microscope FV-3100
Tools and Kits
Lightel
Field of View: ~ 1400 µm x 1000 µm Resolution: 0.5 µm detectable Focus: Manual adjustment range ±2 mm
The FV-3100 (FiberView) is Lightel's benchtop digital microscope for inspecting and capturing images of large-core fibers. The large 1400μm x 1000μm field of view can inspect fibers up to 1mm, and digital zoom can be used for extra detail. When it is important to see a larger area of a connector, FiberView can also be used for 125μm fibers.
-
Series 1 tips
Tools and Kits
Lightel
Lightel currently offers over 60 standard and specialty tips for our Series 1 video microscope probes (black probes). All listed tips fit CI-1000 and VC-6100-PL probes. These tips can be used with CI-1100, DI-1000 or VC-6200-PL probes (gray probes) by using the PT2-CI / ADAPT adapter.
-
Series 2 tips
Tools and Kits
Lightel
Lightel currently offers over 80 standard and specialty tips for our Series 2 video microscope probes (gray probes). All listed tips fit DI-1000, CI-1100, VC-6200-PL and VC-8200 probes. (These tips cannot be used with CI-1000 or VC-6100 probes - black probes.)
-
ViewConn tips
Tools and Kits
Lightel
Universal tip for 2.5mm male PC type connectors: VC62-2.5/PC Universal tip for 1.25mm male PC type connectors: VC62-1.25/PC Universal tip for 2.0mm male PC type connectors: VC6-2.0/PC
ViewConn tips are only for male connectors. VC-6100 and VC-6200 tips are not compatible. The correct tip product for the ViewConn model must be selected. Contact Lightel or a Lightel distributor for more information about our tip products.
