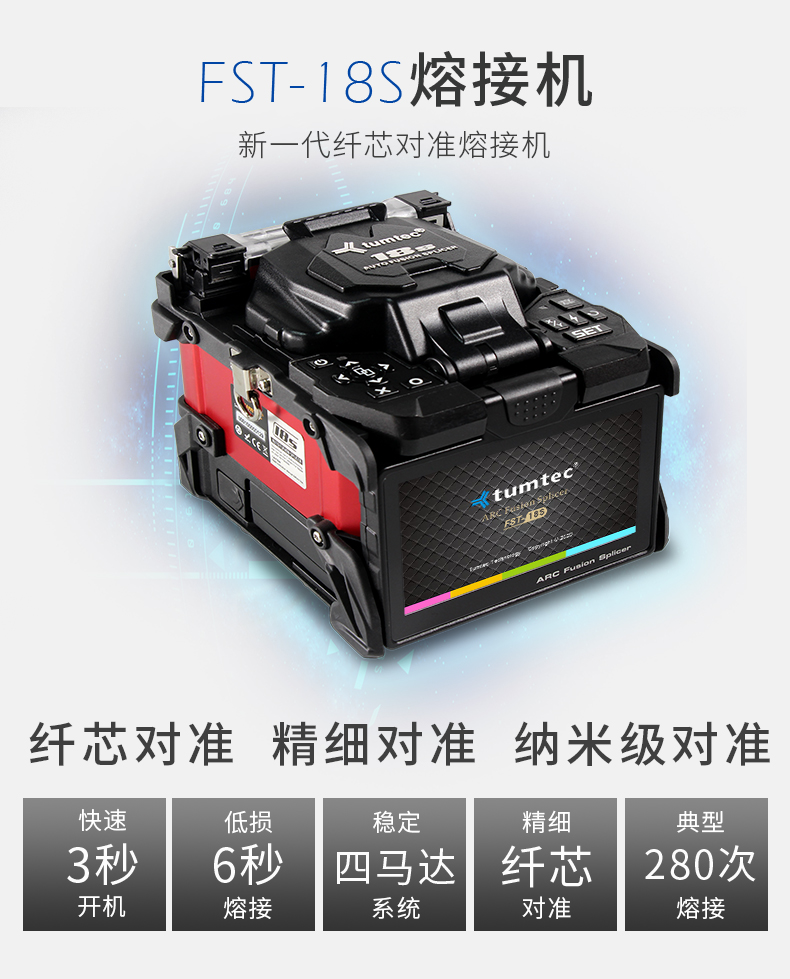

FST-18S Fusion Splicer
The FST-18S Fusion Splicer is a next-generation fiber alignment precision splicing machine designed for efficient and accurate fiber optic splicing. It features advanced PAS direct vision technology, a high-performance quad-core CPU, and a durable aerospace-grade alloy material for reduced weight and enhanced portability.
Save to Favorites
Overview

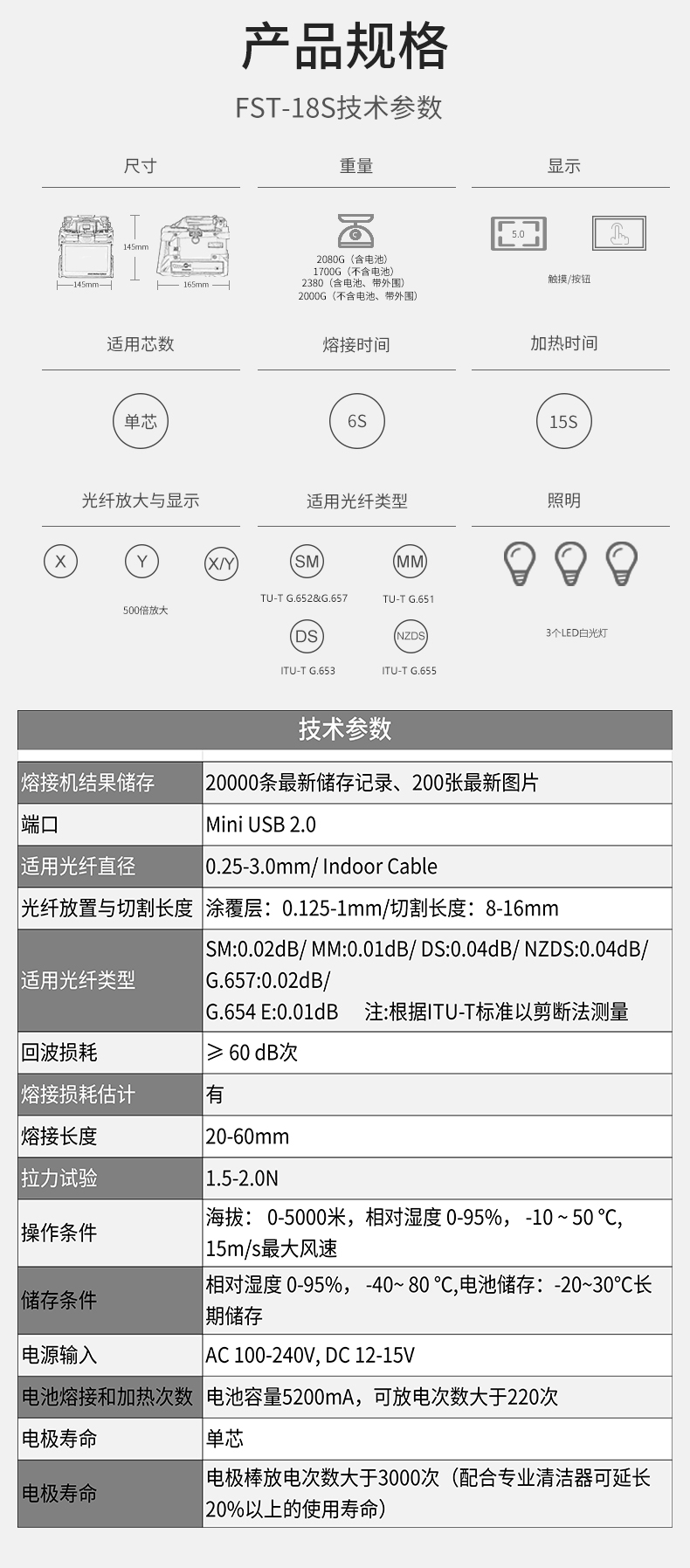

Specifications
| Parameter | Value |
|---|---|

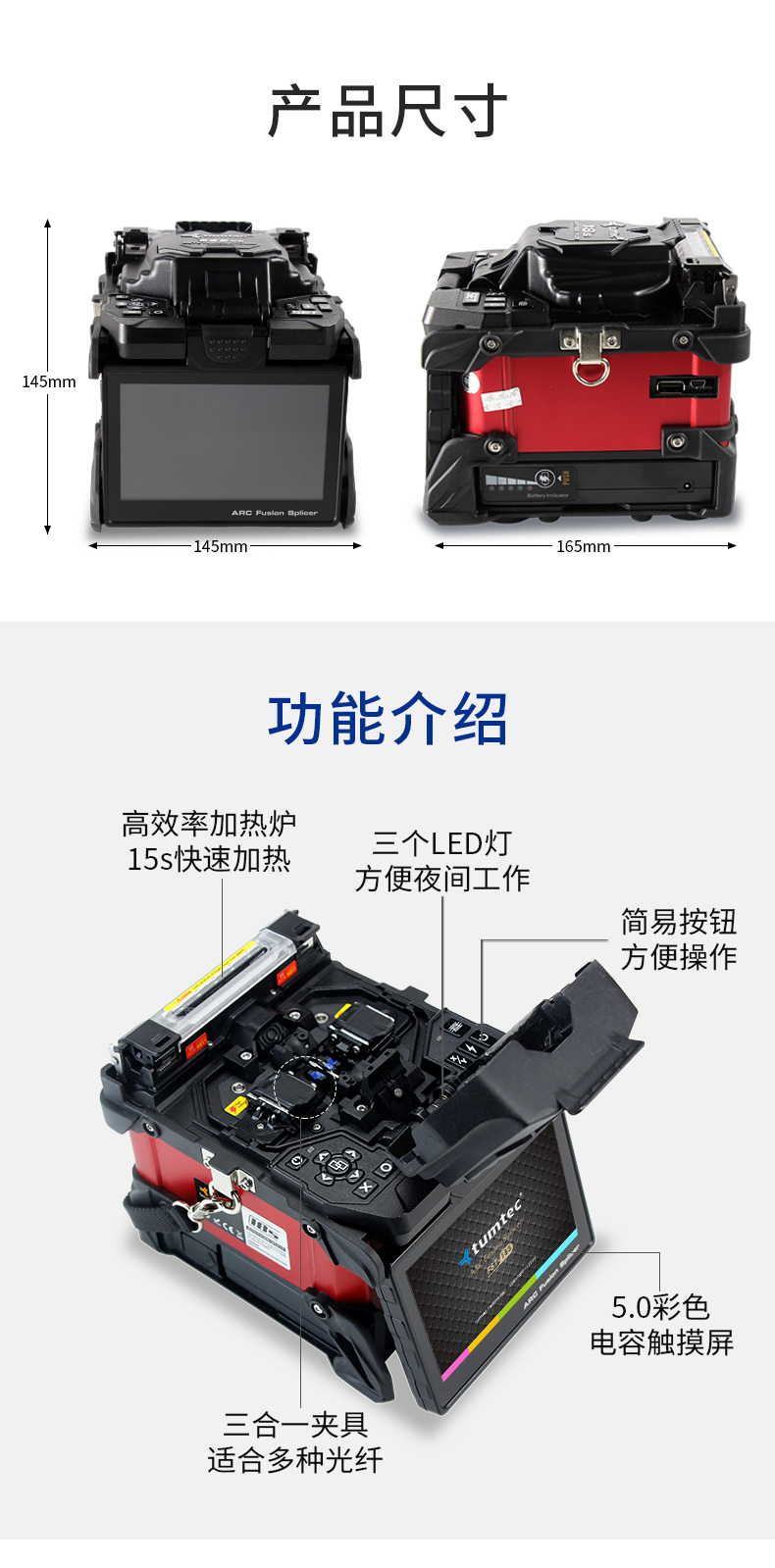

| Dimensions | 145mm x 165mm |

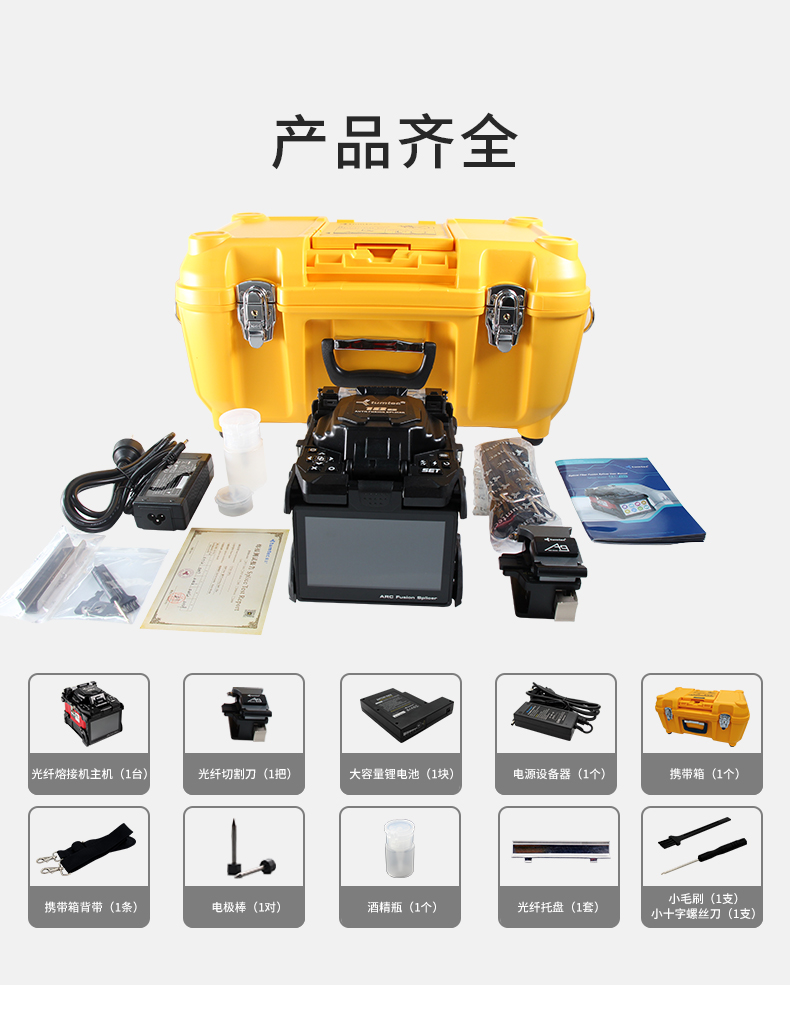

| Weight | 2080g (with battery), 1700g (without battery), 2380g (with battery, including accessories), 2000g (without battery, including accessories) |
| Display | 5.0-inch touch screen |
| Applicable Fiber Core | Single core |
| Splicing Time | 6s |
| Heating Time | 15s |
| Fiber Magnification and Display | 500x |
| Applicable Fiber Types | SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Splicer Result Storage | 20000 latest records, 200 latest images |
| Port | Mini USB 2.0 |
| Applicable Fiber Diameter | 0.25-3.0mm/Indoor Cable |
| Fiber Placement and Cutting Length | Coating layer: 0.125-1mm/Cutting length: 8-16mm |
| Applicable Fiber Type Loss | SM: ≤0.02dB, MM: ≤0.01dB, DS: ≤0.04dB, NZDS: ≤0.04dB, G.657: ≤0.02dB, G.654 E: ≤0.01dB |
| Return Loss | ≥60dB |
| Splicing Loss Estimation | Available |
| Splicing Length | 20-60mm |
| Tensile Test | 1.5-2.0N |
| Operating Conditions | Altitude: 0-5000m, Relative humidity: 0-95%, -10~50°C, Max wind speed: 15m/s |
| Storage Conditions | Relative humidity: 0-95%, -40~80°C, Battery storage: -20~30°C for long-term storage |
| Power Input | AC 100-240V, DC 12-15V |
| Battery Splicing and Heating Cycles | Battery capacity: 5200mAh, Supports more than 220 cycles |
| Electrode Life | Single core |
| Electrode Rod Life | More than 3000 cycles (using professional cleaning tools can extend life by more than 20%) |
| CPU Frequency | 1.4GHz |
| Heating Furnace Supported Heat Shrink Tubes | 20/30/40/50/60mm |

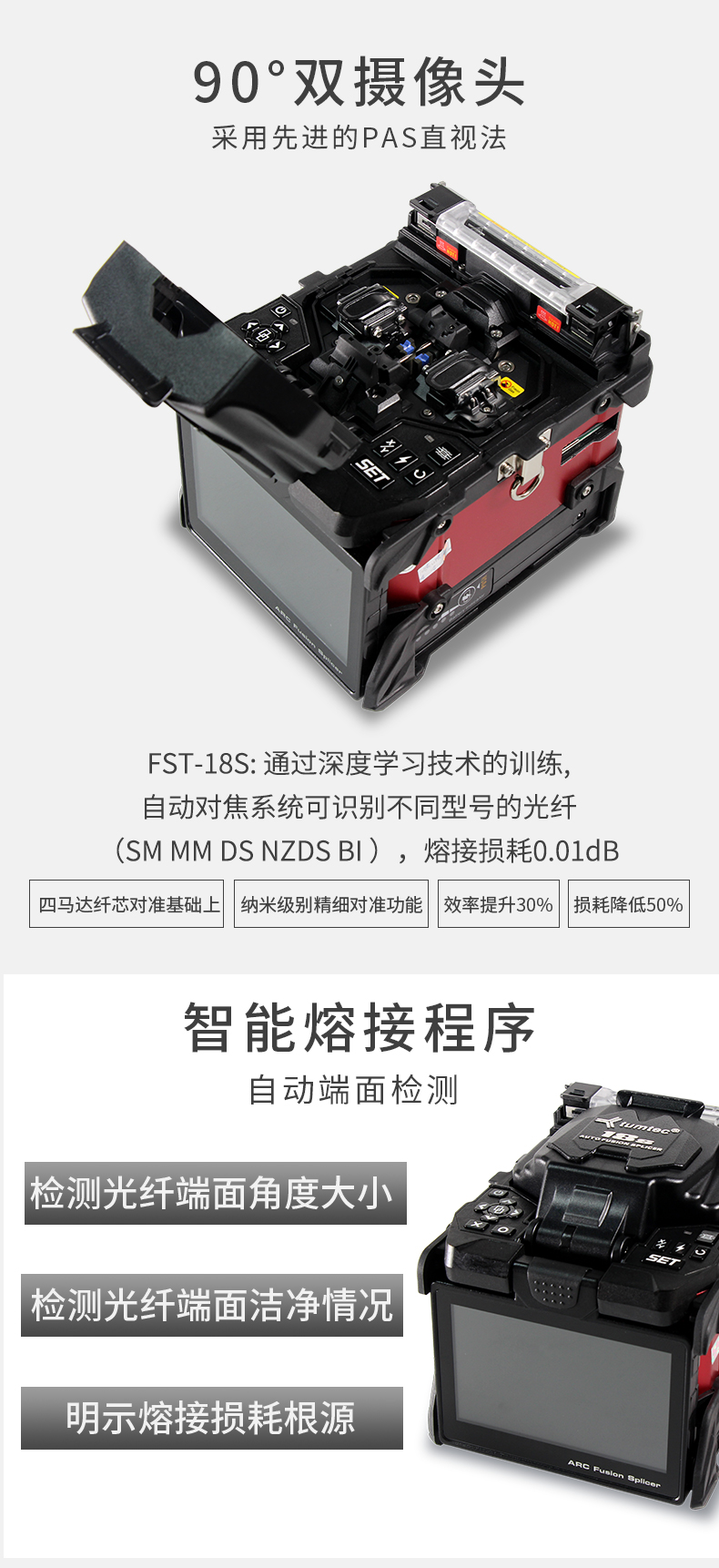

| Fiber Alignment Method | PAS direct vision |
| Fiber End Face Detection | Angle size |
| Fiber End Face Detection | cleanliness |

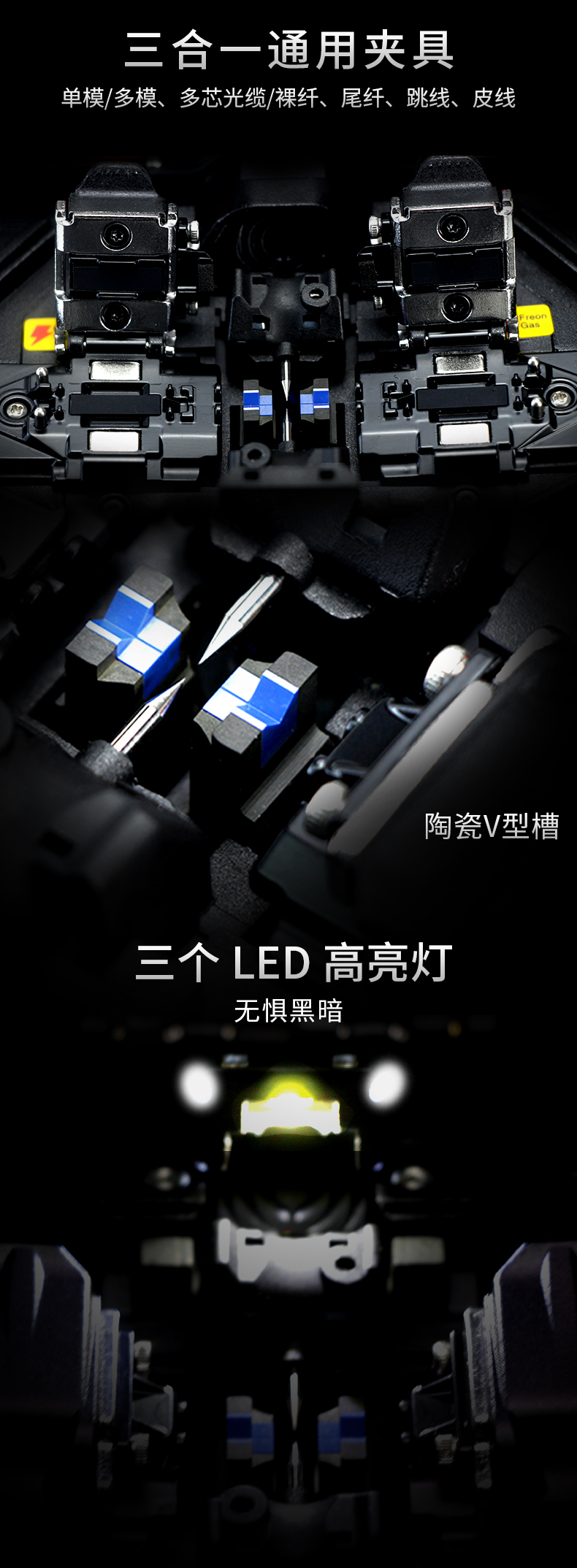

| Fiber Placement Tool | Ceramic V-groove |
| Illumination | 3 LED white lights |

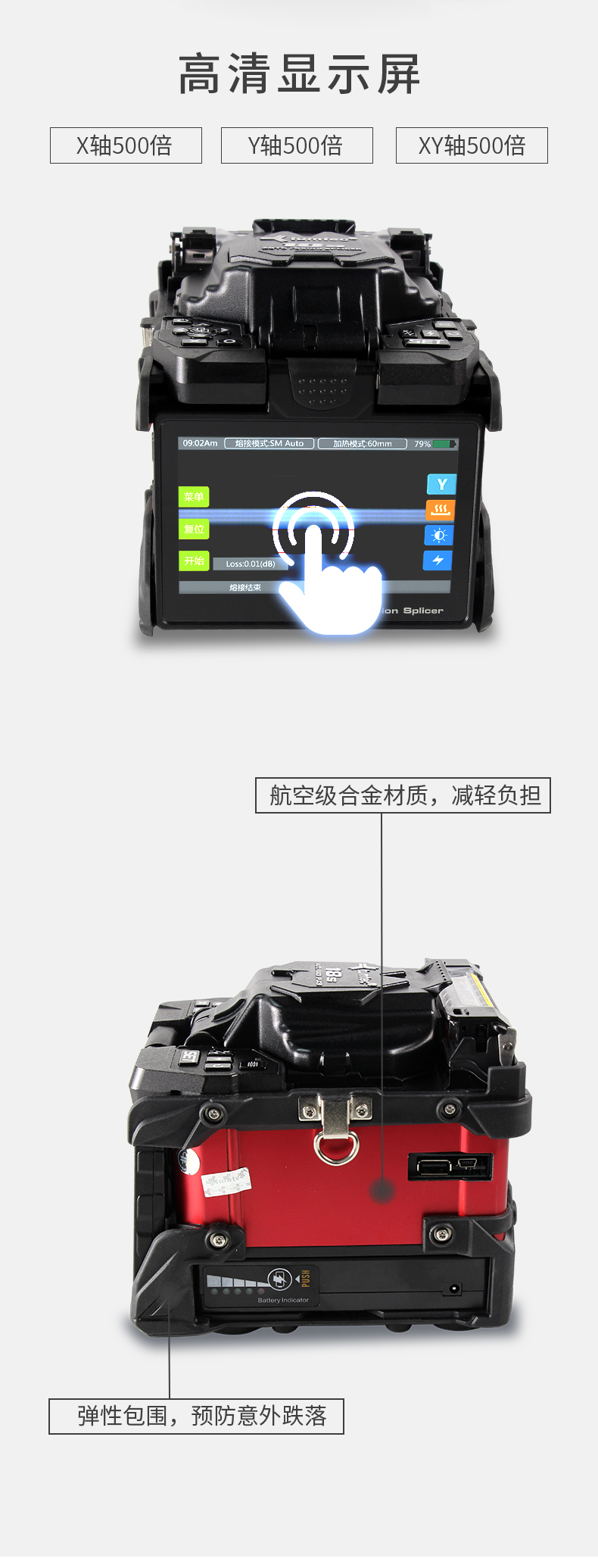

| Display Screen | 5.0-inch color touch screen |
| Material | Aerospace-grade alloy |
| Elastic Surround | Prevents accidental drops |
