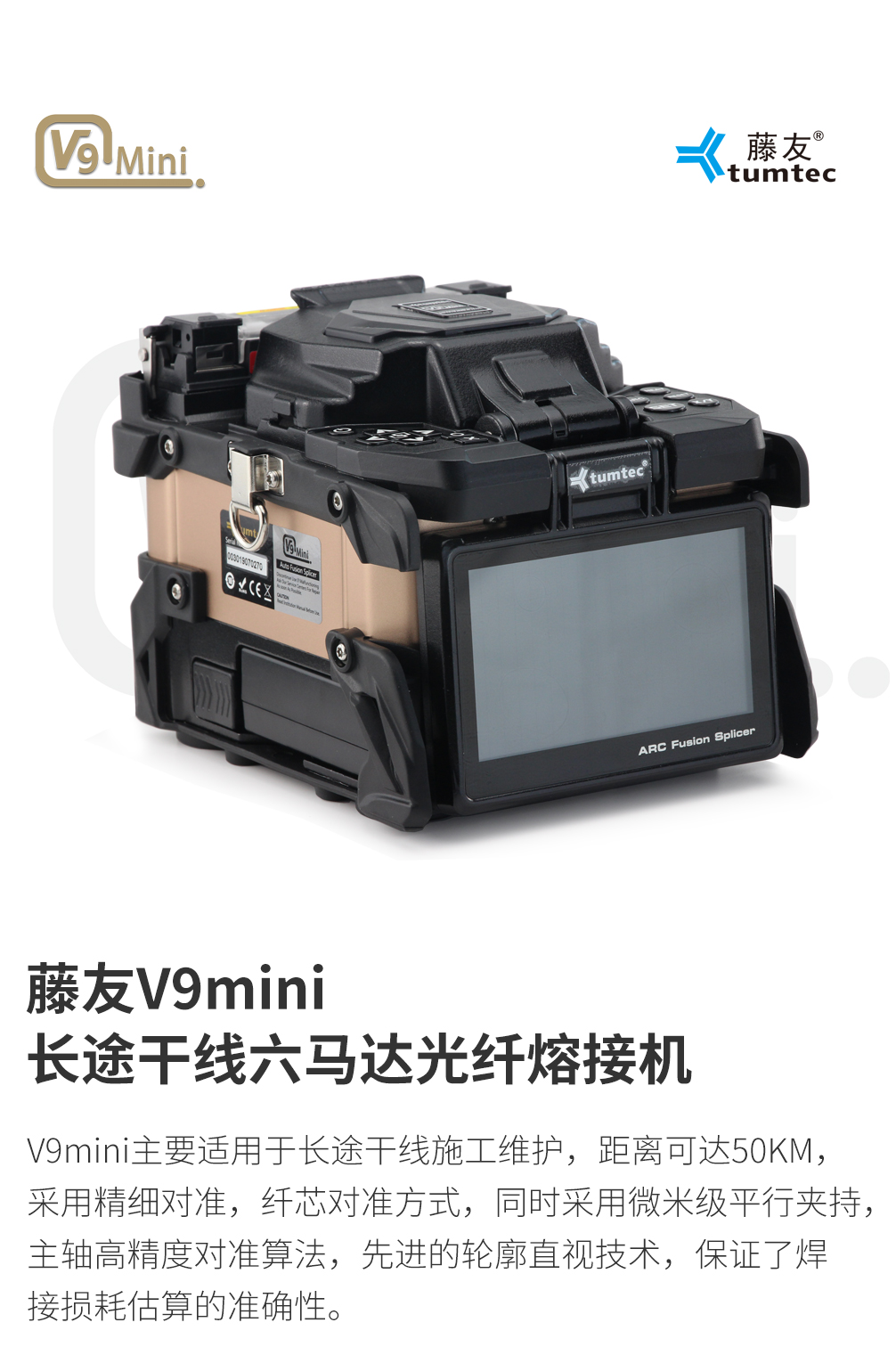

V9mini

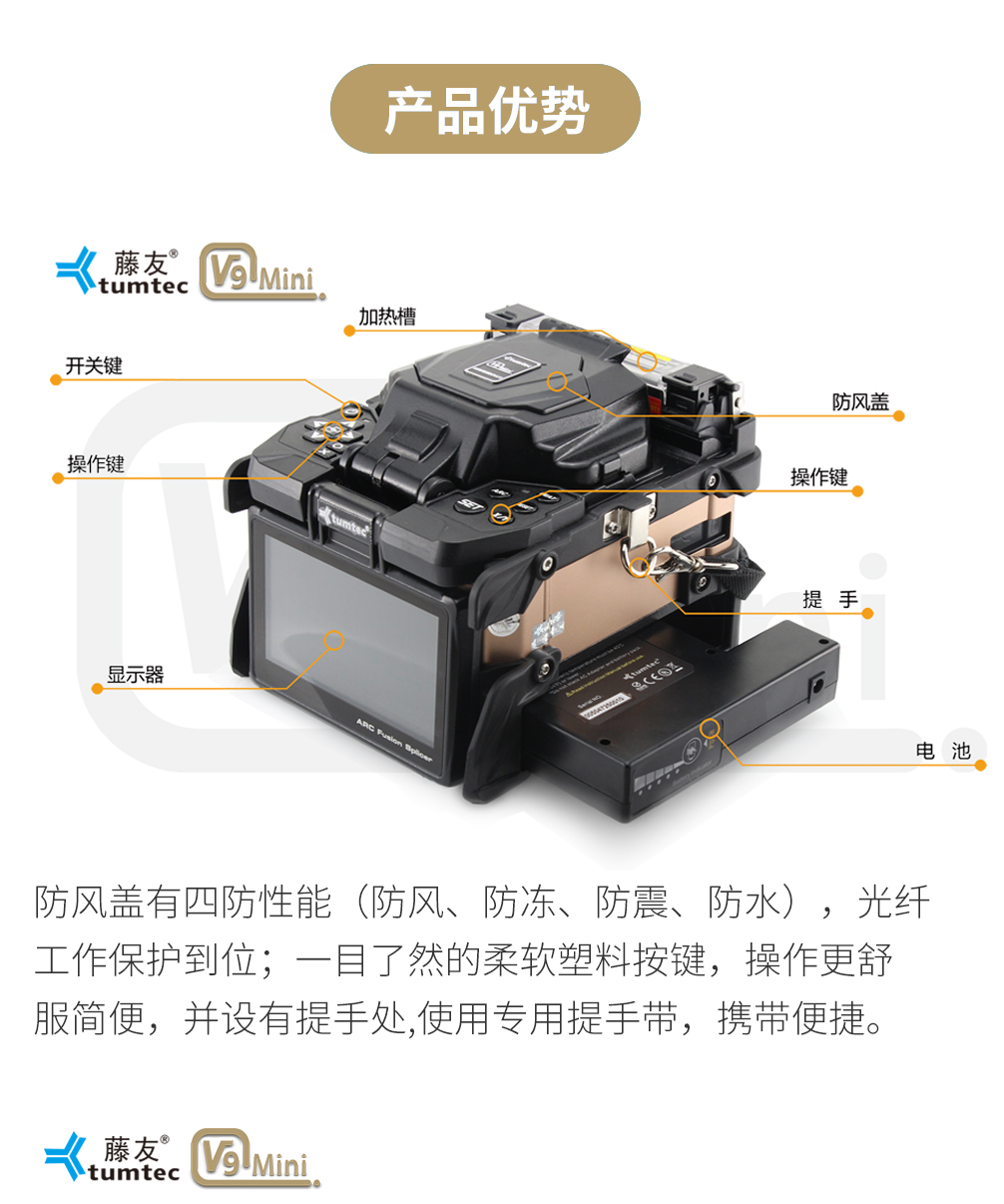

The V9mini is a compact and portable fiber fusion splicer designed for long-distance dry-line construction and maintenance. It features precise alignment, fiber core alignment, and advanced wheel direct-view technology to ensure accurate splicing loss estimation.
Save to Favorites
Overview
Specifications

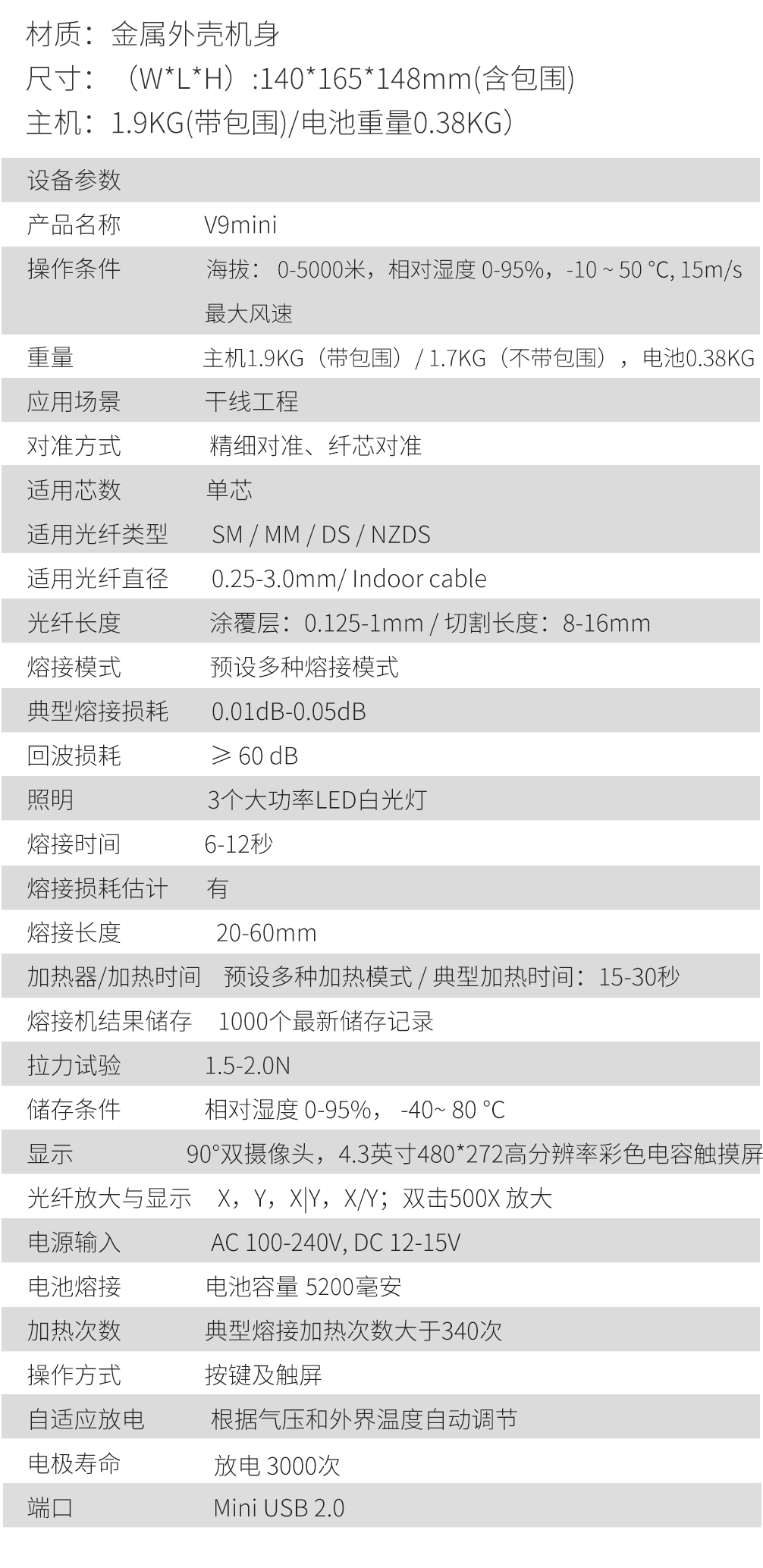

| Parameter | Value |
|---|---|
| Material | 金属外壳机身 |
| Dimensions (W*L*H) | 140*165*148mm (含包围) |
| Main Unit Weight | 1.9KG (带包围)/电池重量0.38KG |
| Operating Conditions | 海拔: 0-5000米, 相对湿度0-95%, -10~50°C, 15m/s最大风速 |
| Application Scenarios | 干线工程 |
| Alignment Method | 精细对准, 光纤芯对准 |
| Applicable Fiber Count | 单芯 |
| Applicable Fiber Type | SM/MM/DS/NZDS |
| Applicable Fiber Diameter | 0.25-3.0mm/Indoor cable |
| Fiber Length | 涂覆层: 0.125-1mm/切割长度: 8-16mm |
| Splicing Mode | 预设multiple种熔接模式 |
| Typical Splicing Loss | 0.01dB-0.05dB |
| Return Loss | ≥60dB |
| Illumination | 3 complete plans大功率LED白光灯 |
| Splicing Time | 6-12秒 |
| Splicing Loss Estimation | 有 |
| Splicing Length | 20-60mm |
| Heater/Heating Time | 预设multiple种加热模式/典型加热时间: 15-30秒 |
| Splicing Results Storage | 1000 complete plans最新存储记录 |
| Tensile Test | 1.5-2.0N |
| Storage Conditions | 相对湿度0-95%, -40~80°C |

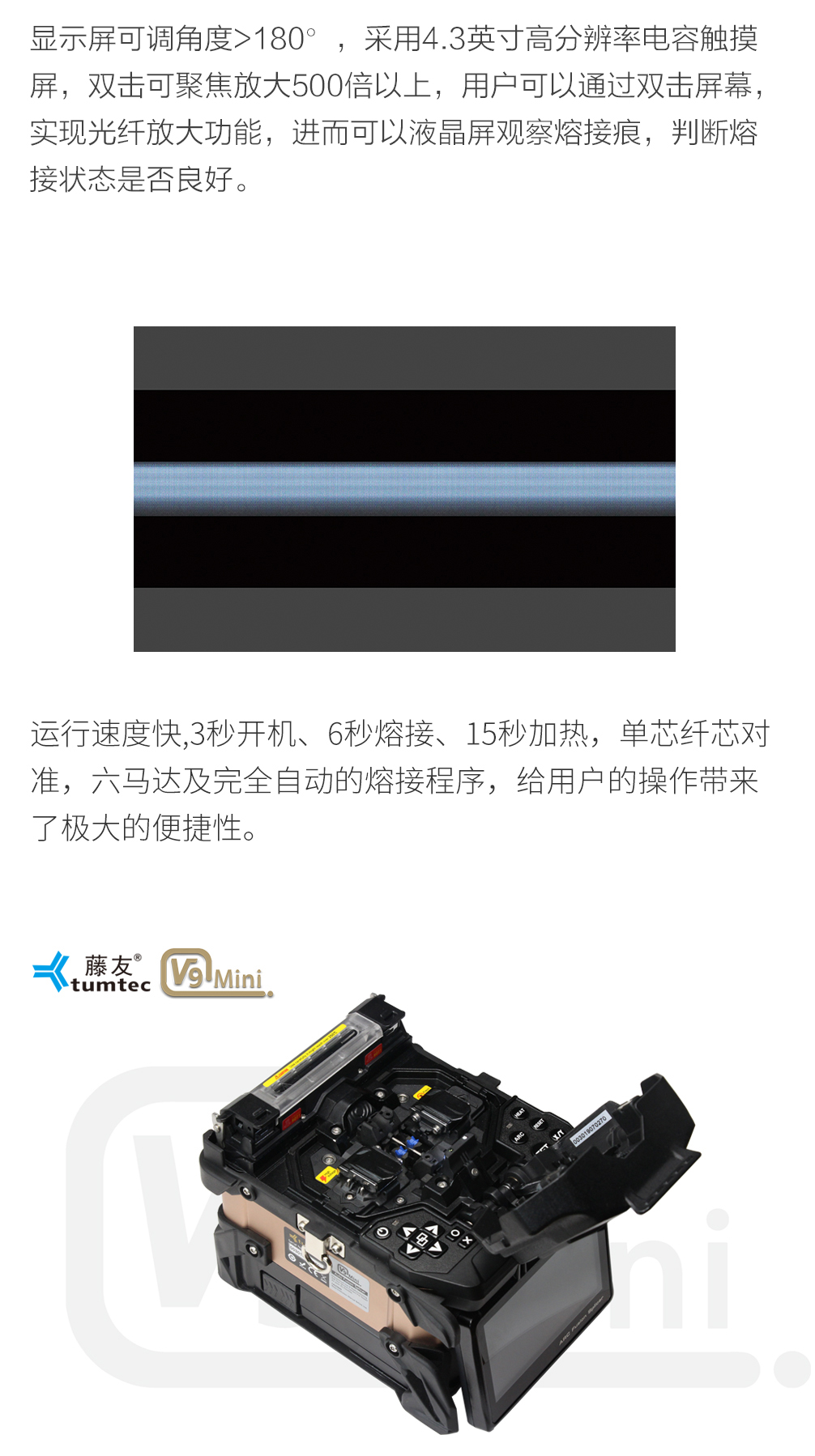

| Display | 90°双摄像头, 4.3英寸480*272高分辨率彩色电容触摸屏 |
| Fiber Magnification and Display | X, Y, X/Y, X/Y; 双击500X放大 |
| Power Input | AC 100-240V, DC 12-15V |
| Battery Splicing | 电池容量5200毫安 |
| Heating Cycles | 典型熔接加热次数大于340次 |
| Operation Method | 按键及触屏 |
| DC Response Voltage | 根据气压 and 外界温度自动调节 |
| Electrode Life | 放电3000次 |

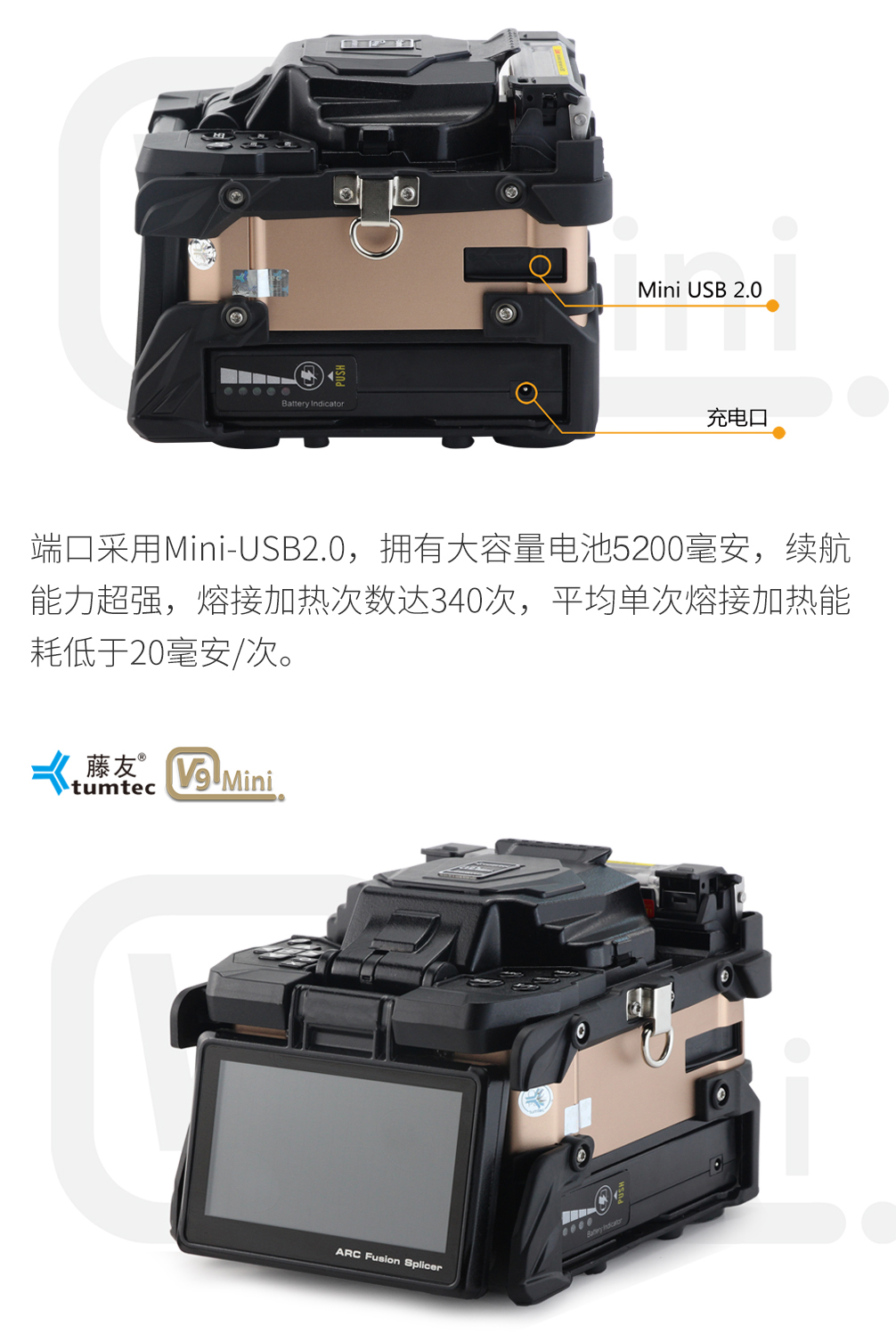

| Port | Mini USB 2.0 |
