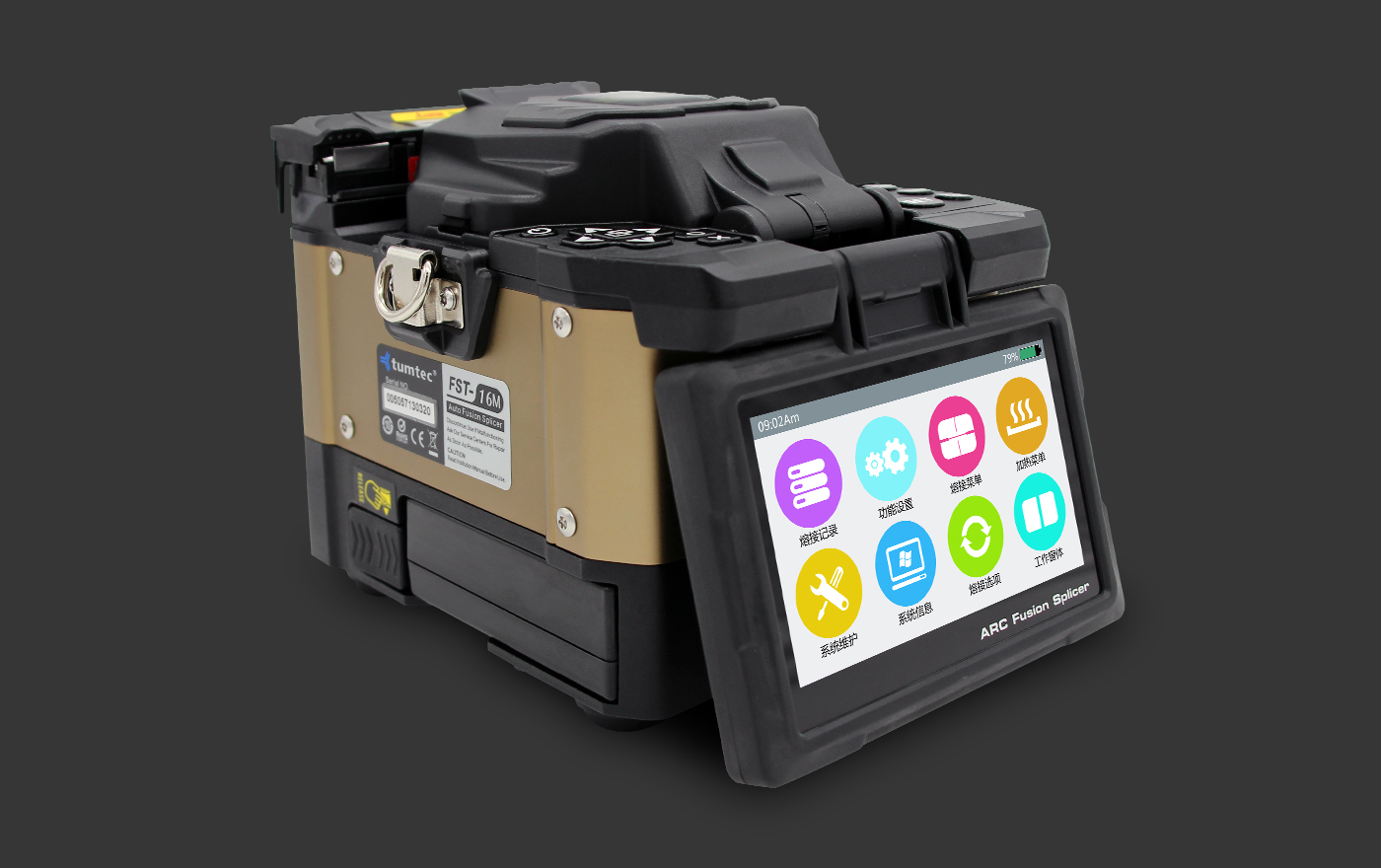

FST-16M
The Tumtec FST-16M is a high-performance fusion splicer designed for efficient and reliable fiber optic splicing. It features a robust alloy body and advanced technology for precise and fast splicing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Splicing Time | 6 seconds |
| Applicable Fiber Type | SM |
| Applicable Fiber Type | MM |
| Applicable Fiber Type | DS |
| Applicable Fiber Type | NZDS |
| Fiber Diameter | 125μm |
| Splice Loss | 0.02dB (SM), 0.01dB (MM) |
| Alignment Method | Core alignment |
| Screen Size | 5 inches |
| Battery Capacity | 5200mAh |
| Storage Temperature | -40°C to 80°C |
