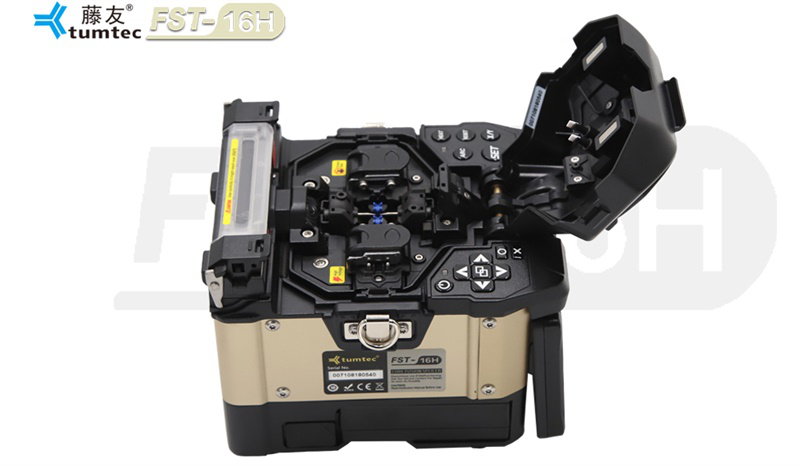

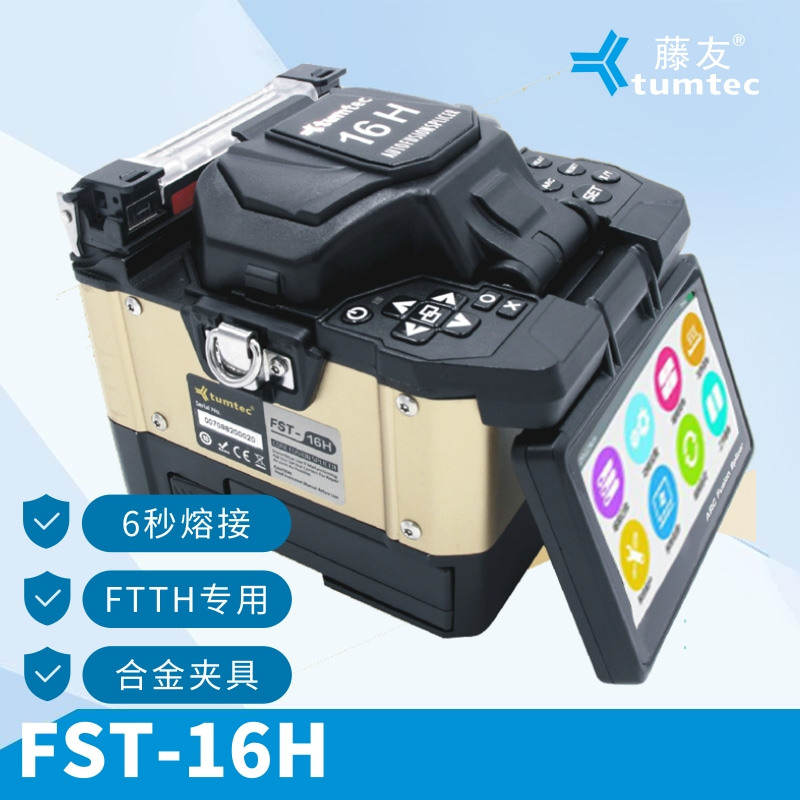

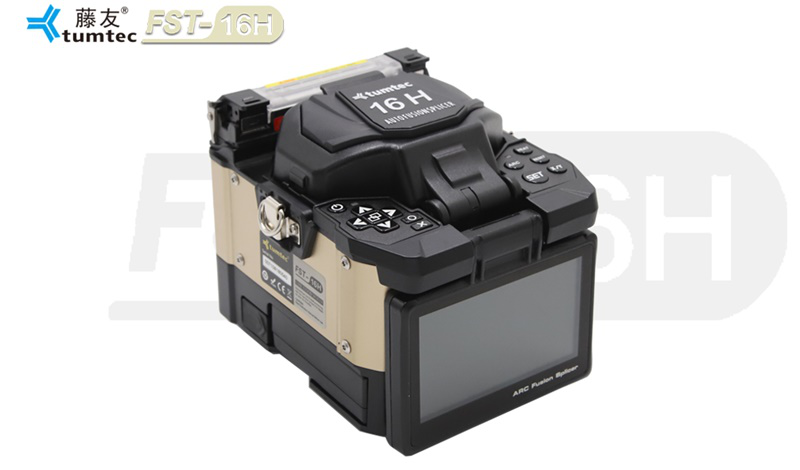

FST-16H

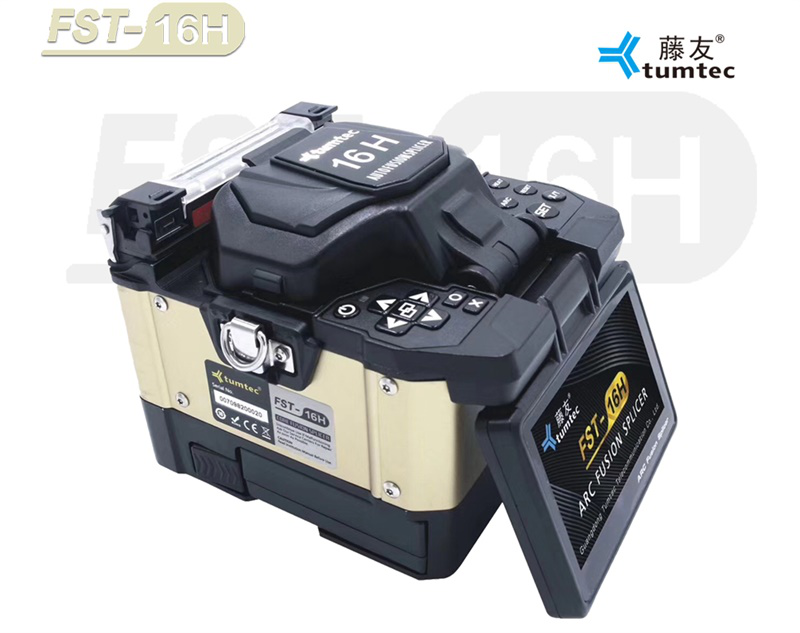

The Tumtec FST-16H is a high-performance fiber fusion splicer designed for FTTH applications, featuring a durable metal body and advanced splicing technology.
Save to Favorites
Overview

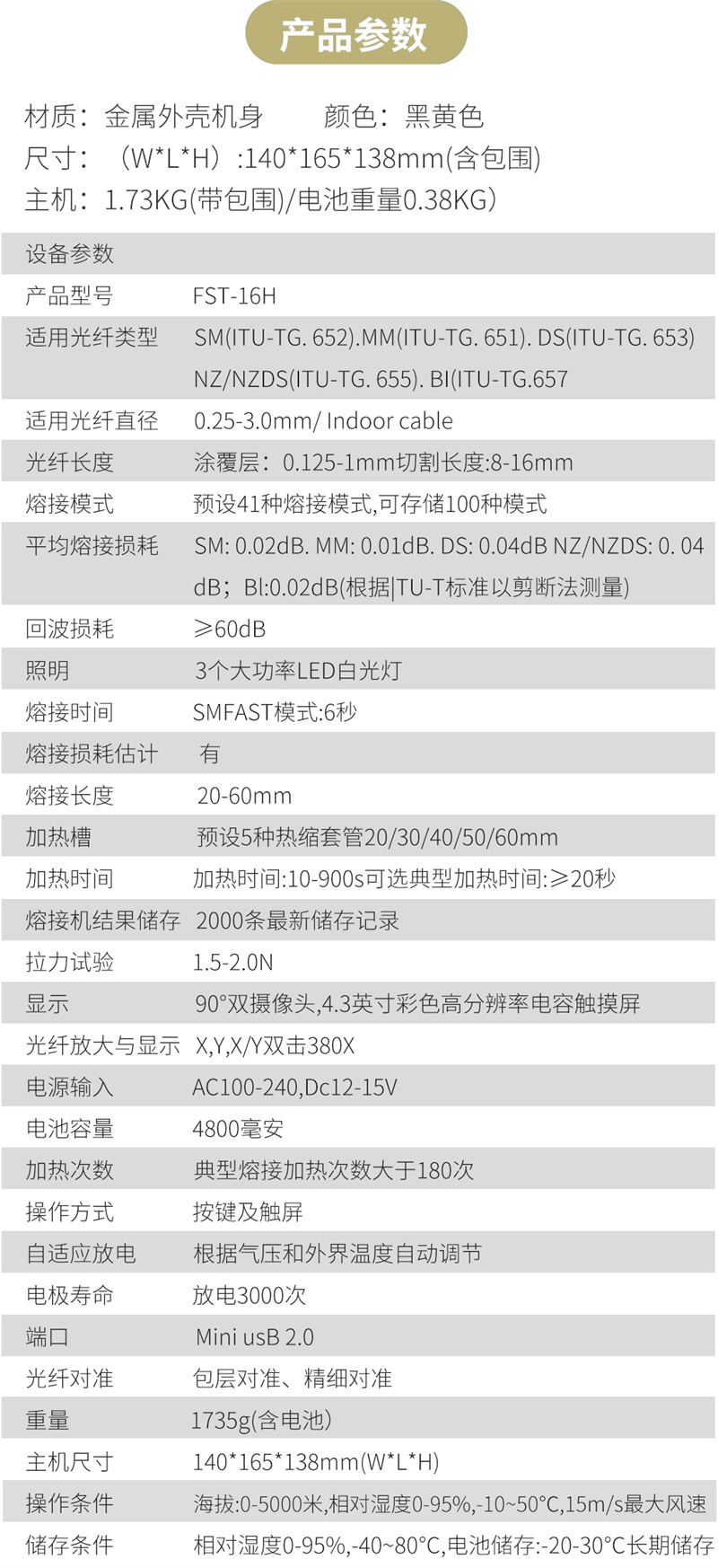

Specifications
| Parameter | Value |
|---|---|
| Material | 金属外壳机身 |
| Color | 黑黄色 |
| Dimensions (W*L*H) | 140*165*138mm(含包围) |
| Main Unit Weight | 1.73KG(带包围)/电池重量0.38KG |
| Product Model | FST-16H |
| Applicable Fiber Type | SM(ITU-TG.652), MM(ITU-TG.651), DS(ITU-TG.653), NZ/NZDS(ITU-TG.655), BI(ITU-TG.657) |
| Applicable Fiber Diameter | 0.25-3.0mm/Indoor cable |
| Fiber Length | 涂层:0.125-1mm切割长度:8-16mm |
| Splicing Mode | 预设41种熔接模式,可存储100种模式 |
| Average Splicing Loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB(根据ITU-T标准以剪断法测量) |
| Return Loss | ≥60dB |
| Illumination | 3 complete plans大功率LED白光灯 |
| Splicing Time | SMFAST模式:6秒 |
| Splicing Loss Estimation | 有 |
| Splicing Length | 20-60mm |
| Heating Slot | 预设5种热缩套管20/30/40/50/60mm |
| Heating Time | 10-900s可选典型加热时间:≥20秒 |
| Splicing Result Storage | 2000条最新存储记录 |
| Tensile Test | 1.5-2.0N |
| Display | 90°双摄像头,4.3英寸彩色高分辨率电容触摸屏 |
| Fiber Magnification and Display | X,Y,X/Y双击380X |
| Power Input | AC100-240,DC12-15V |
| Battery Capacity | 4800毫安 |
| Heating Cycles | 典型熔接加热次数大于180次 |
| Operation Mode | 按键及触屏 |
| Adaptive Power | 根据气压 and 外界温度自动调整 |
| Electrode Life | 放电3000次 |

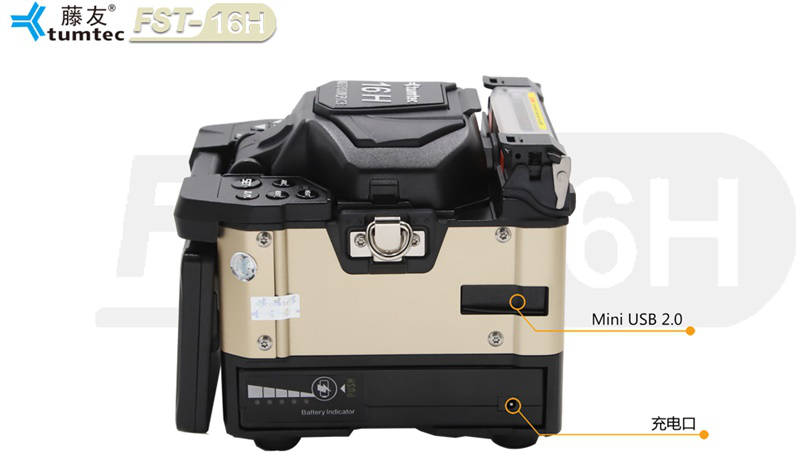

| Port | Mini USB 2.0 |
| Fiber Alignment | 包层对准,精细对准 |
| Weight | 1735g(含电池) |
| Main Unit Dimensions | 140*165*138mm(W*L*H) |
| Operating Conditions | 海拔0-5000米,相对湿度0-95%,-10~50°C,15m/s最大风速 |
| Storage Conditions | 相对湿度0-95%,-40~80°C,电池储存:-20~30°C长期储存 |
