Nano Drive
Nano Drive is a compact and modular multi-axis motor driver designed for precision control of pressure motors, stepper motors, BLDC motors, and DC motors. It supports up to six axes and offers advanced features such as ASCII command control, ladder speed planning, and compatibility with various programming environments.
Save to Favorites
Overview

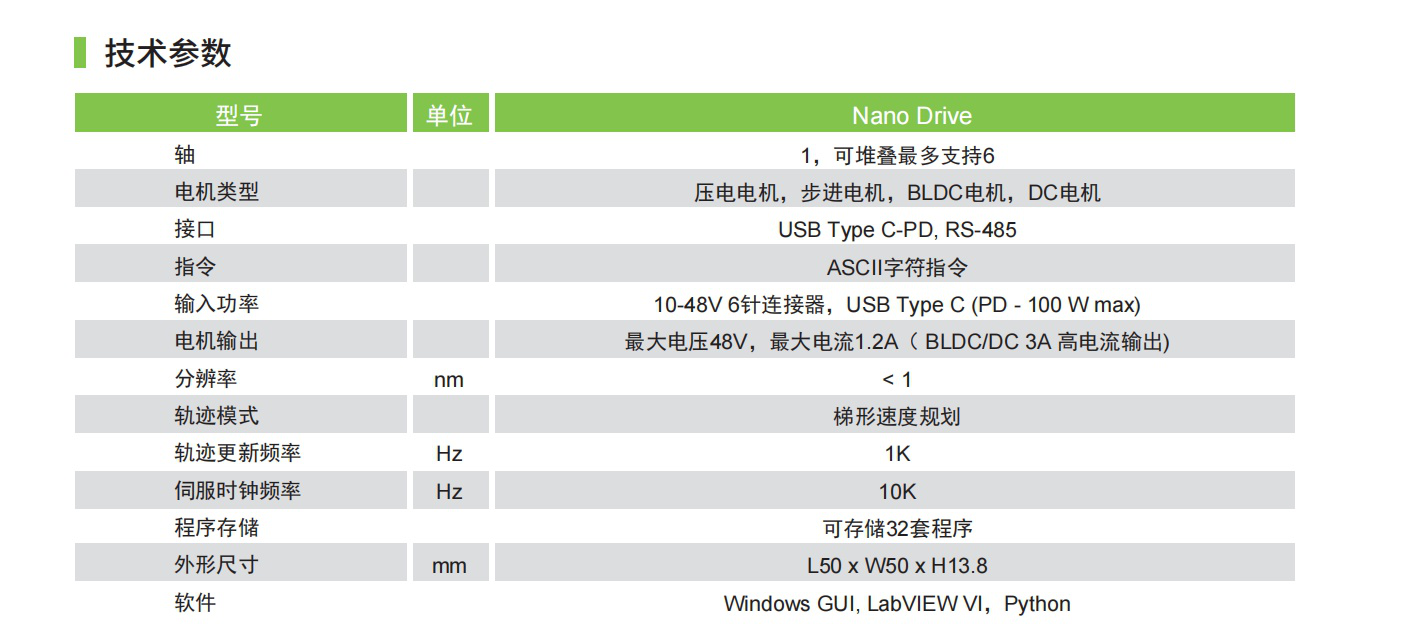

Specifications
| Parameter | Value |
|---|---|
| Axis | 1, up to 6 |
| Motor Type | Pressure motor |
| Motor Type | stepper motor |
| Motor Type | BLDC motor |
| Motor Type | DC motor |
| Command | ASCII command |
| Motor Output | Max voltage 48V, max current 1.2A (BLDC/DC 3A high current output) |
| Resolution | <1nm |
| Trajectory Mode | Ladder speed planning |
| Trajectory Update Frequency | 1KHz |
| Servo Clock Frequency | 10KHz |
| Software | Windows GUI |
| Software | LabVIEW VI |
| Software | Python |
