Fibre loop controller
IOM-601 is a light transmission link simulator; the equipment is used to construct a fibre-optic loop transmission system; and it solves the problem of the costly construction of long-range / ultra-long-range light transmission straight-line links at application sites such as laboratories. IOM-601 Implementation of a fibre-optic ring system structure based on acoustic modulus light switches and unique control of single metasystems; construction of a circular fibre-optic loop; user use of device
Save to Favorites
Overview

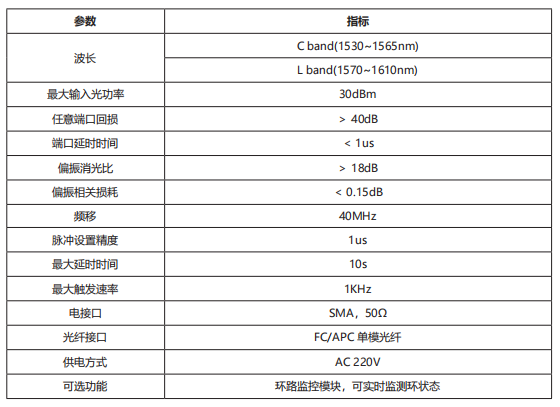

Specifications
| Parameter | Value |
|---|---|
| Wavelength | C band(1530~1565nm) |
| Maximum input power | 30dBm |
| Any port loss | ＞40dB |
| Port Delay | ＜1us |
| Distortion of light | ＞18dB |
| Distortion-related losses | ＜0.15dB |
| Frequent Move | 40MHz |
| Pulse setting accuracy | 1us |
| Maximum time delay | 10s |
| Maximum Trigger Rate | 1KHz |
| Electrical interface | SMA, 50Ω |
| Fibre interface | FC/APC single fibre-optic |
| Power supply | AC 220V |
| Optional Functions | Ring monitoring module, real time monitoring of ring state |
Datasheet
