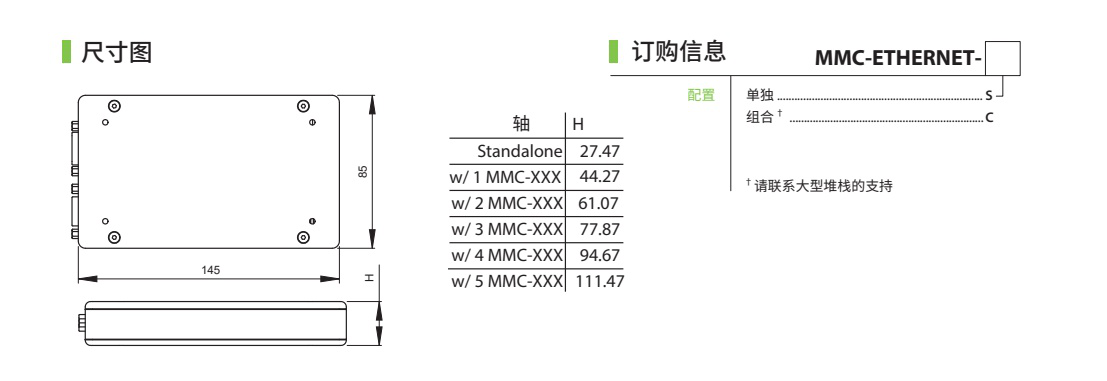

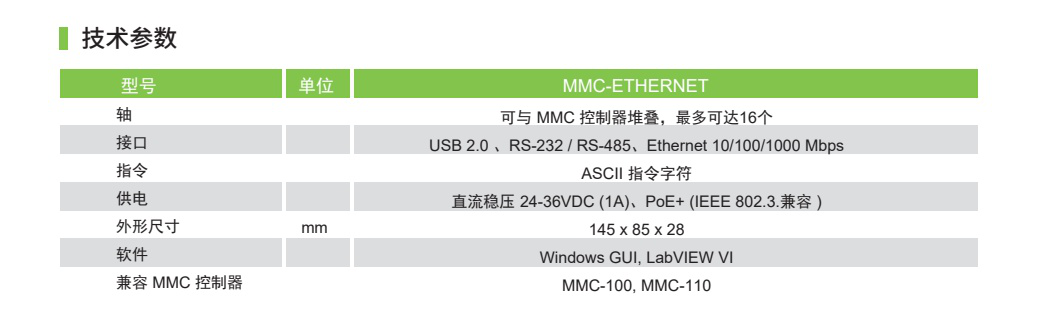

MMC-ETHERNET

Wavelength: C band(1530~1565nm) Maximum input power: 30dBm Any port loss: ＞40dB

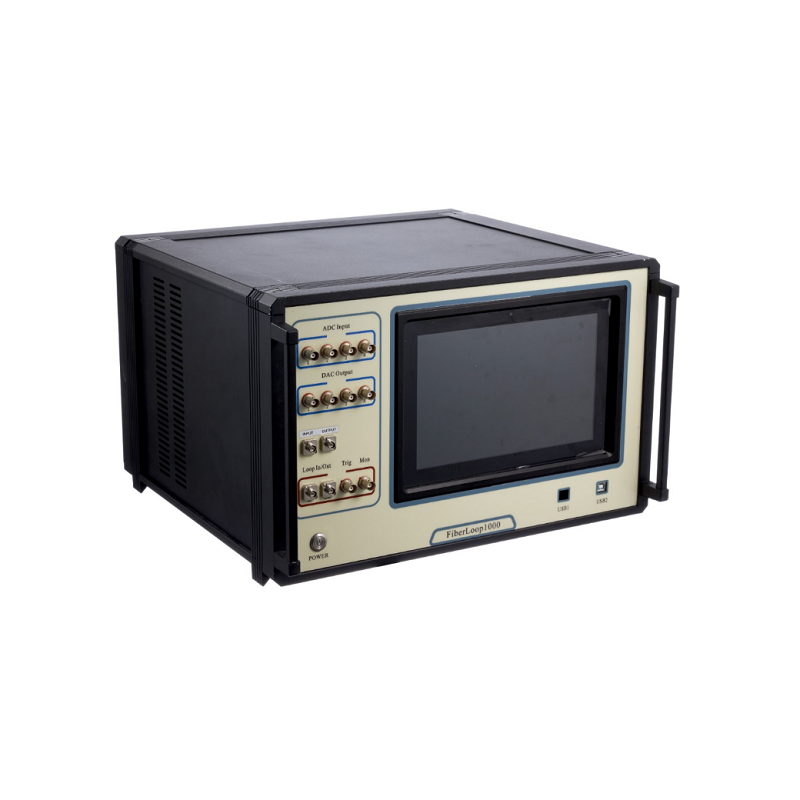

IOM-601 is a light transmission link simulator; the equipment is used to construct a fibre-optic loop transmission system; and it solves the problem of the costly construction of long-range / ultra-long-range light transmission straight-line links at application sites such as laboratories. IOM-601 Implementation of a fibre-optic ring system structure based on acoustic modulus light switches and unique control of single metasystems; construction of a circular fibre-optic loop; user use of device control units to specify the break time for the acoustic modulus light switch; light signal by setting a trigger signal to inform the receiving side to receive the user-defined length of the light transmission chain; user-defined long-range fibre-optic transmission links to transmit light signals

Lightning ratio: typ: MER1; max: 50dB Set Time: min: 03; typ: 25; max: 3

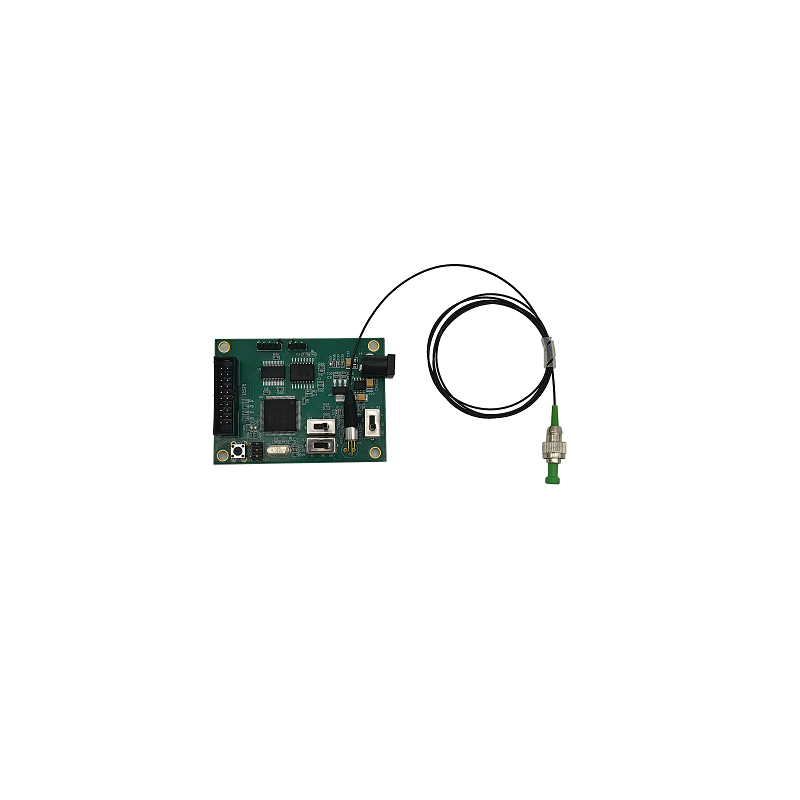

The bias controller is a device used to ensure that the modem operates in a stable manner in various operating environments. The controller injects low-frequency, low-intensity dithering signals into the modem with a bias voltage; reads constantly the output from the modem; determines the error in the modem ' s current and target state; is then based on the measurement results; imposes a compensatory bias on the transducer ' s Bias tube foot; and ensures that the modem works under the appropriate bias voltage. The controller is based on its fully digitized signal processing method; it provides ultra-stabilized performance; it is compact; it is fast and accurate to lock; and it is suitable for modern communication systems. Automatically fast locks on the double oscillation IQ modem to the modem supported by the offset voltage format; SSB, QPSK, QAM, OFDM I/Q; stabilizes to Null point, Peak point, ±Quad point; of which Null point wave suppresses to a maximum of 50dB P; stabilizes to Null point, Peak point, ± Quad point; of which ±Quad point accuracy < ±1° bias tracking and locking time < 3s small size; 41mm x 50 mm
